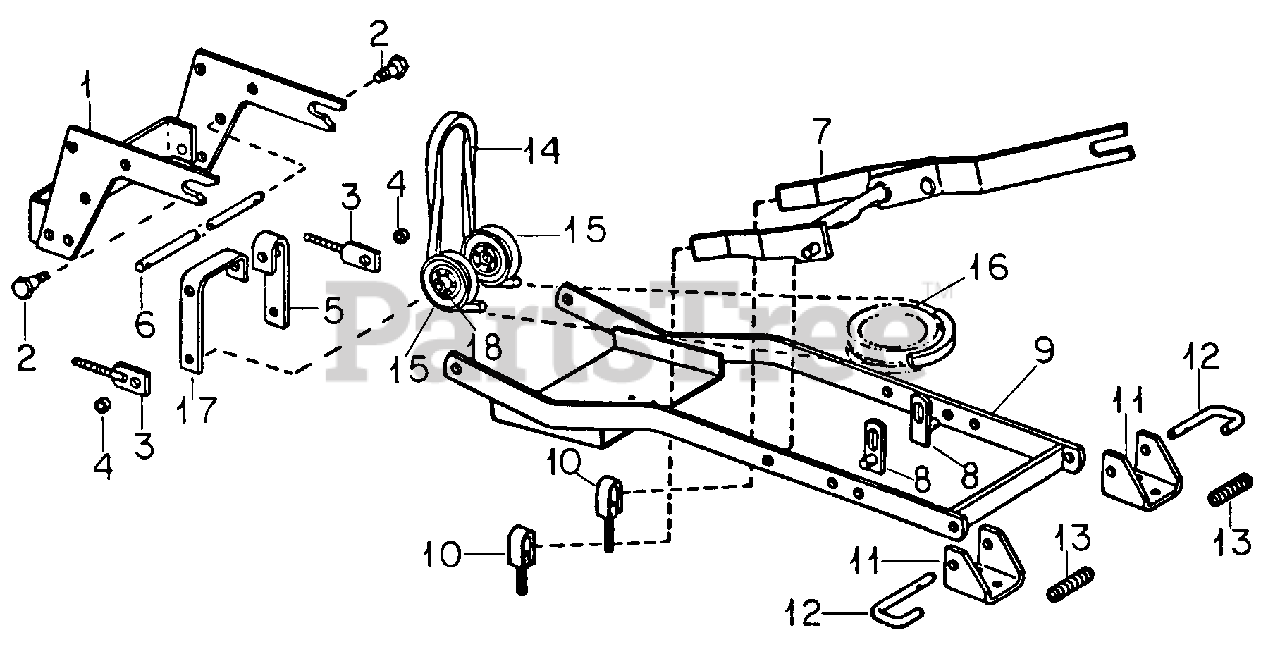

Accessory - Cub Cadet 38", 42", 48" Quick Attach Hitch 3 Spindle - Hitch Attachment - For S/N 400,000 Parts Diagram

38", 42", 48" Quick Attach Hitch

3 Spindle - Hitch Attachment - For S/N 400,000 Parts Diagram

  • Title

1

Cub Cadet 547-434-R2

Hanger Assy, Front

$

$

Currently unavailable

Cub Cadet 364-436-R1

Pin, 3/16 X 1 Hv Coiled Spring

$

$

Currently unavailable

2

Cub Cadet 489-374-R1

Bolt, Shoulder

$

$

Currently unavailable

Cub Cadet HI-120396

Washer, 17/32 X 1-1/16 X .095

$

$

Currently unavailable

3

Cub Cadet 489-375-R1

Bracket Assy, Idler Adj

$

$

Currently unavailable

4

Cub Cadet 489-378-R1

Spacer, Idler Adj

$

$

Currently unavailable

Cub Cadet 411-597-R1

Nut, 5/16-18 Nylon Insert

$

$

Currently unavailable

Cub Cadet IH-120393

Washer, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

5

Cub Cadet 489-602-R1

Support, Idler RH

$

$

Currently unavailable

6

Cub Cadet 547-435-R1

Rod, Front Mounting

$

$

Currently unavailable

Cub Cadet 473-443-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

Cub Cadet IH-137175

Pin, 3/32 X 1-1/8 C-Z Cotter
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 21-903-R1

Washer, 17/32 X 3/4 X 16

$

$

Currently unavailable

7

Cub Cadet 489-380-R2

Support Assy, Front Pivot Link

$

$

Currently unavailable

Cub Cadet IH-137175

Pin, 3/32 X 1-1/8 C-Z Cotter
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 178-373-R1

Washer, 17/32 X 1 X .065 C-Z

$

$

Currently unavailable

8

Cub Cadet 473-454-R92

Link Assy, Lift

$

$

Currently unavailable

Cub Cadet IH-137175

Pin, 3/32 X 1-1/8 C-Z Cotter
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 473-443-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

Cub Cadet HI-120396

Washer, 17/32 X 1-1/16 X .095 C-Z

$

$

Currently unavailable

9

Cub Cadet 490-467-R1

Arm Assy, Frame Side

$

$

Currently unavailable

10

Cub Cadet 489-384-R3

Link Assy, Mower Support

$

$

Currently unavailable

Cub Cadet IH-120238

Nut, 1/2-13 C-Z Hex

$

$

Not available

11

Cub Cadet 489-386-R2

Bracket, Mower Support

$

$

Currently unavailable

Cub Cadet 496-961-R1

Spacer, Mower Rear Support

$

$

Currently unavailable

12

Cub Cadet 489-387-R2

Pin, Mower Support

$

$

Currently unavailable

Cub Cadet 19-928-R1

Pin, 3/4 Hv Coiled Spring

$

$

Currently unavailable

Cub Cadet HI-120396

Washer, 17/32 X 1-1/16 C-Z

$

$

Currently unavailable

Cub Cadet 180-123

Screw, 3/8-16 X 1-3/8 Phc Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-120394

Washer, 17/32 X 13/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 489-388-R1

Spring, Mower Support Pin

$

$

Currently unavailable

14

Cub Cadet 490-489-R2

Belt, Mule Drive -38 In. Blade

$

$

Currently unavailable

Cub Cadet 490-489-R2

Belt, Mule Drive -42 In. Blade

$

$

Currently unavailable

Cub Cadet 489-397-R3

Belt, Mule Drive -48 In. Blade

$

$

Currently unavailable

15

Cub Cadet 493-164-R91

Pulley, Drive Belt Idler

$

$

Currently unavailable

Cub Cadet IH-180128

Screw, 3/8-16 X 1-3/4 C-Z Hex-Hd Cap
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 18-130-R1

Screw, 3/8-16 X 2 Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 18-253-R1

Nut, 3/8-16 Cad Nylon Insert

$

$

Currently unavailable

Cub Cadet IH-124829

Nut, 3/8-16 C-Z Hex Jam
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

16

Pulley, Center -Refer to Main Frame and Knife Units

$

$

Not available

Cub Cadet 491-961-R1

Spacer, Mower

$

$

Currently unavailable

17

Cub Cadet 489-601-R1

Support, Idler LH

$

$

Currently unavailable

18

Cub Cadet 542-122-R91

Bearing Assy, Idler Pulley

$

$

Currently unavailable
