38" Spindle Mower Drive

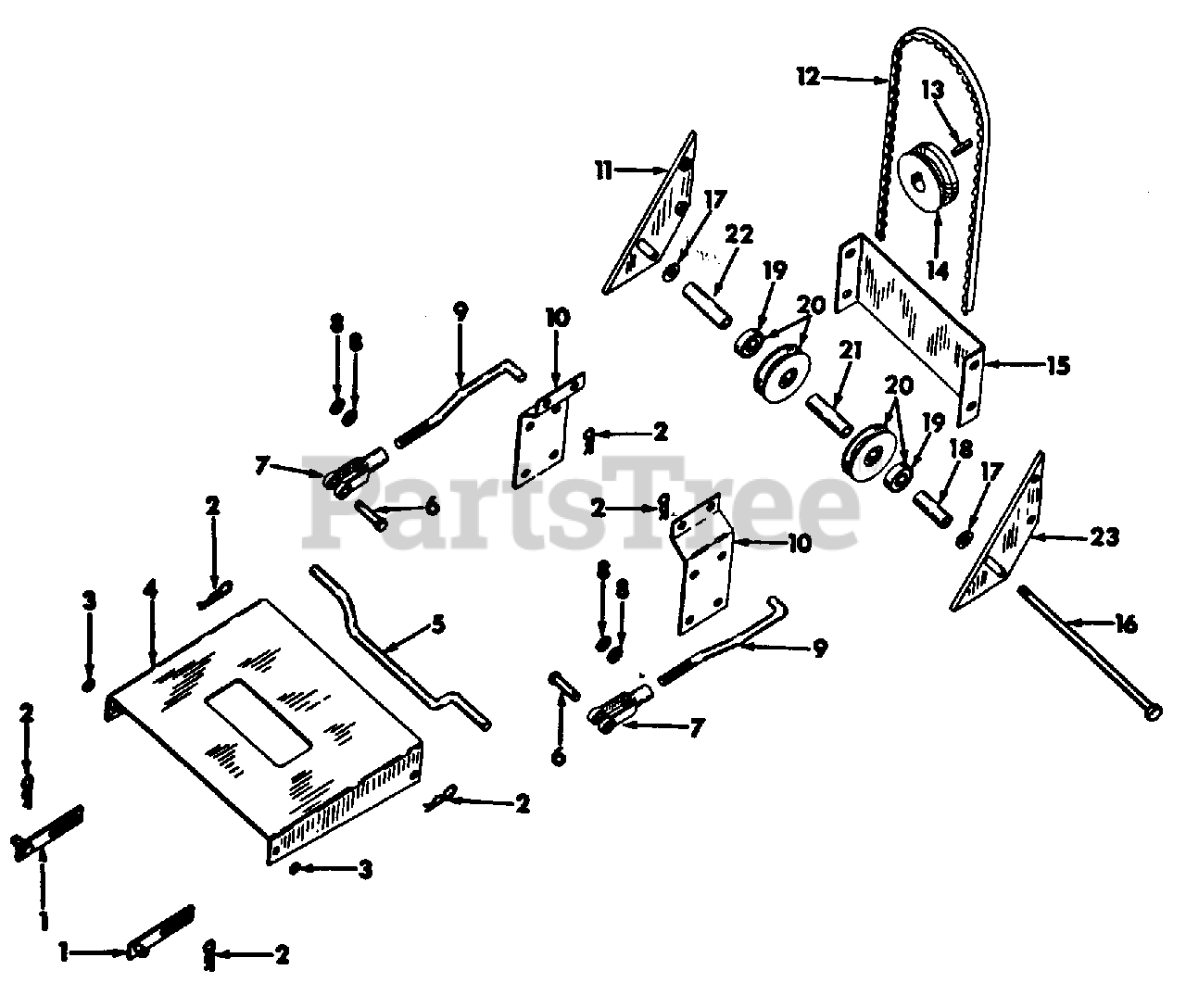

2 Spindle - Hitch & Drive Unit (Part 1) Parts Diagram

  • Title

1

Cub Cadet 464-513-R91

Link Assy, Lift

$

$

Currently unavailable

Cub Cadet 121-224

Pin, 3/32 X 1 C-Z Cotter

$

$

Currently unavailable

Cub Cadet 178-373-R1

Washer, 17/32 X 1 X 16 Ga C-Z

$

$

Currently unavailable

2

Cub Cadet 610-784-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

3

Cub Cadet 464-510-R1

Spacer

$

$

Currently unavailable

4

Cub Cadet 464-507-R91

Link Assy, Lower Parallel

$

$

Currently unavailable

Cub Cadet 19-417-R1

Bolt, 3/8 X 1 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X 16 Ga C-Z
(Superseded to 936-0140)

$

$

Not available

5

Cub Cadet 464-511-R1

Rod, Lower Link Pivot

$

$

Currently unavailable

Cub Cadet 178-373-R1

Washer, 17/32 X 1 X 16 Ga C-Z

$

$

Currently unavailable

6

Cub Cadet IH-114787

Pin, Rod End Clevis

$

$

Not available

Cub Cadet IH-137185

Pin, 1/8 X 1 C-Z Cotter
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 104-039

Clevis, Rod End 1/2-20

$

$

Currently unavailable

8

Cub Cadet 27-927-DA

Washer, 17/32 X 7/8 X 8 Ga

$

$

Currently unavailable

9

Cub Cadet 464-512-R1

Rod, Upper Link

$

$

Currently unavailable

Cub Cadet IH-124934

Nut, 1/2-20 Hex Jam
(Superseded to 712-3029)

$6.49

$

In Stock, Qty 8

0

Cub Cadet 178-373-R1

Washer, 17/32 X 1 X 16 Ga C-Z

$

$

Currently unavailable

10

Cub Cadet 464-509-R1

Strip, Upper Parallel Link

$

$

Currently unavailable

Cub Cadet 17-433-R1

Bolt, 1/2-13 X 1 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet IH-120378

Nut, 1/2-13 C-Z Hex
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120384

Washer, 1/2 C-Z Med Lock
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 465-057-R91

Support Assy, Tightener LH

$

$

Currently unavailable

Cub Cadet IH-180128

Screw, 3/8-16 X 1-3/4 C-Z Hex-Hd Cap
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet 464-362-R1

Belt, Drive

$

$

Currently unavailable

13

Cub Cadet Q-53

Key, 1/4 Sq X 1 Parallel

$

$

Currently unavailable

14

Cub Cadet 464-358-R1

Pulley, Engine

$

$

Currently unavailable

Cub Cadet 102-569

Screw, 1/4 X 1/4 Cup-Pt Hex-Soc Set
(Superseded to 690-200-0009)

$

$

Not available

Cub Cadet 222-386

Screw, 1/4 X 1/4 Flat Pt Hex-Soc Set

$

$

Currently unavailable

15

Cub Cadet 464-364-R1

Shield, Front Pulley

$

$

Currently unavailable

16

Cub Cadet 18-030-R1

Bolt, 5/8-11 X 10 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet 124-589

Nut, 5/8-11 C-Z Hex

$

$

Currently unavailable

Cub Cadet IH-121574

Washer, 5/8 C-Z Med Lock
(Superseded to 936-0158)

$4.49

$

In Stock, Qty 15

0

17

Cub Cadet 12-258-R1

Washer, 21/32 X 1-1/4 Ga

$

$

Currently unavailable

18

Cub Cadet 464-360-R1

Spacer, Right Idler

$

$

Currently unavailable

19

Cub Cadet 588-825-R91

Bearing, Pulley Ball

$

$

Currently unavailable

20

Cub Cadet 464-352-R91

Pulley Assy, Tightener

$

$

Currently unavailable

21

Cub Cadet 464-363-R1

Spacer, Center Idler

$

$

Currently unavailable

22

Cub Cadet 464-361-R1

Spacer, Left Idler

$

$

Currently unavailable

23

Cub Cadet 465-058-R91

Support Assy, Tightener RH

$

$

Currently unavailable

Cub Cadet 120-128

Screw, 3/8-16 X 1-3/4 C-Z Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0
