Accessory - Cub Cadet 40" Box Scraper 40 Box Scraper - Scraper Box & Related Parts Parts Diagram

40" Box Scraper

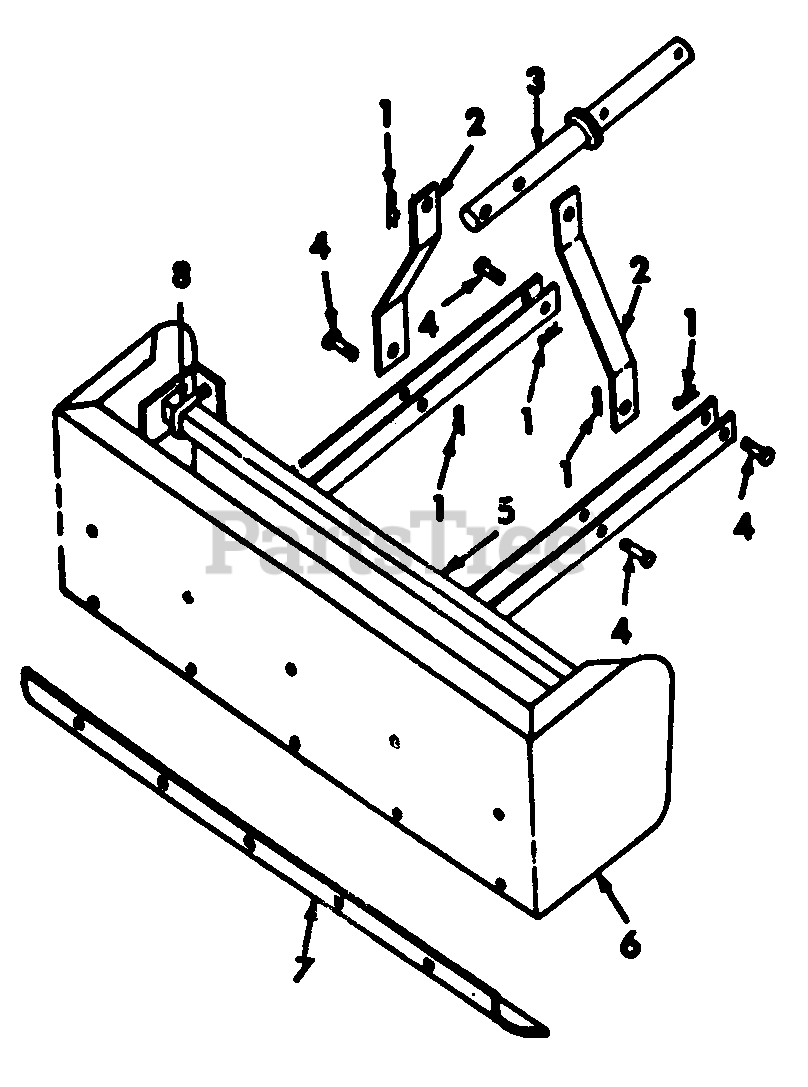

40 Box Scraper - Scraper Box & Related Parts Parts Diagram

  • Title

1

Cub Cadet 964-473-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

2

Cub Cadet 964-398-R1

Bar, Lift Link

$

$

Currently unavailable

3

Cub Cadet 473-325-R11

Pin Assy, Hitch Lift

$

$

Currently unavailable

Cub Cadet NA-141

Pin, 1/2 X 1-7/8 Std-Hd

$

$

Currently unavailable

Cub Cadet 103-402

Pin, 5/32 X 2-1/2 Cotter

$

$

Currently unavailable

4

Cub Cadet Q-1-332

Pin, 1/2 X 1-1/8 Std-Hd

$

$

Currently unavailable

5

Cub Cadet 964-382-R91

Lift Link Assy

$

$

Currently unavailable

6

Cub Cadet 964-326-R11

Bucket Assy

$

$

Currently unavailable

7

Cub Cadet 964-470-R1

Blade

$

$

Currently unavailable

Cub Cadet 18-404-R1

Bolt, 1/4-20 X 5/8 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet 18-655-R1

Screw, 1/4-20 X 1 C-Z Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-120380

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

Cub Cadet IH-120375

Nut, 1/4-20 C-Z Hex
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 964-399-R1

U-Bolt

$

$

Currently unavailable

Cub Cadet 103-320

Washer, 5/16 Med Lock

$

$

Currently unavailable

Cub Cadet IH-102634

Nut, 5/16-18 Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
