41" Rear Rake

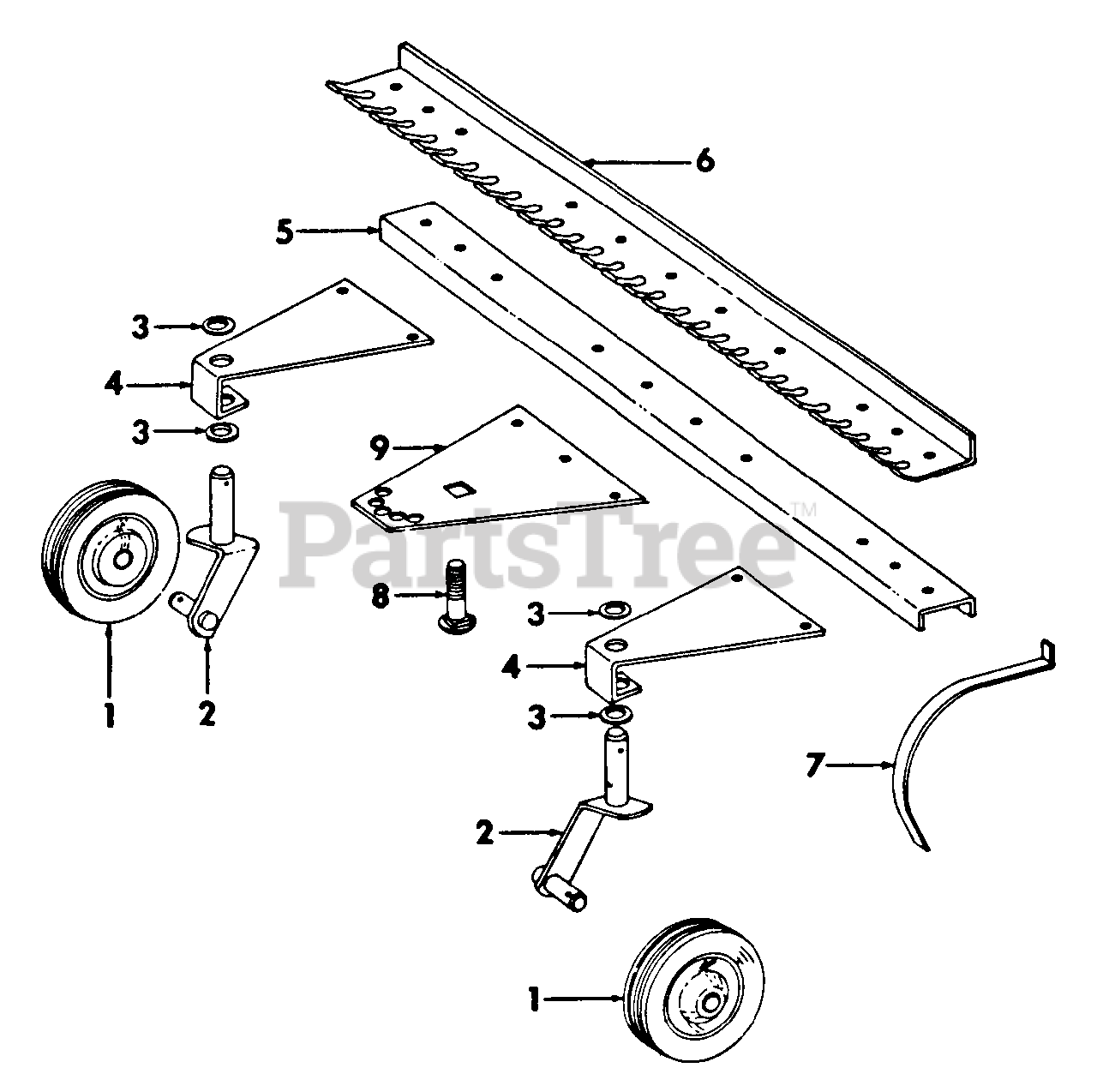

Rake and Connections Parts Diagram

  • Title

1

Cub Cadet IH-479427-R91

WHEEL ASSY, GAGE

$

$

Not available

2

473337-R91

CARRIER ASSY, RAKE GAGE WHEEL

$

$

Not available

120123

PIN, 1/8 x 1-1/4 C-Z COTTER

$

$

Not available

Cub Cadet IH-520175-R1

PIN, QUICK ATTACHABLE COTTER

$

$

Not available

Cub Cadet IH-120396

WASHER, 17/32 x 1-1/16 x .095 C-Z
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

3

131018

WASHER, 15/16 x 1-3/4 x .134 C-Z

Note: GAGE WHEEL HEIGHT ADJUSTING WASHER-

$

$

Not available

4

473336-R1

BRACKET, GAGE WHEEL

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

180134

SCREW, 3/8-16 x 2-1/2 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

5

473333-R1

CHANNEL, TOOTH ATTACHING

$

$

Not available

Cub Cadet 120377

NUT, 3/8-16 C-Z HEX.

$

$

Currently unavailable

Cub Cadet 180132

SCREW, 3/8-16 x 2-1/4 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

6

473335-R1

GUIDE, TOOTH ATTACHING

$

$

Not available

7

473334-R1

TOOTH, TILLER RAKE

$

$

Not available

8

475433-R1

BOLT, 7/8-9 x 3-1/2 C-Z DRD SQ-NK CRG

$

$

Not available

427643

NUT, 7/8-9 C-Z HEX.

$

$

Not available

20703-R1

WASHER, 29/32 x 1-3/4 x 16 GA C-Z

$

$

Not available

9

473332-R1

PLATE, RAKE ADJUSTING

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

180134

SCREW, 3/8-16 x 2-1/2 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0
