Accessory - Cub Cadet 41" Rear Rake Rear Rake -41"- Hitch & Main Frame Parts Diagram

41" Rear Rake

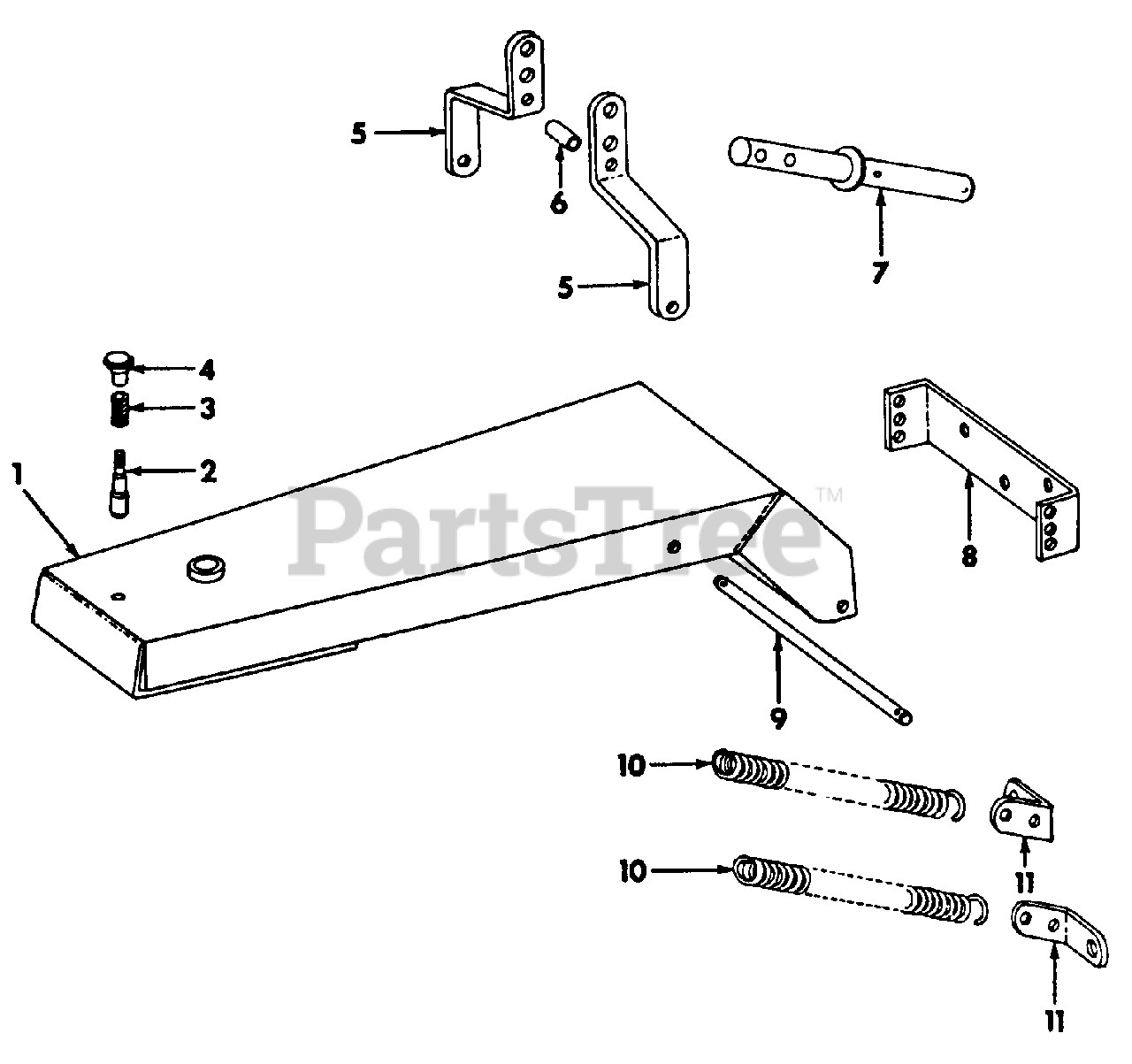

Rear Rake -41"- Hitch & Main Frame Parts Diagram

  • Title

1

Cub Cadet 473-310-R91

Frame Assy, Main

$

$

Currently unavailable

2

Cub Cadet 473-319-R1

Pin, Pivot

$

$

Currently unavailable

Cub Cadet 20-703-R1

Washer, 29/32 X 1-3/4 X 16 Ga C-z

$

$

Currently unavailable

Cub Cadet 137-214

Pin, 1/8 X 1-3/4 C-Z Cotter

$

$

Currently unavailable

Cub Cadet 427-643

Nut, 7/8-9 C-Z Hex

$

$

Currently unavailable

3

Cub Cadet 1-160-G

Spring, Pivot Pin

$

$

Currently unavailable

4

Cub Cadet 473-317-R1

Knob, Pivot Pin

$

$

Currently unavailable

5

Cub Cadet 473-320-R1

Bracket, Hitch

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet NA-141

Pin, 1/2 X 1-7/8 Std-Hd

$

$

Currently unavailable

Cub Cadet 520-175-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

Cub Cadet IH-180130

Screw, 3/8-16 X 2 C-Z Hex-Hd Cap
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 473-321-R1

Spacer, Lift Link

$

$

Currently unavailable

7

Cub Cadet 473-325-R11

Pin Assy, Hitch Lift

$

$

Currently unavailable

Cub Cadet 137-243

Pin, 1/8 X 1-1/2 Cotter

$

$

Currently unavailable

Cub Cadet Q-3-480

Washer, 1-1/32 X 1-1/2 X 11 Ga

$

$

Currently unavailable

Cub Cadet Q-3-481

Washer, 1-1/32 X 1-1/2 X 16 Ga

$

$

Currently unavailable

Cub Cadet IH-180126

Screw, 3/8-16 X 1-1/2 C-Z Hex-Hd Cap
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 473-324-R1

Channel, Hitch Mount

$

$

Currently unavailable

Cub Cadet D-3-373

Pin, 1/2 X 1-1/2 Std-Hd

$

$

Currently unavailable

Cub Cadet 520-175-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

9

Cub Cadet 473-322-R1

Rod, Lift

$

$

Currently unavailable

Cub Cadet 137-218

Pin, 5/32 X 1-1/4 C-Z Cotter

$

$

Currently unavailable

Cub Cadet HI-120396

Washer, 17/32 X 1-1/16 X .095 C-Z

$

$

Currently unavailable

10

Cub Cadet 23-331-SA

Spring, Lifting

$

$

Currently unavailable

11

Cub Cadet 473-323-R1

Angle, Spring Attaching

$

$

Currently unavailable

Cub Cadet IH-180124

Screw, 3/8-16 X 1-1/4 C-Z Hex-Hd Cap
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 180-134

Screw, 3/8-16 X 2-1/2 C-Z Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet 2752-019-R1

Product Graphic, IH -In center on top of main frame

$

$

Currently unavailable
