Accessory - Cub Cadet 41" Rear Rake Rear Rake -41"- Rake & Connections Parts Diagram

41" Rear Rake

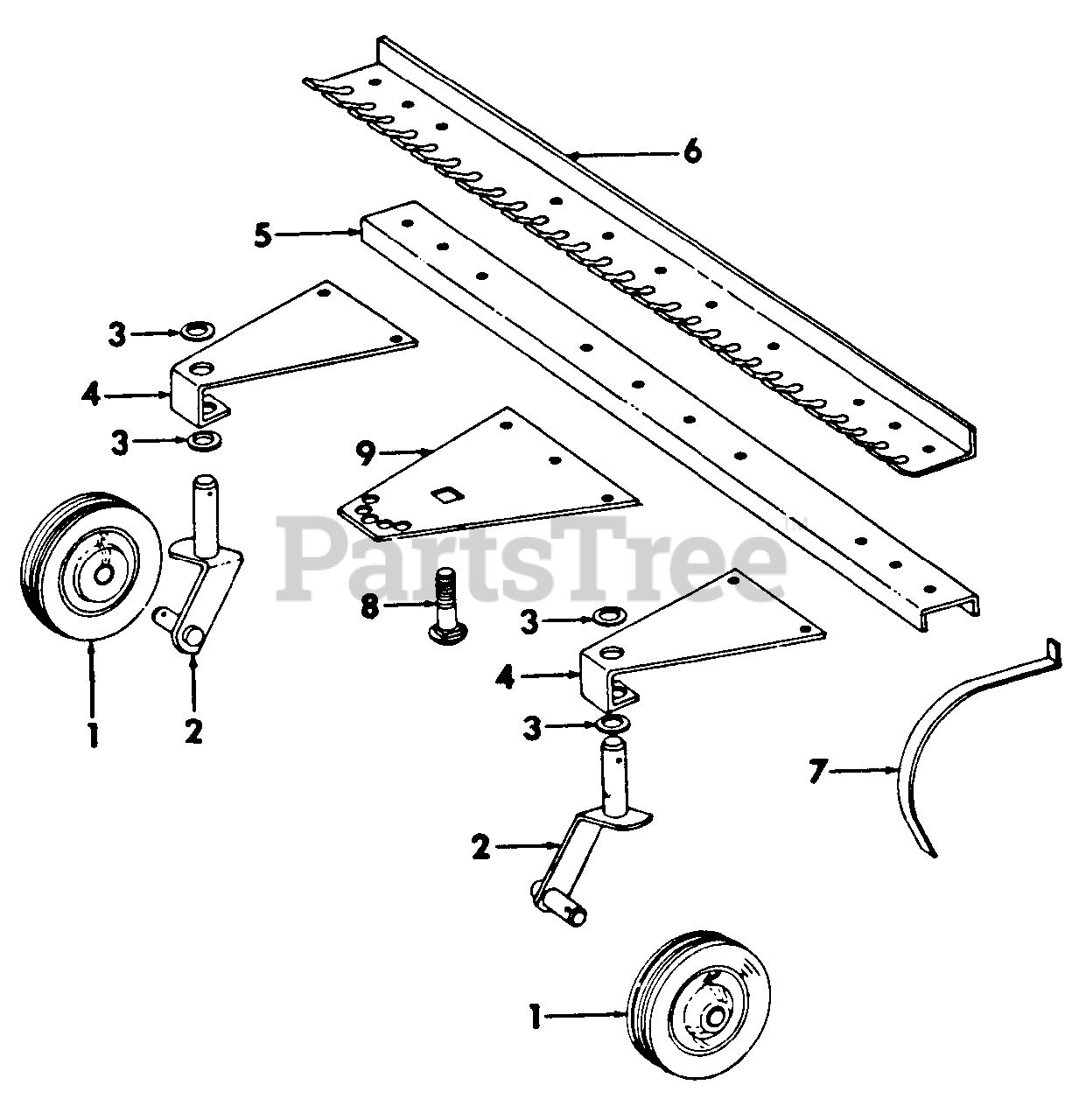

Rear Rake -41"- Rake & Connections Parts Diagram

  • Title

1

Cub Cadet 479-427-R91

Wheel Assy, Gage

$

$

Currently unavailable

2

Cub Cadet 473-337-R91

Carrier Assy, Rake Gage Wheel

$

$

Currently unavailable

Cub Cadet 120-123

Pin, 1/8 X 1-1/4 C-Z Cotter

$

$

Currently unavailable

Cub Cadet 520-175-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

Cub Cadet HI-120396

Washer, 17/32 X 1-1/16 X .095 C-Z

$

$

Currently unavailable

3

Cub Cadet 131-018

Washer, 15/16 X 1-3/4 X .134 C-Z -Gage Wheel Height Adjusting Washer

$

$

Currently unavailable

4

Cub Cadet 473-336-R1

Bracket, Gage Wheel

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 180-134

Screw, 3/8-16 X 2-1/2 C-Z Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet 473-333-R1

Channel, Tooth Attaching

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-180132

Screw, 3/8-16 X 2-1/4 C-Z Hex-Hd Cap
(Superseded to 710-3011)

$6.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 473-335-R1

Guide, Tooth Attaching

$

$

Currently unavailable

7

Cub Cadet 473-334-R1

Tooth, Tiller Rake

$

$

Currently unavailable

8

Cub Cadet 475-433-R1

Bolt, 7/8-9 X 3-1/2 C-Z Drd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet 427-643

Nut, 7/8-9 C-Z Hex

$

$

Currently unavailable

Cub Cadet 20-703-R1

Washer, 29/32 X 1-3/4 X 16 Ga C-Z

$

$

Currently unavailable

9

Cub Cadet 473-332-R1

Plate, Rake Adjusting

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 180-134

Screw, 3/8-16 X 2-1/2 C-Z Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0
