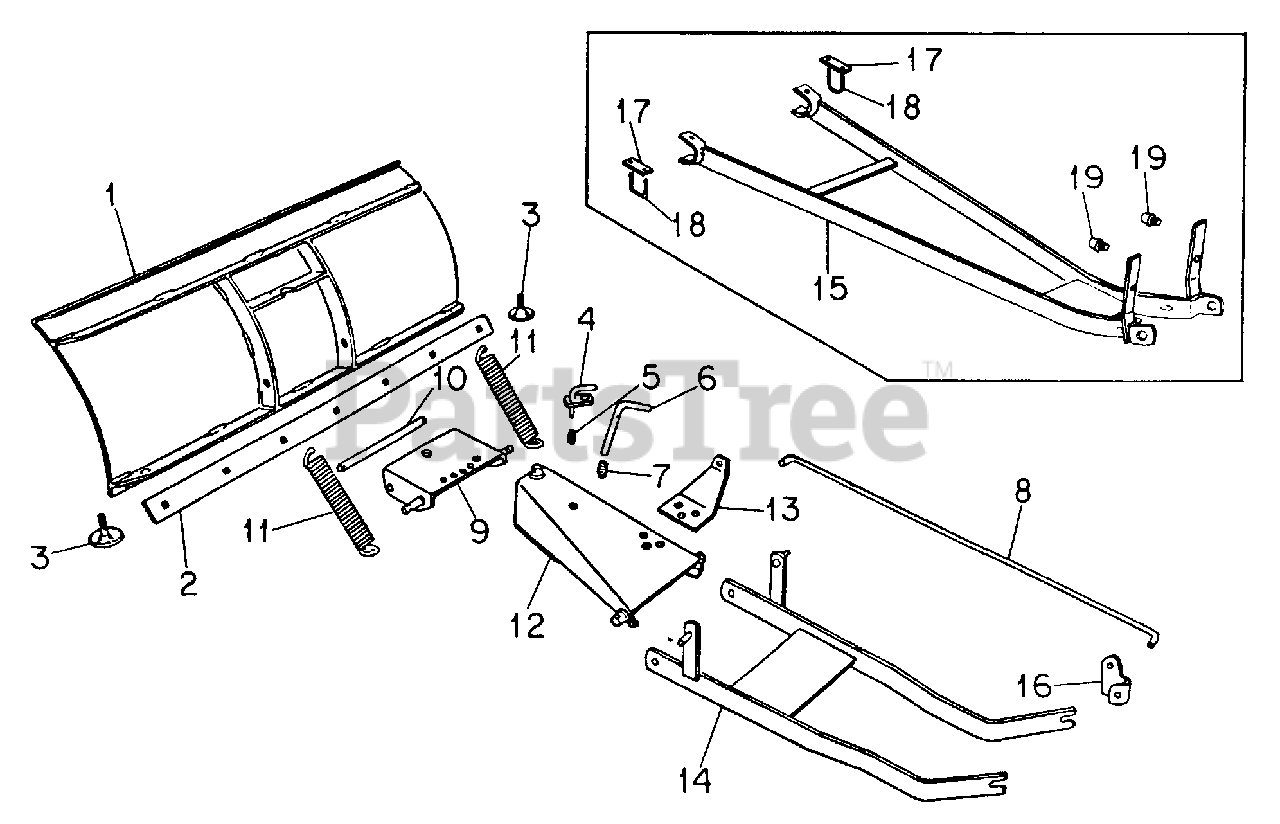

Accessory - Cub Cadet 42", 54" Push Blade att Blade, Main Frame and Springs-Tractor S/N 400,001 & Above Parts Diagram

42", 54" Push Blade

Blade, Main Frame and Springs-Tractor S/N 400,001 & Above Parts Diagram

  • Title

1

Cub Cadet IH-466899-R91

BLADE ASSY -42 INCH-

$

$

Not available

Cub Cadet IH-61630-C1

BLADE ASSY -54 INCH-

$

$

Not available

2

Cub Cadet IH-464371-R2

EDGE, BLADE CUTTING -41 INCH-
(Superseded to 703-0658)

$113.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-61634-C1

EDGE, BLADE CUTTING -54 INCH-
(Superseded to 703-0659-0637)

$101.99

$

Usually ships in 3-6 days

0

Cub Cadet 19576-R1

BOLT, 5/16 x 7/8 C-Z SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120376

NUT, 5/16 C-Z HEX.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120238

NUT, 1/2 C-Z HEX.

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet IH-466906-R11

SHOE ASSEMBLY, SKID
(Superseded to 703-0650)

$49.99

$

In Stock, only 4 left!

0

Cub Cadet IH-120238

NUT, 1/2 C-Z HEX.

$

$

Not available

Cub Cadet 120239

WASHER, 1/2 C-Z LIGHT LOCK

$

$

Currently unavailable

4

Cub Cadet IH-466891-R11

LOCK ASSEMBLY, SPRING TRIP

$

$

Not available

Cub Cadet 141406

PIN, 7/64 x 7/8 C-Z COTTER

$

$

Currently unavailable

Cub Cadet IH-120394

WASHER, 13/32 x 13/16 x .065 C-Z
(Superseded to 936-0140)

$

$

Not available

5

Cub Cadet IH-351

SPRING, COMPRESSION TYPE
(Superseded to 732-3036)

$

$

Not available

6

Cub Cadet IH-466890-R1

PIN, ANGLING

$

$

Not available

Cub Cadet IH-120169

PIN, 5/32 x 1 C-Z COTTER

$

$

Not available

Cub Cadet IH-120396

WASHER, 17/32 x 1-1/16 x .121 C-Z
(Superseded to 936-0272)

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet IH-352370-R1

SPRING, COMPRESSION TYPE
(Superseded to 932-3035)

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet IH-548589-R1

ROD, LIFT

Note: SERIAL NO. 665000 & BELOW

$

$

Not available

Cub Cadet IH-140090-C1

ROD, LIFT

Note: SERIAL NO. 665001 & ABOVE

$

$

Not available

Cub Cadet IH-473924-R1

ROD, LIFT

Note: 76 AND 80 LAWN TRACTORS

$

$

Not available

Cub Cadet IH-473443-R1

PIN, QUICK ATTACHABLE COTTER
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet IH-20869-R1

WASHER, .531 x .875 x .054
(Superseded to 736-3068)

$7.49

$

In Stock, only 2 left!

0

131016

WASHER, .656 x 1.312 x .074

$

$

Not available

9

Cub Cadet IH-466896-R31

FRAME ASSY, PIVOT

$

$

Not available

10

Cub Cadet IH-466898-R1

ROD, BLADE PIVOT

$

$

Not available

137218

PIN, 5/32 x 1-1/4 C-Z COTTER

$

$

Not available

11

Cub Cadet IH-PO27

SPRING, EXTENSION TYPE
(Superseded to 959-3380)

$

$

Not available

12

Cub Cadet IH-473918-R92

FRAME ASSY, MAIN

$

$

Not available

Cub Cadet IH-427640

NUT, 3/4 C-Z SLT HEX.
(Superseded to 712-0359)

$12.99

$

In Stock, only 2 left!

0

Cub Cadet 137209

PIN, 1/8 x 1-5/8 C-Z COTTER

$

$

Currently unavailable

137218

PIN, 13/32 x 1-1/4 C-Z COTTER

$

$

Not available

Cub Cadet IH-131017

WASHER, 13/32 x 1-1/2 x .134 C-Z

$

$

Currently unavailable

13

Cub Cadet IH-548590-R1

ARM, LIFT

Note: SERIAL NO. 665000 & BELOW

$

$

Not available

Cub Cadet IH-140092-C1

ARM, LIFT
(Superseded to 703-0631A-0498)

Note: SERIAL NO. 665001 & ABOVE

$

$

Not available

Cub Cadet IH-57217-C1

ARM, LIFT

Note: 76 & 80 LAWN TRACTORS

$

$

Currently unavailable

Cub Cadet IH-120378

NUT, 1/2-13 C-Z HEX.
(Superseded to 912-0206)

$4.99

$

In Stock, Qty 20+

0

180175

SCREW, 1/2-13 x 1-1/4 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.99

$

In Stock, Qty 17

0

Cub Cadet IH-144583-C1

BAR, LOCKOUT
(Superseded to 703-0671)

Note: SERIAL NO. 665001 AND ABOVE

$

$

Not available

Cub Cadet IH-180122

BOLT, 3/8 x 1 TYPE 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8 TYPE 5
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet IH-549068-R2

FRAME, BLADE
(Superseded to 703-0666-0499)

$

$

Not available

15

Cub Cadet IH-57209-C1

FRAME, SUB

Note: 76 AND 80 LAWN TRACTORS

$

$

Not available

Cub Cadet IH-479696-R91

PIN, KLIK
(Superseded to 914-3008)

$

$

Not available

Cub Cadet IH-21753-R1

WASHER, .781 x 1.500 x .054 ZND
(Superseded to 936-0316)

$4.99

$

In Stock, Qty 7

0

16

Cub Cadet IH-78057-C1

BRACKET, LIFT ROD

Note: SERIAL NO. 665001 AND ABOVE

$

$

Not available

Cub Cadet IH-57218-C1

BRACKET, LIFT ROD

Note: 76 AND 80 LAWN TRACTORS

$

$

Currently unavailable

Cub Cadet IH-598811-R1

BOLT, 3/8 x 1-3/4 CRG TYPE 5
(Superseded to 710-0560)

$7.49

$

In Stock, Qty 13

0

Cub Cadet IH-274993

NUT, 3/8 CAD P/T LOCK TYPE 1
(Superseded to 712-0375)

$4.99

$

In Stock, only 1 left!

0

17

Cub Cadet IH-57219-C1

STRAP, REAR AXLE

Note: 76 AND 80 LAWN TRACTORS

$

$

Not available

18

Cub Cadet IH-538731-R1

U-BOLT, REAR AXLE

Note: 76 AND 80 LAWN TRACTORS

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16 TYPE 5
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet IH-57220-C1

BUMPER, RUBBER

$

$

Not available

Cub Cadet IH-27927-DA

WASHER, .531 x .875 x .150

$

$

Not available

Cub Cadet IH-120368

NUT, 5/16-NF TYPE 5
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
