Accessory - Cub Cadet 42" Back Blade 42" Backfill Blade, Hitch & Main Frame Parts Diagram

42" Back Blade

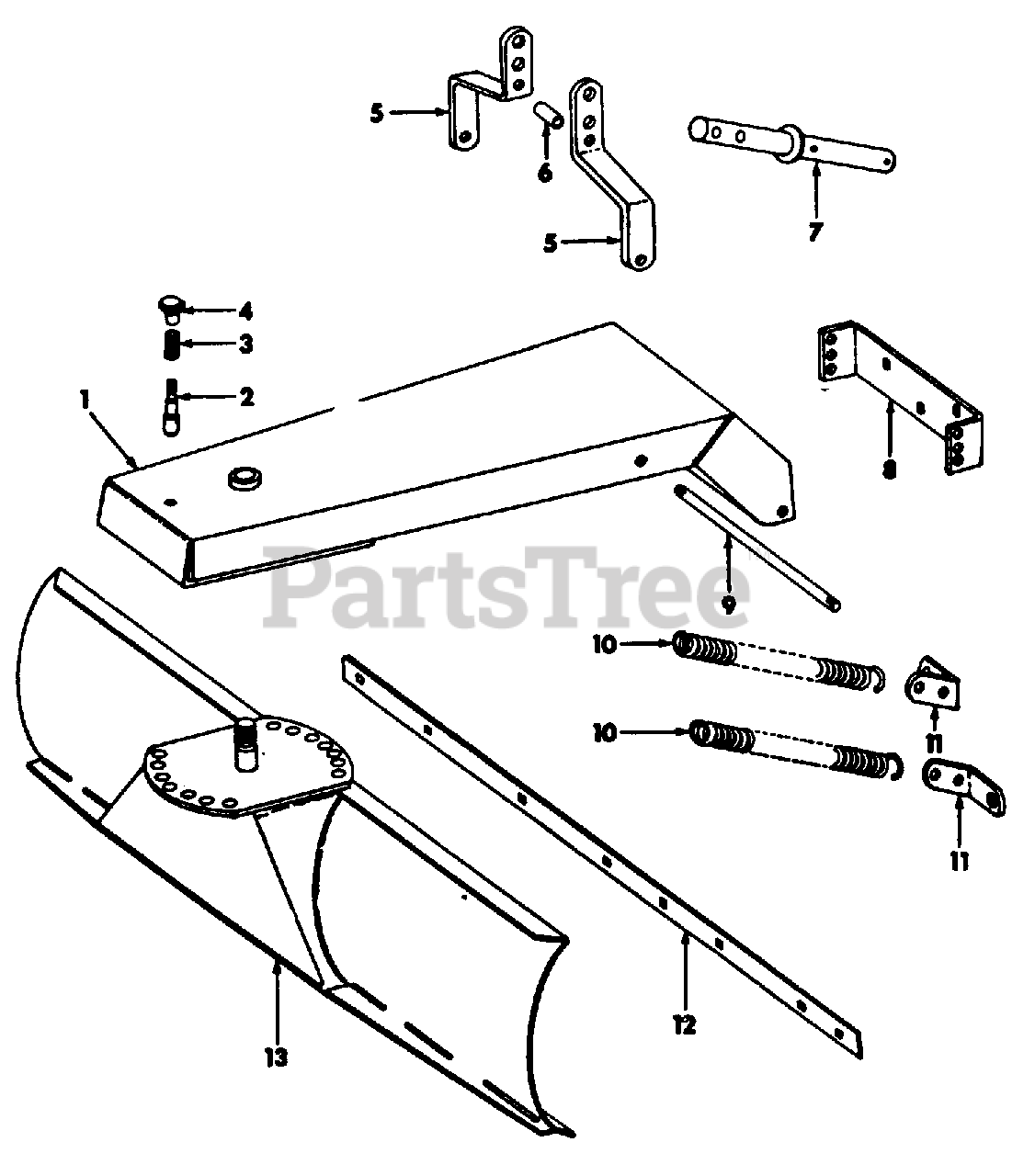

42" Backfill Blade, Hitch & Main Frame Parts Diagram

  • Title

1

Cub Cadet IH-473310-R91

Frame Assy, Main

$

$

Currently unavailable

2

Cub Cadet IH-473319-R1

Pin, Pivot

$

$

Currently unavailable

3

1160-G

Spring, Pivot Pin

$

$

Not available

4

Cub Cadet IH-473317-R1

Knob, Pivot Pin

$

$

Currently unavailable

5

Cub Cadet IH-473320-R1

Bracket, Hitch

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet NA-141

Pin, 1/2 X 1-7/8 Std-Hd

$

$

Currently unavailable

Cub Cadet IH-520175-R1

Pin, Quick Attachable Cotter

$

$

Not available

Cub Cadet IH-180130

Screw, 3/8-16 X 2 C-Z Hex-Hd Cap
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet IH-473321-R1

Spacer, Lift Link

$

$

Currently unavailable

7

Cub Cadet IH-473325-R11

Pin Assy, Hitch Lift

$

$

Currently unavailable

137243

Pin, 1/8 X 1-1/2 Cotter

$

$

Not available

Cub Cadet IH-180126

Screw, 3/8-16 X 1-1/2 C-Z Hex-Hd Cap
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 20+

0

Q-3480

Washer, 1-1/32 X 1-1/2 X 11 Ga

$

$

Not available

Q-3481

Washer, 1-1/32 X 1-1/2 X 16 Ga

$

$

Not available

8

Cub Cadet IH-473324-R1

Channel, Hitch Mount

$

$

Currently unavailable

D-3373

Pin, 1/2 X 1-1/2 Std-Hd

$

$

Not available

Cub Cadet IH-520175-R1

Pin, Quick Attachable Cotter

$

$

Not available

9

Cub Cadet IH-473322-R1

Rod, Lift

$

$

Currently unavailable

137218

Pin, 5/32 X 1-1/4 C-Z Cotter

$

$

Not available

Cub Cadet HI-120396

Washer, 17/32 X 1-1/16 X .095 C-Z

$

$

Currently unavailable

10

23331-SA

Spring, Lifting

$

$

Not available

11

Cub Cadet IH-473323-R1

Angle, Spring Attaching

$

$

Currently unavailable

Cub Cadet IH-180124

Screw, 3/8-16 X 1-1/4 C-Z Hex-Hd Cap
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

180134

Screw, 3/8-16 X 2-1/2 C-Z Hex-Hd Cap

$

$

Not available

12

Cub Cadet IH-464371-R2

Edge, Blade Cutting
(Superseded to 703-0658)

$113.99

$

In Stock, only 2 left!

0

Cub Cadet IH-19576-R1

Bolt, 5/16-18 X 7/8 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16-18 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet IH-473326-R11

Moldboard Assy, Cub Cadet Blade

$

$

Currently unavailable

427643

Nut, 7/8-9 C-Z Hex

$

$

Not available

137214

Pin, 1/8 X 1-3/4 C-Z Cotter

$

$

Not available

Cub Cadet IH-20703-R1

Washer, 29/32 X 1-3/4 X 16 Ga C-Z

$

$

Currently unavailable

Cub Cadet IH-2752019-R1

Product Graphic, IH - In Center on Top of Main Frame

$

$

Not available
