Accessory - Cub Cadet 42" Push Blade 42" Blade, Frame & Related Parts Parts Diagram

42" Push Blade

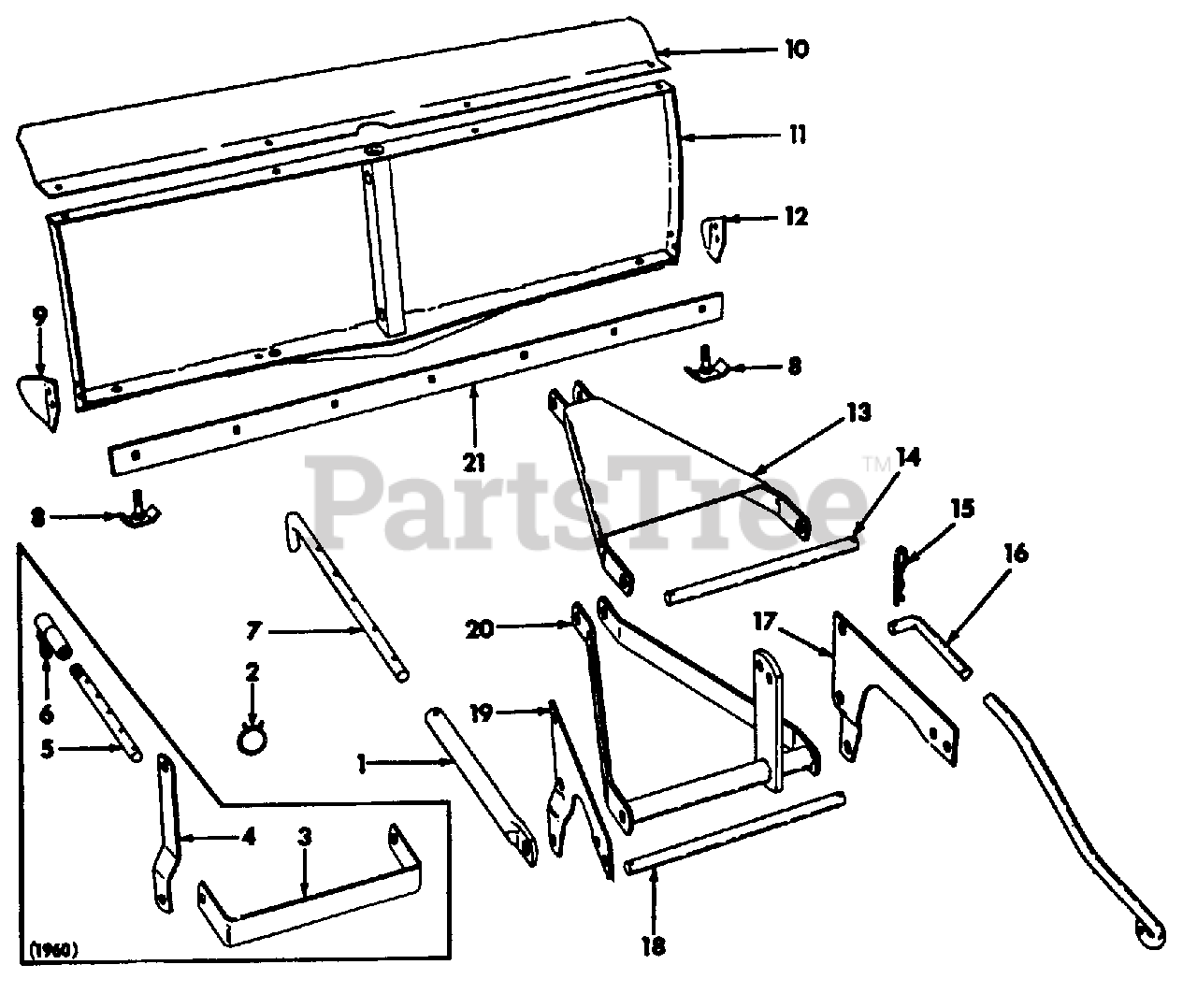

42" Blade, Frame & Related Parts Parts Diagram

  • Title

1

Cub Cadet IH-464-385-R1

Tube, Adjusting

$

$

Currently unavailable

Cub Cadet 127-253

Pin, 3/16 X 1-5/8 C-Z Cotter

$

$

Currently unavailable

2

Cub Cadet IH-460-494-R1

Clamp, Hose -for Cot. Pin Storage

$

$

Currently unavailable

3

Cub Cadet IH-464-389-R1

Brace, Tractor Frame - Order Ref. Nos. 17 & 19

$

$

Currently unavailable

Cub Cadet IH-17-433-R1

Bolt, 1/2 X 1 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet IH-120384

Washer, 1/2 C-Z Med Lock
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120378

Nut, 1/2-13 C-Z Hex
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet IH-464-380-R1

Bar, Mounting, Order Ref No. 19

$

$

Currently unavailable

5

Cub Cadet IH-464386-R1

Rod, Adjusting -1960

$

$

Currently unavailable

6

Cub Cadet IH-464-384-R91

Joint, Ball -1960

$

$

Currently unavailable

Cub Cadet IH-121358

Nut, 5/8-18 C-Z Hex Nut

$

$

Currently unavailable

Cub Cadet IH-121574

Washer, 5/8 Med Lock
(Superseded to 936-0158)

$4.49

$

In Stock, Qty 15

0

7

Cub Cadet IH-465380-R1

Rod, Adjusting -1961-

$

$

Currently unavailable

Cub Cadet IH-187988

Pin, 3/16 X 1-1/4 C-Z Cotter
(Superseded to 714-0142)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet IH-12-258-R1

Washer, 21/32 X 1-1/4 X 11 Ga

$

$

Currently unavailable

8

Cub Cadet IH-464-372-R1

Shoe, Skid -1960- Order Shoe 465 376 R11 and Two Nuts 120 238

$

$

Currently unavailable

Cub Cadet IH-18-627-R1

Bolt, 1/4-20 X 1 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120380

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-120375

Nut, 1/4-20 C-Z Hex
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-465376-R11

Shoe Assy, Skid -1961

$

$

Not available

Cub Cadet 120-283

Nut, 1/2-13 C-Z Hex Jam

$

$

Currently unavailable

9

Cub Cadet IH-465-377-R1

Trip, Blade LH

$

$

Currently unavailable

Cub Cadet IH-180122

Bolt, 3/8 X 1 C-Z Hex-Hd Mach
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet IH-465-383-R91

Deflector w/RH Trip, Snow -1961

$

$

Currently unavailable

Cub Cadet IH-180077

Bolt, 5/16 X 3/4 C-Z Hex-Hd Mach
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16-18 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet IH-464-365-R92

Blade Assy

$

$

Currently unavailable

12

Cub Cadet IH-465-378-R1

Trip Blade RH -1961

$

$

Currently unavailable

Cub Cadet IH-180122

Bolt, 3/8 X 1 C-Z Hex-Hd Mach
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet IH-464-374-R91

Link Assy, Upper

$

$

Currently unavailable

Cub Cadet 6-642

Pin, 5/8 X 2-1/4 Dld-Std-Hd

$

$

Currently unavailable

Cub Cadet IH-187988

Pin, 3/16 X 1-1/4 C-Z Cotter
(Superseded to 714-0142)

$6.49

$

In Stock, only 1 left!

0

14

Cub Cadet IH-464-381-R1

Pin, Rear Pivot

$

$

Currently unavailable

Cub Cadet IH-187988

Pin, 3/16 X 1-1/4 C-Z Cotter
(Superseded to 714-0142)

$6.49

$

In Stock, only 1 left!

0

15

IH-610-784-R1

Pin, Quick Attachable Cotter

$

$

Not available

16

Cub Cadet IH-464-387-R1

Rod, Lift

$

$

Currently unavailable

Cub Cadet 137-180

Pin, 1/8 X 7/8 C-Z Cotter

$

$

Currently unavailable

17

Cub Cadet IH-465-209-R1

Plate, Mounting RH -1961

$

$

Currently unavailable

Cub Cadet IH-17-433-R1

Bolt, 1/2 X 1 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet IH-120384

Washer, 1/2 C-Z Med Lock
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120378

Nut, 1/2-13 C-Z Hex
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet IH-464-382-R1

Pin, Rear Lower

$

$

Currently unavailable

Cub Cadet IH-187988

Pin, 3/16 X 1-1/4 C-Z Cotter
(Superseded to 714-0142)

$6.49

$

In Stock, only 1 left!

0

19

Cub Cadet IH-465-208-R1

Plate, Mounting LH -1961

$

$

Currently unavailable

Cub Cadet IH-17-433-R1

Bolt, 1/2 X 1 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet IH-120384

Washer, 1/2 C-Z Med Lock
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 120-387

Nut, 1/2-13 C-Z Hex

$

$

Currently unavailable

20

Cub Cadet IH-464-375-R91

Link Assy, Lower

$

$

Currently unavailable

Cub Cadet IH-453-116-R1

Pin, 5/8 X 2-3/8 Dld-Std-Hd

$

$

Currently unavailable

Cub Cadet IH-187988

Pin, 3/16 X 1-1/4 C-Z Cotter
(Superseded to 714-0142)

$6.49

$

In Stock, only 1 left!

0

21

IH-464-371-R2

Edge, Cutting

$

$

Not available

IH-16-897-R1

Bolt, 5/16 X 3/4 C-Z Sq-Nk Crg

$

$

Not available

Cub Cadet IH-120214

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16-18 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-2750-501-R1

Product Graphic, IH - On Upper Link

$

$

Currently unavailable
