Accessory - Cub Cadet 48" Rotary Tiller Attachment Frame Parts Diagram

48" Rotary Tiller Attachment

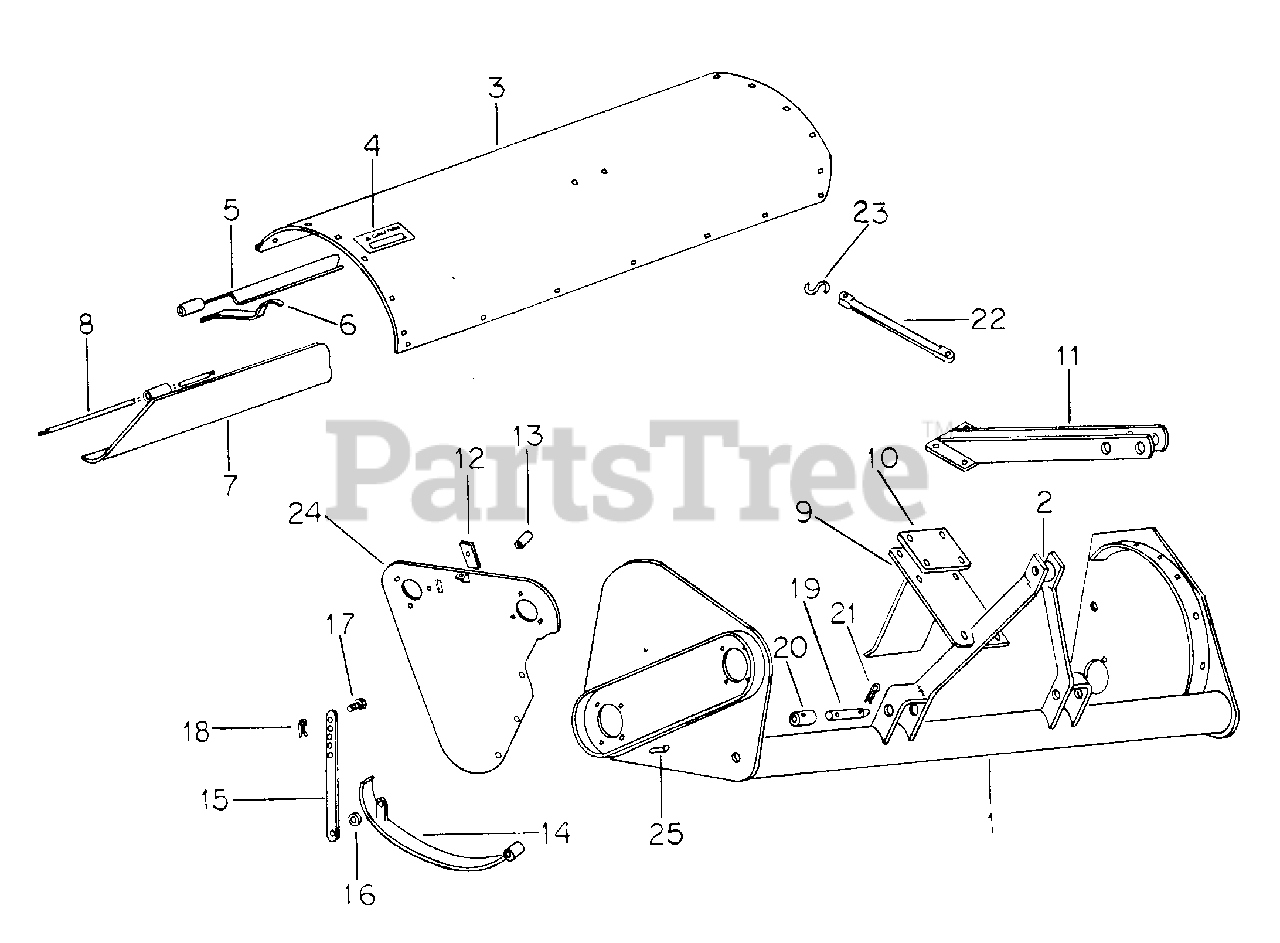

Frame Parts Diagram

  • Title

1

79066-C1

FRAME

$

$

Not available

2

605210-R1

SPACER, 1/2 x 1.125 X/STRG PIPE

$

$

Not available

3

79068-C91

SHROUD

Note: W/PRODUCT GRAPHIC

$

$

Not available

4

542590-R1

PRODUCT GRAPHIC, CAUTION

$

$

Not available

Cub Cadet IH-598809-R1

BOLT, 3/8 x 3/4 CRG TYPE 5
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-9411655

NUT, 3/8 CAD P/T LOCK TYPE 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

5

79076-C1

BRACKET, HINGE

$

$

Not available

Cub Cadet IH-27607-R1

SCREW, 5/16 x 3/4 H/WHD TAP
(Superseded to 710-0726)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-9411655

NUT, 3/8 CAD P/T LOCK TYPE 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

6

79077-C1

SUPPORT

$

$

Not available

Cub Cadet IH-495967-R1

BOLT, 3/8 x 1 CRG TYPE 5
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-9411655

NUT, 3/8 CAD P/T LOCK TYPE 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet IH-79078-C1

BLADE, LEVEL

$

$

Currently unavailable

8

79079-C1

ROD, HINGE

$

$

Not available

Cub Cadet IH-9411655

NUT, 3/8 CAD P/T LOCK TYPE 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

9

79070-C1

SUPPORT, MOUNT

$

$

Not available

Cub Cadet 180122

BOLT, 3/8 x 1 TYPE 5

$

$

Currently unavailable

Cub Cadet 120394

WASHER,.406 x .812 x .051

$

$

Currently unavailable

Cub Cadet IH-9411655

NUT, 3/8 CAD P/T LOCK TYPE 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

10

79069-C1

SPACER

$

$

Not available

Cub Cadet HA-GM180124

BOLT, 3/8 x 1-1/4 TYPE 5

$

$

Currently unavailable

Cub Cadet 120382

WASHER, 3/8 LOCK

$

$

Currently unavailable

Cub Cadet IH-120394

WASHER, .406 x .812 x .051
(Superseded to 936-0140)

$

$

Not available

11

79067-C1

LINK

$

$

Not available

180191

BOLT, 1/2 x 3-1/4 TYPE 5

$

$

Not available

Cub Cadet IH-120396

WASHER .531 x 1.062 x .074
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-9413967

NUT, 1/2 CAD P/T LOCK TYPE 5

$

$

Not available

12

Cub Cadet IH-79080-C1

BAR, IDLER SUPPORT - STRAP

$

$

Currently unavailable

Cub Cadet IH-180190

BOLT, 1/2 x 3 TYPE 5
(Superseded to 710-0182A)

$7.49

$

In Stock, only 2 left!

0

13

Cub Cadet IH-517899-R1

SPACER 1/2 x 2 FRAME SUPPORT

$

$

Currently unavailable

Cub Cadet IH-9413967

NUT, 1/2 CAD P/T LOCK TYPE 5

$

$

Not available

14

79081-C1

SHOE

$

$

Not available

271725

BOLT, 5/8 x 2-1/2 TYPE 5

$

$

Not available

124589

NUT, 5/8 TYPE 5

$

$

Not available

15

Cub Cadet IH-79082-C1

BAR, ADJUST

$

$

Currently unavailable

Cub Cadet HA-GM180177

BOLT, 1/2 x 1-1/2 TYPE 5

$

$

Currently unavailable

16

Cub Cadet IH-79083-C1

WASHER

$

$

Currently unavailable

Cub Cadet IH-9413967

NUT, 1/2 CAD P/T LOCK TYPE 5

$

$

Not available

17

Cub Cadet IH-79084-C1

BOLT SPECIAL

$

$

Currently unavailable

9413969

NUT, 5/8 CAD P/T LOCK TYPE 5

$

$

Not available

Cub Cadet IH-120396

WASHER, .531 x 1.062 x .074
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

18

71398-C1

PIN, QA

$

$

Not available

19

Cub Cadet IH-79085-C1

PIN, LINK

$

$

Currently unavailable

20

Cub Cadet IH-79086-C1

SPACER, PIN

$

$

Not available

18561-R1

PIN, 1/4 x 3 PLN SLT-SPR

$

$

Not available

21

Cub Cadet IH-480523-R1

PIN, QA
(Superseded to 714-0117)

$3.99

$

In Stock, Qty 11

0

22

79087-C1

STRAP, TIE

$

$

Not available

23

79088-C1

S-HOOK

$

$

Not available

113961

SCREW 1/4 x 1-1/4 PLN R/HDS MACH

$

$

Not available

Cub Cadet IH-120375

NUT, 1/4 TYPE 5
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

24

79074-C1

COVER, INNER

$

$

Not available

25

79071-C1

BOLT, SPECIAL CARRIAGE

$

$

Not available

27452-R1

BOLT, 3/8 x 2-3/4 CRG TYPE 5

$

$

Not available

Cub Cadet IH-9411655

NUT, 3/8 CAD P/T LOCK TYPE 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0
