Accessory - Cub Cadet 48" Rotary Tiller Attachment Frame Part 1 Parts Diagram

48" Rotary Tiller Attachment

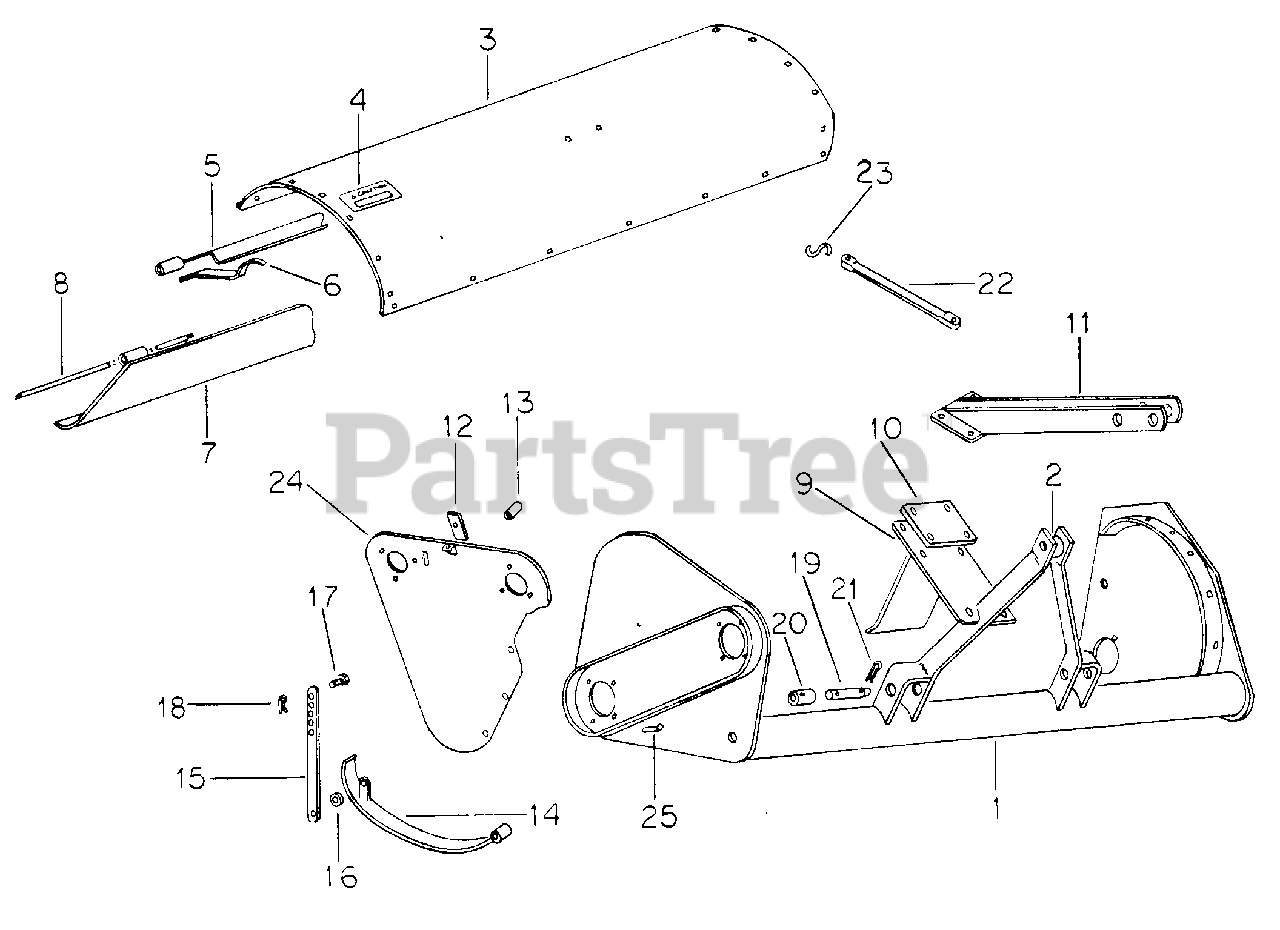

Frame Part 1 Parts Diagram

  • Title

1

Cub Cadet 79-066-C1

Frame

$

$

Currently unavailable

2

Cub Cadet 605-210-R1

Spacer, 1/2 X 1.125 X/Strg Pipe

$

$

Currently unavailable

3

Cub Cadet 79-068-C91

Shroud w/Product Graphic

$

$

Currently unavailable

4

Cub Cadet 542-590-R1

Product Graphic, Caution

$

$

Currently unavailable

Cub Cadet 598-809-R1

Bolt, 3/8 X 3/4 Crg Type 5

$

$

Currently unavailable

Cub Cadet IH-9411655

Nut, 3/8 Cad P/T Lock Type 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 79-076-C1

Bracket, Hinge

$

$

Currently unavailable

Cub Cadet 27-607-R1

Screw, 5/16 X 3/4 H/Whd Tap

$

$

Currently unavailable

Cub Cadet IH-9411655

Nut, 3/8 Cad P/T Lock Type 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 79-077-C1

Support

$

$

Currently unavailable

Cub Cadet 495-967-R1

Bolt, 3/8 X 1 Crg Type 5

$

$

Currently unavailable

Cub Cadet IH-9411655

Nut, 3/8 Cad P/T Lock Type 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 79-078-C1

Blade, Level

$

$

Currently unavailable

8

Cub Cadet 79-079-C1

Rod, Hinge

$

$

Currently unavailable

Cub Cadet IH-9411655

Nut, 3/8 Cad P/T Lock Type 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 79-070-C1

Support, Mount

$

$

Currently unavailable

Cub Cadet IH-180122

Bolt, 3/8 X 1 Type 5
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

Washer, .406 X .812 X .051
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-9411655

Nut, 3/8 Cad P/t Lock Type 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 79-069-C1

Spacer

$

$

Currently unavailable

Cub Cadet IH-180124

Bolt, 3/8 X 1-1/4 Type 5
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

Washer, .406 X .812 X .051
(Superseded to 936-0140)

$

$

Not available

11

Cub Cadet 79-067-C1

Link

$

$

Currently unavailable

Cub Cadet 180-191

Bolt, 1/2 X 3-1/4 Type 5

$

$

Currently unavailable

Cub Cadet HI-120396

Washer, .531 X 1.062 X .074

$

$

Currently unavailable

Cub Cadet IH-9413967

Nut, 1/2 Cad P/T Lock Type 5

$

$

Not available

12

Cub Cadet 79-080-C1

Bar, Idler Support -Strap

$

$

Currently unavailable

Cub Cadet IH-180190

Bolt, 1/2 X 3 Type 5
(Superseded to 710-0182A)

$7.49

$

In Stock, only 2 left!

0

13

Cub Cadet 517-899-R1

Spacer, 1/2 X 2 Frame Support

$

$

Currently unavailable

Cub Cadet IH-9413967

Nut, 1/2 Cad P/T Lock Type 5

$

$

Not available

14

Cub Cadet 79-081-C1

Shoe

$

$

Currently unavailable

Cub Cadet 271-725

Bolt, 5/8 X 2-1/2 Type 5

$

$

Currently unavailable

Cub Cadet 124-589

Nut, 5/8 Type 5

$

$

Currently unavailable

15

Cub Cadet 79-082-C1

Bar, Adjust

$

$

Currently unavailable

Cub Cadet 180-177

Bolt, 1/2 X 1-1/2 Type 5

$

$

Currently unavailable

16

Cub Cadet 79-083-C1

Washer

$

$

Currently unavailable

Cub Cadet IH-9413967

Nut, 1/2 Cad P/T Lock Type 5

$

$

Not available

17

Cub Cadet 79-084-C1

Bolt, Special

$

$

Currently unavailable

Cub Cadet 9413-969

Nut, 5/8 Cad P/T Lock Type 5

$

$

Currently unavailable

Cub Cadet HI-120396

Washer, .531 X 1.062 X .074

$

$

Currently unavailable

18

Cub Cadet 71-398-C1

Pin, QA

$

$

Currently unavailable

19

Cub Cadet 79-085-C1

Pin, Link

$

$

Currently unavailable

20

Cub Cadet 79-086-C1

Spacer, Pin

$

$

Currently unavailable

Cub Cadet 18-561-R1

Pin, 1/4 X 3 Pln Slt-Spr

$

$

Currently unavailable

21

Cub Cadet 480-523-R1

Pin, QA

$

$

Currently unavailable

22

Cub Cadet 79-087-C1

Strap, Tie

$

$

Currently unavailable

23

Cub Cadet 79-088-C1

S-Hook

$

$

Currently unavailable

Cub Cadet 113-961

Screw, 1/4 X 1-1/4 Pln R/Hds Mach

$

$

Currently unavailable

Cub Cadet IH-120375

Nut, 1/4 Type 5
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 79-074-C1

Cover, Inner

$

$

Currently unavailable

25

Cub Cadet 79-071-C1

Bolt, Special Carriage

$

$

Currently unavailable

Cub Cadet 27-452-R1

Bolt, 3/8 X 2-3/4 Crg Type 5

$

$

Currently unavailable

Cub Cadet IH-9411655

Nut, 3/8 Cad P/T Lock Type 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0
