Accessory - Cub Cadet 48" Rotary Tiller Attachment Gear Box Parts Diagram

48" Rotary Tiller Attachment

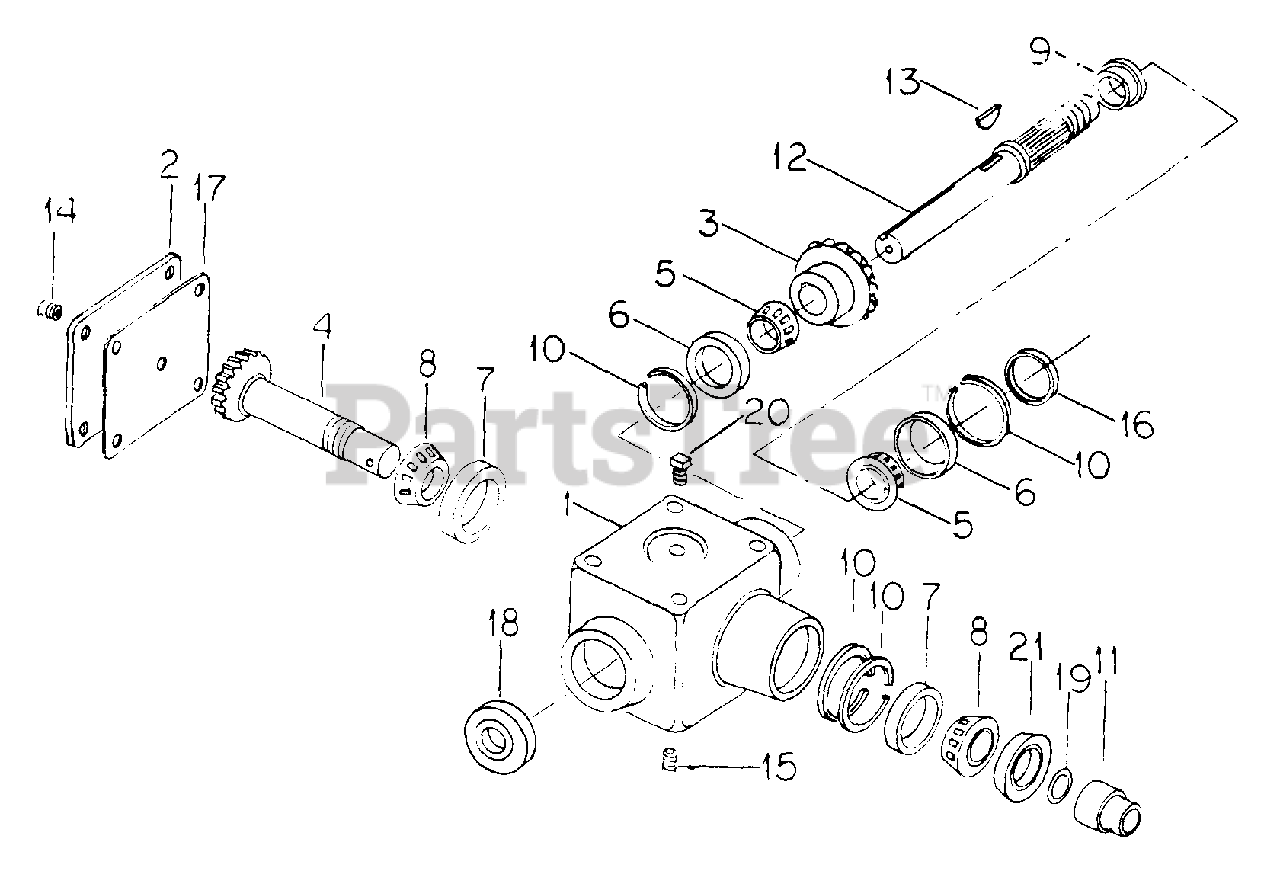

Gear Box Parts Diagram

  • Title

1

Cub Cadet IH-79999-C1

HOUSING, GEAR BOX

$

$

Currently unavailable

2

127198-C1

COVER

$

$

Not available

3

Cub Cadet IH-80000-C1

GEAR

$

$

Not available

4

Cub Cadet IH-80001-C1

SHAFT, BEVEL PINION

$

$

Not available

5

Cub Cadet IH-463911-R91

BEARING, CONE
(Superseded to 741-04549)

$18.99

$

In Stock, Qty 20+

0

6

Cub Cadet IH-572564-R1

BEARING, CUP
(Superseded to 741-04548)

$8.49

$

In Stock, Qty 20+

0

7

Cub Cadet IH-80003-C1

BEARING, CUP

$

$

Not available

8

Cub Cadet IH-80004-C91

BEARING, CONE

$

$

Not available

9

NUT, STAKE

Note: ORDER KIT 128395-C2

$

$

Not available

10

Cub Cadet IH-513010-R1

RING, SNAP

$

$

Currently unavailable

Cub Cadet IH-180075

BOLT, 5/16 x 5/8 TYPE 5

$

$

Not available

11

NUT, STAKE

Note: ORDER KIT 128395-C2

$

$

Not available

12

Cub Cadet IH-80007-C1

SHAFT, OUTPUT

$

$

Currently unavailable

13

Cub Cadet IH-124551

KEY, 1/4 x 7/8 SAE WOODRUFF

$

$

Not available

14

444571

PLUG, 1/8-27 SQ/HD AUTO PIPE

$

$

Not available

15

444698

PLUG, 3/8-18 HEX/SKT AUTO PIPE

$

$

Not available

16

CAP

Note: ORDER KIT 128395-C2

$

$

Not available

17

Cub Cadet IH-80009-C1

GASKET

$

$

Currently unavailable

18

SEAL, OIL

Note: ORDER K17 128395-C2

$

$

Not available

19

Cub Cadet IH-372764-R1

O-RING, 1-1/8 x 1-5/16 CLASS 5

$

$

Currently unavailable

20

Cub Cadet IH-80010-C1

PLUG, VENT

$

$

Currently unavailable

21

Cub Cadet IH-420140-C91

SEAL, OIL

$

$

Currently unavailable

Cub Cadet IH-128395-C2

KIT, GEAR BOX SERVICE

Note: CONSISTS OF REF # 9, 11,16 THROUGH 19 & 21.

$

$

Not available
