Accessory - Cub Cadet 48" Rotary Tiller Attachment Tines Parts Diagram

48" Rotary Tiller Attachment

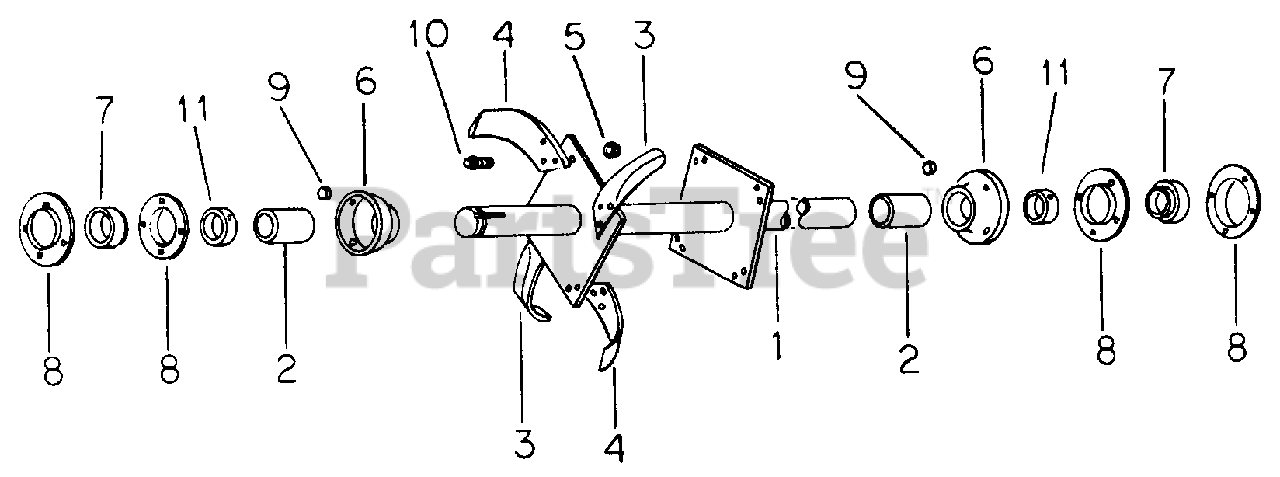

Tines Parts Diagram

  • Title

1

79090-C1

SHAFT, ROTOR

$

$

Not available

2

Cub Cadet IH-79091-C1

SPACER, TINE SHAFT

$

$

Currently unavailable

3

Cub Cadet IH-79092-C1

TINE LH

$

$

Currently unavailable

4

Cub Cadet IH-79093-C1

TINE RH

$

$

Currently unavailable

5

79094-C1

NUT, SPECIAL

$

$

Not available

6

Cub Cadet IH-79095-C1

RETAINER, BRG GUARD

$

$

Currently unavailable

7

Cub Cadet IH-663559-R91

BEARING LESS COLLAR

$

$

Currently unavailable

8

Cub Cadet IH-79096-C1

FLANGE

$

$

Currently unavailable

Cub Cadet IH-466972-R1

BOLT, 1/2 x 1-3/4 CRG TYPE 5

$

$

Currently unavailable

465567-R1

BOLT, 1/2 x 1-1/2 CRG TYPE 5

$

$

Not available

9

79097-C1

WASHER

$

$

Not available

Cub Cadet IH-120378

NUT, 1/2 TYPE 5
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet IH-236481-R1

BOLT, 3/8 x 1-1/8 TYPE 8

$

$

Not available

11

Cub Cadet IH-455112-R11

COLLAR w/SET SCREW

$

$

Not available
