Accessory - Cub Cadet Peg Tooth Harrow 1 Peg-Tooth Harrow - Frame, Tooth Bar & Quadrant Parts Diagram

Peg Tooth Harrow

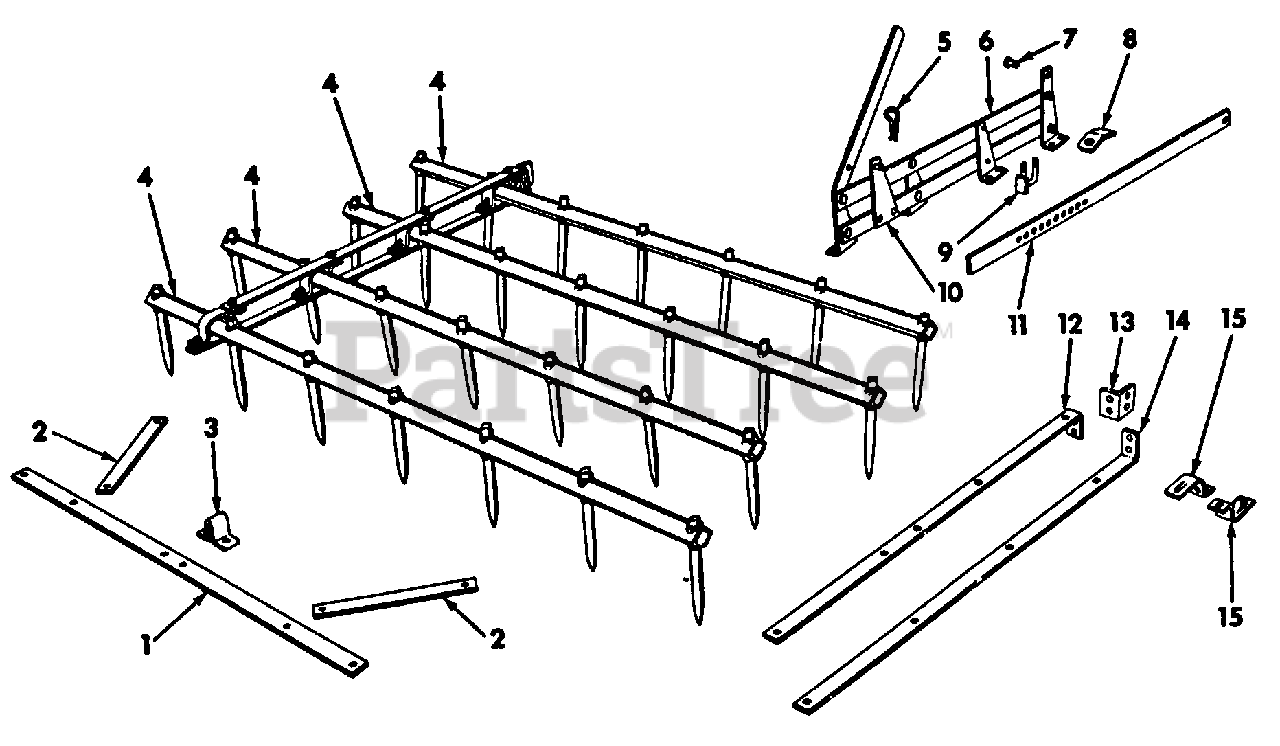

1 Peg-Tooth Harrow - Frame, Tooth Bar & Quadrant Parts Diagram

  • Title

1

Cub Cadet 463-541-R2

Brace, Cross

$

$

Currently unavailable

Cub Cadet 18-474-R1

Bolt, 5/16 X 1 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 464-875-R1

Brace, Diagonal

$

$

Currently unavailable

Cub Cadet 18-475

Bolt, 5/16 X 1 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 12-214

Washer, 5/16 C-Z Med Lock

$

$

Currently unavailable

3

Cub Cadet 463-540-R1

Guide, Cross Brace

$

$

Currently unavailable

Cub Cadet 18-764-R1

Bolt, 5/16 X 3/4 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 459-737-R91

Bar Assembly, Tooth

$

$

Currently unavailable

5

Cub Cadet 520-175-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

6

Cub Cadet 464-878-R91

Bar Assembly, Set

$

$

Currently unavailable

Cub Cadet 457-623-R1

Rivet, 3/8 X 53/64 Special Step

$

$

Currently unavailable

Cub Cadet 463-049-R1

Rivet, 3/8 Flat Hd Step

$

$

Currently unavailable

7

Cub Cadet 22-073-R1

Pin, 1/2 X 7/8 C-Z Std-Hd Dld

$

$

Currently unavailable

Cub Cadet 18-481-R1

Pin, 3/16 X 1 C-Z Cotter

$

$

Currently unavailable

Cub Cadet 607-895-R1

Washer, 17/32 X 1 X 11 Ga C-Z

$

$

Currently unavailable

8

Cub Cadet 459-976-R1

Spacer, Set Bar Standard

$

$

Currently unavailable

9

Cub Cadet 463-050-R11

U-Bolt Assembly

$

$

Currently unavailable

Cub Cadet 271-500

Nut, 7/16 Hex

$

$

Currently unavailable

Cub Cadet IH-120383

Washer, 7/16 C-Z Med Lock
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 464-880-R11

Bracket Assy, Quadrant

$

$

Currently unavailable

11

Cub Cadet 464-882-R1

Quadrant

$

$

Currently unavailable

Cub Cadet 104-112

Rivet, 3/8 X 7/8 Button Hd Ann

$

$

Currently unavailable

12

Cub Cadet 464-876-R1

Frame Side, Upper

$

$

Currently unavailable

13

Cub Cadet 464-186-R1

Angle, Draw

$

$

Currently unavailable

Cub Cadet 18-475

Bolt, 5/16 X 1 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 464-877-R1

Frame Side, Lower

$

$

Currently unavailable

15

Cub Cadet 463-539-R1

Bearing, Tooth Bar

$

$

Currently unavailable

Cub Cadet 19-007-R1

Bolt 5/16 X 1 C-Z No. 3 Plow

$

$

Currently unavailable

Cub Cadet 18-475

Bolt 5/16 X 1 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet 18-474-R1

Bolt 5/16 X 1 C-Z Hex-Hd Mach

$

$

Currently unavailable
