Accessory - Cub Cadet PTO Clutch Attachment, Engine Driven 3 Spindle - Engine Drive Power Take-Off Clutch Attch - S/N 65458 & Down Parts Diagram

PTO Clutch Attachment, Engine Driven

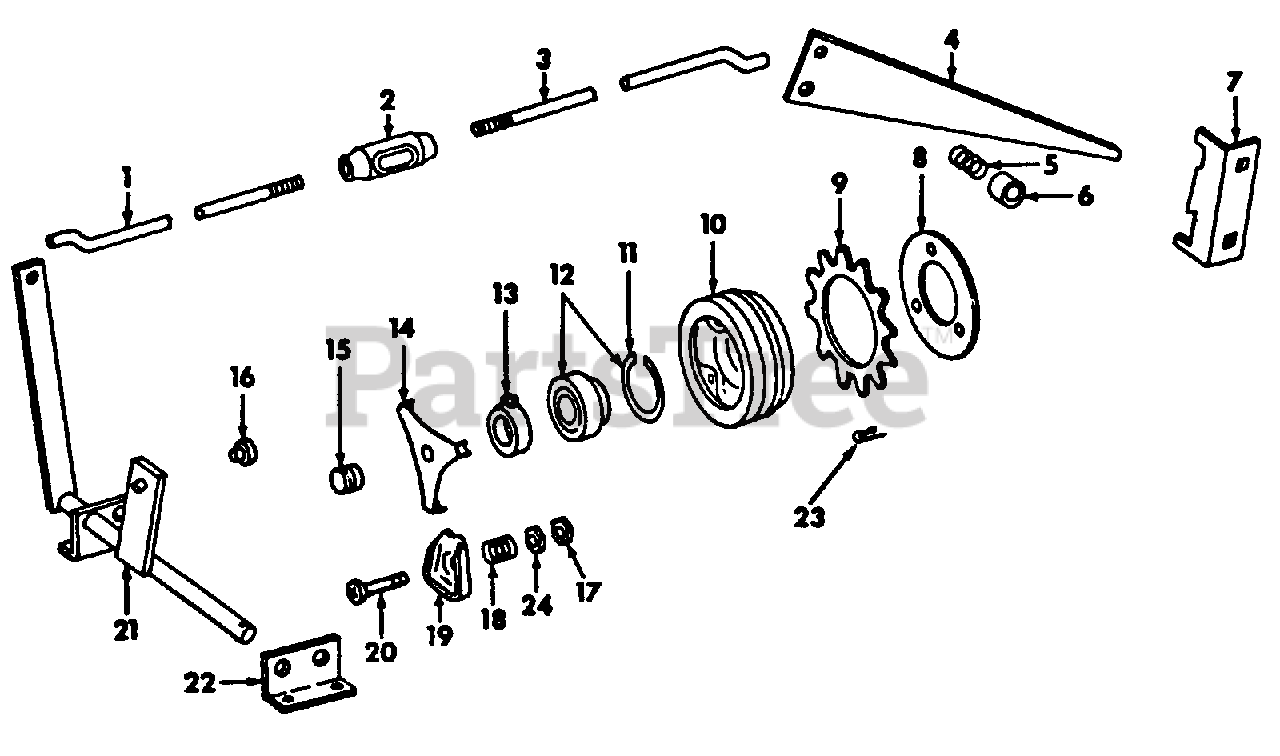

3 Spindle - Engine Drive Power Take-Off Clutch Attch - S/N 65458 & Down Parts Diagram

  • Title

1

Cub Cadet 473-484-R1

Rod, Clutch

$

$

Currently unavailable

Cub Cadet IH-120375

Nut, 1/4-20 C-Z Hex Jam
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 473-589-R1

Turnbuckle, Rod

$

$

Currently unavailable

3

Cub Cadet 477-207-R1

Rod, Rear Clutch

$

$

Currently unavailable

4

Cub Cadet 477-208-R1

Lever, Handle

$

$

Currently unavailable

Cub Cadet 18-779-R1

Bolt, 3/8-16 X 1-1/2 C-Z Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X 16 Ga C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet 178-372-R1

Washer, 13/32 X 1-1/4 X 16 Ga C-Z

$

$

Currently unavailable

5

Cub Cadet 133-641-R1

Spring, 15 Ga Compression

$

$

Currently unavailable

6

Cub Cadet 473-588-R1

Spacer, Spring

$

$

Currently unavailable

7

Cub Cadet 473-486-R3

Latch, Handle

$

$

Currently unavailable

Cub Cadet 18-626-R1

Bolt, 1/4-20 X 1/2 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120375

Nut, 1/4-20 C-Z Hex
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120380

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

8

Cub Cadet 473-471-R1

Plate, Pressure

$

$

Currently unavailable

9

Disc, Friction -Order 483 525 R92

$

$

Not available

10

Cub Cadet 59-983-C1

Pulley, Mower Actuating -Replaces 473 474 R1

$

$

Currently unavailable

Cub Cadet 23-026-R1

Screw, 1/4-20 X 1/4 Hex-Soc-Hd-F-Pt Set

$

$

Currently unavailable

Cub Cadet 23-025-R1

Screw, 1/4-20 X 1/2 Hex-Soc-Hd Cone-Pt Set

$

$

Currently unavailable

11

Cub Cadet 60-072-C1

Ring, Bearing Snap

$

$

Currently unavailable

12

Cub Cadet 60-071-C91

Bearing w/Snap Ring, Ball

$

$

Currently unavailable

13

Cub Cadet 473-461-R91

Collar w/Set Screw & Lock Nut, Brg

$

$

Currently unavailable

14

Spring, Pressure -Order 483 525 R92

$

$

Not available

15

Cub Cadet 473-477-R2

Button, Thrust

$

$

Currently unavailable

16

Cub Cadet 473-483-R1

Button, Wear

$

$

Currently unavailable

17

Cub Cadet 120-613

Nut, 1/4-28 Hex Jam

$

$

Currently unavailable

18

Cub Cadet 27-452-D

Spring, Compression

$

$

Currently unavailable

19

Cub Cadet 473-478-R1

Lever, Throw-Out

$

$

Currently unavailable

20

Cub Cadet 473-472-R1

Screw, Special Machine

$

$

Currently unavailable

21

Cub Cadet 477-202-R91

Shaft w/Button 473 483 R1, Clutch

$

$

Currently unavailable

Cub Cadet 473-443-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

22

Cub Cadet 477-205-R1

Bracket, Pivot

$

$

Currently unavailable

23

Cub Cadet 531-978-R1

Spring, Friction Disc

$

$

Currently unavailable

24

Cub Cadet IH-120367

Nut, 1/4-28 Hex
(Superseded to 912-0138)

$

$

Not available

Cub Cadet 483-525-R92

Kit, Pto Clutch Spring & Disc

$

$

Currently unavailable
