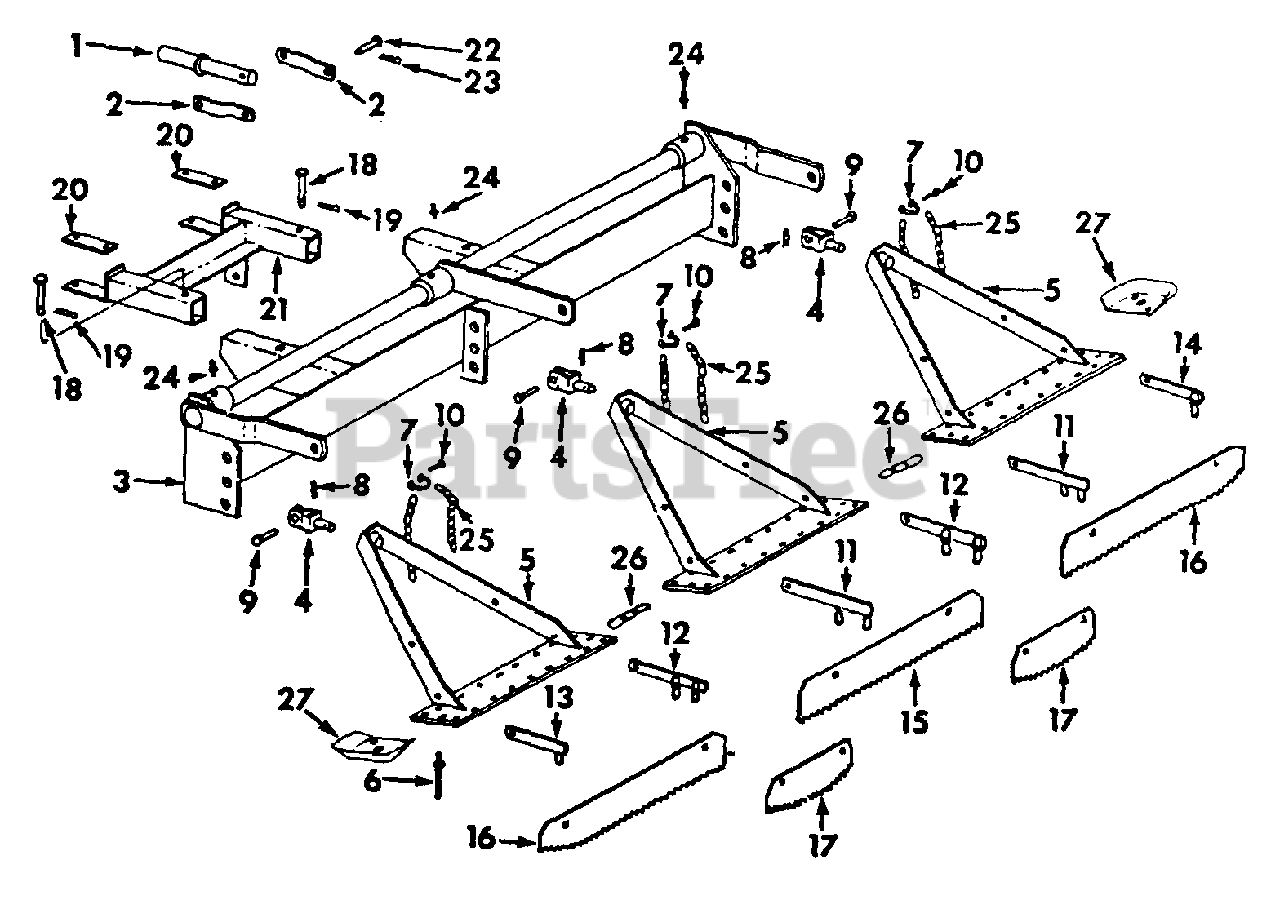

Accessory - Cub Cadet Sand Trap Rake Blades, Mounting Bracket, Lift, Rake Prong and Support Parts Diagram

Sand Trap Rake

Blades, Mounting Bracket, Lift, Rake Prong and Support Parts Diagram

  • Title

1

540396-R1

BAR, LIFT

$

$

Not available

137273

PIN, 3/16 x 2-1/2 C-Z COTTER

$

$

Not available

2

540397-R1

LINK, LIFT

$

$

Not available

Cub Cadet IH-18495-R1

BOLT, 3/8 x 1-1/4 ZND HEX-HD MACH
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-274993-R1

NUT, 3/8-16 CAD HEX. LOCK

$

$

Currently unavailable

3

540391-R1

LIFT, RAKE

$

$

Not available

4

540398-R1

CLEVIS, SWIVEL

$

$

Not available

22004-R1

PIN, 3/16 x 2 ZN SLT SPRING

$

$

Not available

Cub Cadet IH-178373-R1

WASHER, 17/32 x 1 x 16 GA C-Z
(Superseded to 936-0160)

$3.99

$

In Stock, Qty 17

0

5

540400-R1

SUPPORT, FRONT RAKE PIVOT

$

$

Not available

12872-R1

BOLT, 5/16 x 1 ZND SQ-NK CRG

$

$

Not available

Cub Cadet IH-120214

WASHER 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet IH-540401-R1

PRONG, RAKE

$

$

Currently unavailable

Cub Cadet 120382

WASHER, 3/8 C-Z MED LOCK

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

7

374434-R1

CLEVIS

$

$

Not available

8

Cub Cadet IH-150724-C1

PIN, QUICK ATTACHABLE COTTER

$

$

Currently unavailable

9

23885-R1

PIN, 1/2 x 1-7/16 C-Z STD-HD

$

$

Not available

10

21987-R1

PIN, 1/4 x 1-1/8 C-Z STD-HD

$

$

Not available

Cub Cadet IH-150724-C1

PIN, QUICK ATTACHABLE COTTER

$

$

Currently unavailable

11

540403-R1

BAR W/CHAIN, RH

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 ZND SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-274993

NUT, 3/8-16 CAD HEX. LOCK
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

12

540402-R1

BAR W/CHAIN, LH

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 ZND SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-274993

NUT, 3/8-16 CAD HEX. LOCK
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

13

540405-R1

SUPPORT W/CHAIN, RH

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 ZND SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-274993

NUT, 3/8-16 CAD HEX. LOCK
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

14

540404-R1

SUPPORT W/CHAIN, LH

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 ZND SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-274993

NUT, 3/8-16 CAD HEX. LOCK
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

15

540406-R1

BLADE, REAR CENTER RAKE

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 ZND SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-274993

NUT, 3/8-16 CAD HEX. LOCK
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

16

540407-R1

BLADE, REAR CENTER RAKE

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 ZND SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-274993

NUT, 3/8-16 CAD HEX. LOCK
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

17

540408-R1

BLADE, REAR CENTER RAKE

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 ZND SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-274993

NUT, 3/8-16 CAD HEX. LOCK
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

18

Cub Cadet IH-540392-R1

PIN, SHEAR

$

$

Not available

19

Cub Cadet IH-480523-R1

PIN, QUICK ATTACHABLE COTTER
(Superseded to 714-0117)

$3.99

$

In Stock, Qty 11

0

20

540394-R1

PLATE, AXLE TIE

$

$

Not available

21

540395-R1

BRACKET, TRACTOR MOUNTING

$

$

Not available

18786-R1

BOLT, 3/8 x 3-1/2 ZND HEX-HD MACH

$

$

Not available

Cub Cadet 120382

WASHER, 3/8 C-Z MED LOCK

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

17452-R1

BOLT, 1/2-13 x 1-1/4 ZND HEX-HD MACH

$

$

Not available

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120378

NUT, 1/2-13 X-Z HEX.
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

22

21578-R1

PIN, 3/8 x 2-1/8 C-Z STD-HD

$

$

Not available

23

Cub Cadet IH-475579-R1

PIN, HAIR
(Superseded to 714-3020)

$3.99

$

In Stock, Qty 9

0

24

Cub Cadet IH-110146-R91

FITTING, 1/4 UNF STR LUB

$

$

Not available

25

540399-R1

CHAIN, 9 LINKS 3/16 GALV

$

$

Not available

26

540412-R1

CHAIN, 1/4 PROOF LINK

Note: 3 LINKS GALV CONNECTING FRONT RAKES

$

$

Not available

27

541292-R1

SKID

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 X 1 ZND SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0
