AE 401 H - Billy Goat 19" Aerator ENGINE Parts Diagram

19" Aerator

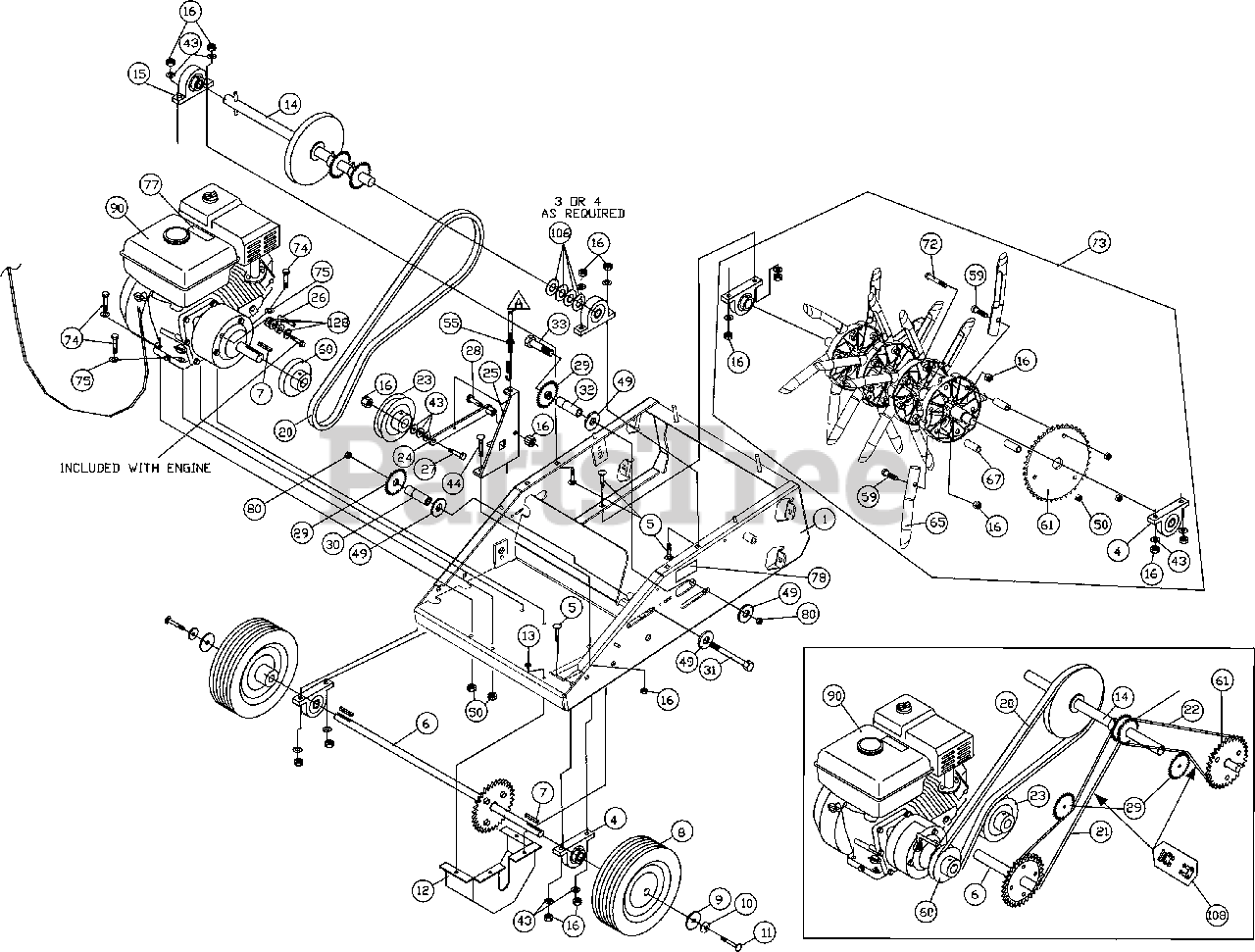

ENGINE Parts Diagram

  • Title

1

Billy Goat 360324

FRAME ASSEMBLY WA AE402

$703.99

$

Usually ships in 2-11 days

0

4

Billy Goat 350133

BEARING 3/4" PILLOW BLOCK

$37.99

$

In Stock, only 2 left!

0

5

Billy Goat 8024060

CARRIAGE BOLT 3/8-16 x 1 1/2

$1.49

$

Usually ships in 2-11 days

0

6

Billy Goat 360332

FRONT AXLE ASSY

$135.99

$

Usually ships in 2-11 days

0

7

Billy Goat 9201080

KEY SQUARE 3/16 x 3/16 x 1.25

$

$

Not available

8

Billy Goat 360388

WHEEL 10.5" SEMI PN. W3/4" KEYED HUB

$128.99

$

In Stock, only 2 left!

0

9

Billy Goat 8172020

FENDER WASHER 5/16"

$0.99

$

In Stock, only 2 left!

0

10

Billy Goat 430298

WASHER LOCK 5/16 TWISTED TOOTH

$1.99

$

In Stock, only 4 left!

0

11

Billy Goat 8041028

SCREWCAP 5/16-18 x 1"

$0.99

$

In Stock, Qty 11

0

12

Billy Goat 360248

GUARD DIFFERENTIAL AE
(Superseded to 360354)

$85.99

$

Usually ships in 2-11 days

0

13

Billy Goat 890359

SCREW SELF TAP 1/4 x 1/2"

$1.49

$

In Stock, Qty 8

0

14

Billy Goat 360331

JACKSHAFT AERATOR ASSY

$326.99

$

Usually ships in 2-11 days

0

15

Billy Goat 810700

BEARING 1" PILLOW BLOCK

$63.99

$

Usually ships in 2-11 days

0

16

Billy Goat 8160003

NUT LOCK 3/8-16

$0.99

$

In Stock, Qty 15

0

20

Billy Goat 360120

BELT 4L x 43" POWER RATED

$57.99

$

In Stock, only 2 left!

0

21

Billy Goat 360115

CHAIN #40 x 94 PITCH O-RING (WHEEL)

$181.99

$

Usually ships in 2-11 days

0

22

Billy Goat 360114

CHAIN #40 x 76 PITCH O-RING (TINE)

$160.99

$

Usually ships in 2-11 days

0

23

Billy Goat 500270

PULLEY IDLER 4.5"

$59.99

$

Usually ships in 2-11 days

0

24

Billy Goat 510199

ARM IDLER WA

$40.99

$

Usually ships in 2-11 days

0

25

Billy Goat 360121

BRACKET MOUNT IDLER

$

$

Not available

26

Billy Goat 360219

BELT FINGER FRONT AE
(Superseded to 360220)

$27.99

$

Usually ships in 2-11 days

0

27

Billy Goat 8041054

SCREWCAP 3/8"-16 X 2" HCS ZP

$0.99

$

In Stock, only 3 left!

0

28

Billy Goat 500114

BOLT SHOULDER 1/2 x 1

$9.49

$

In Stock, only 1 left!

0

29

Billy Goat 360116

SPROCKET IDLER 17T x 5/8" BORE

$57.99

$

Usually ships in 2-11 days

0

30

Billy Goat 360123

SPACER SPROCKET IDLER 2.5"

$13.99

$

Usually ships in 2-11 days

0

31

Billy Goat 8041106

SCREW CAP 1/2 - 13 x 4

$3.99

$

Usually ships in 2-11 days

0

32

Billy Goat 360124

SPACER SPROCKET IDLER 1.175"

$12.99

$

Usually ships in 2-11 days

0

33

Billy Goat 8041102

SCREW CAP 1/2 - 13 x 3"

$2.99

$

In Stock, only 1 left!

0

43

Billy Goat 8172009

WASHER FLAT 3/8 SAE

$1.49

$

In Stock, only 2 left!

0

44

Billy Goat 8024058

CARRIAGE BOLT 3/8"-16 X 1"

$1.49

$

In Stock, Qty 5

0

49

Billy Goat 8171006

FLAT WASHER 1/2"

$0.99

$

In Stock, Qty 10

0

50

Billy Goat 8160002

NUT LOCK 5/16-18

$0.99

$

In Stock, Qty 11

0

55

Billy Goat 360313

CABLE CLUTCH ASSY

$44.99

$

In Stock, only 4 left!

0

59

Billy Goat 8041052

SCREWCAP 3/8 - 16 X 1/2"

$1.49

$

Usually ships in 2-11 days

0

60

Billy Goat 610417

PULLEY ENGINE

$44.99

$

Usually ships in 2-11 days

0

61

Billy Goat 360350

SPROCKET 42 T 1" CENTER HOLE

$62.99

$

Usually ships in 2-11 days

0

65

Billy Goat 360100

TINE

$17.99

$

In Stock, only 2 left!

0

67

Billy Goat 360351

SPACER SPROCKET AE REEL

$10.99

$

Usually ships in 2-11 days

0

72

Billy Goat 8041034

SCREWCAP 5/16"-18 X 2 1/2" GR 5

$0.99

$

Usually ships in 2-11 days

0

73

Billy Goat 360352

TINER ASSY AE401

$

$

Currently unavailable

74

Billy Goat 8041030

SCREW CAP 5/16 - 18 x 1.5"

$0.99

$

Usually ships in 2-11 days

0

75

Billy Goat 8171003

WASHER FLAT CUT 5/16

$0.99

$

In Stock, Qty 16

0

77

N/A

LABEL WARNING FUEL EN/SP

$

$

Not available

78

Billy Goat 900327

LABEL DANGER GUARD

$3.99

$

In Stock, only 3 left!

0

80

Billy Goat 8161044

NUT LOCK 1/2 -13 THIN

$0.99

$

In Stock, Qty 10

0

90

Billy Goat 360278

ENGINE

$

$

Currently unavailable

106

Billy Goat 8172021

WASHER 1.062" ID X 1.75 OD

$4.49

$

Usually ships in 2-11 days

0

108

Billy Goat 360205

CHAIN MASTER LINK

$16.99

$

Usually ships in 2-11 days

0

128

Billy Goat 8171002

WASHER 1/4" FC

$0.99

$

In Stock, Qty 6

0
