AET 60 - Billy Goat 60" Towable Aerator Parts Assembly Parts Diagram

60" Towable Aerator

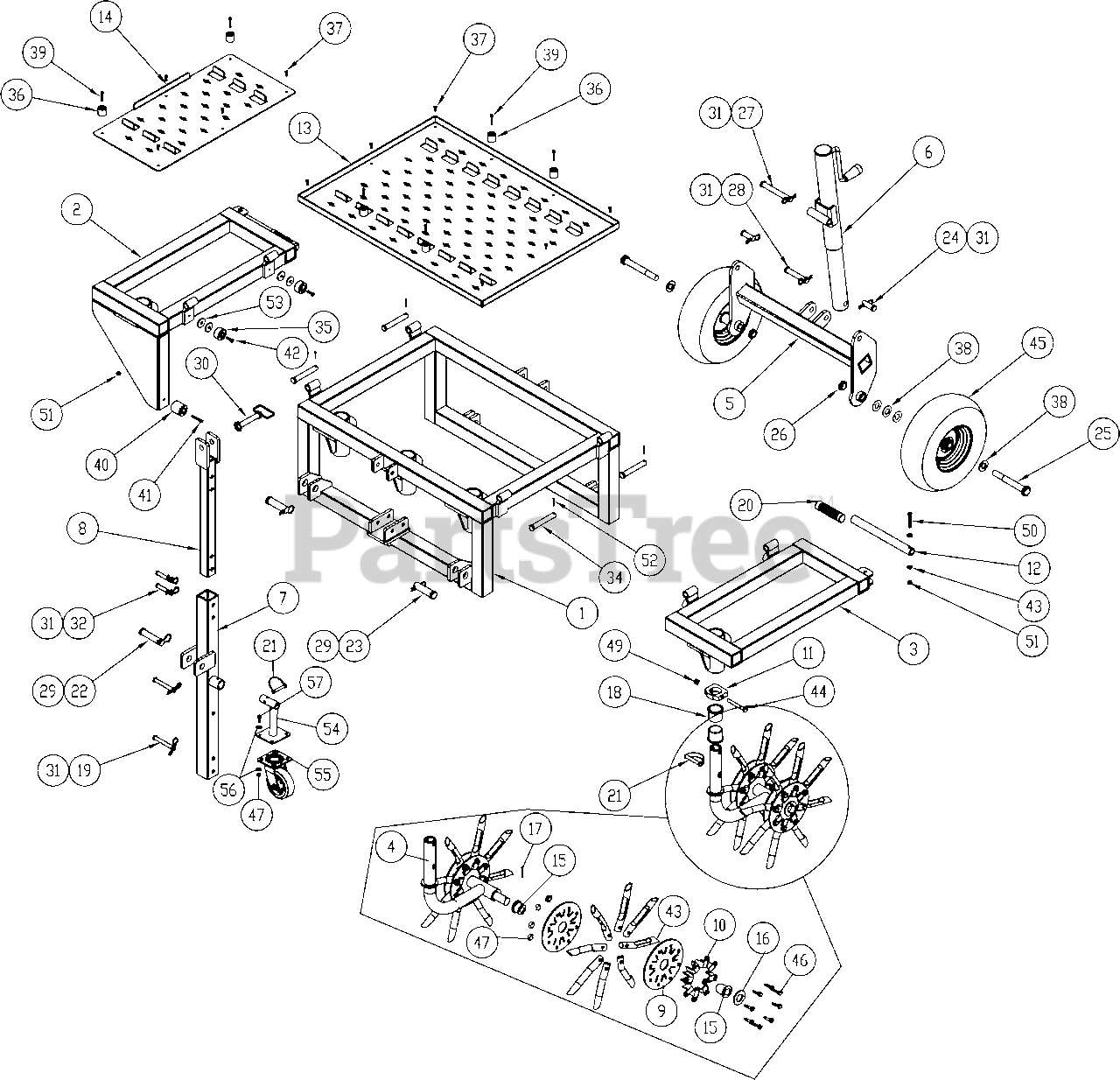

Parts Assembly Parts Diagram

  • Title

1

Billy Goat 381556

BASE FRAME WELDMENT

$

$

Currently unavailable

2

Billy Goat 381157

LEFT WING FRAME WELDMENT
(Superseded to 351309)

$8.99

$

In Stock, only 2 left!

0

3

Billy Goat 381158

RIGHT WING FRAME WELDMENT

$3.99

$

In Stock, only 1 left!

0

4

Billy Goat 381559

TINE AXLE WELDMENT
(Superseded to 380238)

$1175.99

$

Usually ships in 2-11 days

0

5

Billy Goat 381560

WHEEL ASSEMBLY

$

$

Currently unavailable

6

Billy Goat 381561

JACK ASSEMBLY

$414.99

$

Usually ships in 2-11 days

0

7

Billy Goat 381562

OUTER TOW LINK

$

$

Currently unavailable

8

Billy Goat 381563

INNER TOW LINK

$

$

Currently unavailable

9

Billy Goat 381564

TINE HUB PLATE
(Superseded to 380238)

$1175.99

$

Usually ships in 2-11 days

0

10

Billy Goat 381565

TINE HUB C-CLIP
(Superseded to 380238)

$1175.99

$

Usually ships in 2-11 days

0

11

Billy Goat 381566

ARM SWIVEL STOP

$66.99

$

Usually ships in 2-11 days

0

12

Billy Goat 381567

WING HANDLE

$

$

Currently unavailable

13

Billy Goat 381568

BASE LOAD PAN

$

$

Currently unavailable

14

Billy Goat 381569

WING LOAD PAN

$

$

Currently unavailable

15

Billy Goat 381570

TINE SHOULDER BUSHING
(Superseded to 380238)

$1175.99

$

Usually ships in 2-11 days

0

16

Billy Goat 8172017

WASHER 1/2" FLAT

$0.99

$

Usually ships in 2-11 days

0

17

Billy Goat 381572

COTTER PIN 1/8" X 1.5"

$

$

Not available

18

Billy Goat 381573

TINE ARM SHOULDER BUSHING

$102.99

$

Usually ships in 2-11 days

0

19

Billy Goat 381574

CLEVIS PIN 7/16" X 3.5"

$

$

Currently unavailable

20

Billy Goat 500267

GRIP HANDLE 1" X 5.5"

$7.49

$

Usually ships in 2-11 days

0

21

Billy Goat 381576

LOCK PIN 3/8" X 2.5"

$4.49

$

Usually ships in 2-11 days

0

22

Billy Goat 381577

CLEVIS PIN 3/4" X 3.5"

$14.99

$

Usually ships in 0 days

0

23

Billy Goat 381578

CLEVIS PIN 7/8" X 3"

$14.99

$

Usually ships in 0 days

0

24

Billy Goat 381579

CLEVIS PIN 5/8" X 1.75"

$

$

Currently unavailable

25

Billy Goat 8041175

SCREWCAP 3/4"-10 X 5 1/2" HCS ZP

$8.99

$

Usually ships in 2-11 days

0

26

Billy Goat 381581

NUT JAM 3/4"-10

$

$

Currently unavailable

27

Billy Goat 381582

CLEVIS PIN 5/8" X 5"

$

$

Currently unavailable

28

Billy Goat 381583

CLEVIS PIN 5/8" X 3.5"

$

$

Currently unavailable

29

Billy Goat 381584

COTTER HAIR PIN 1/8" FOR 3/4 TO 7/8"

$0.99

$

Usually ships in 0 days

0

30

Billy Goat 381585

HITCH PIN 5/8" X 4" W/LYNCH PIN

$37.99

$

Usually ships in 2-11 days

0

31

Billy Goat 381586

COTTER HAIR PIN 1/8" FOR 7/16 TO 5/8

$

$

Currently unavailable

32

Billy Goat 381587

CLEVIS PIN 7/16" X 2.5"

$3.99

$

Usually ships in 0 days

0

33

Billy Goat 381588

TINE 3/4" CLOSED SPOON 14 GA.
(Superseded to 360100)

$17.99

$

In Stock, only 2 left!

0

34

Billy Goat 381589

CLEVIS PIN 5/8" X 4"

$

$

Currently unavailable

35

Billy Goat 381590

RUBBER BUMPER 1.5" X .75" THK

$9.49

$

Usually ships in 2-11 days

0

36

Billy Goat 381591

RUBBER BUMPER 1.0" X 1.0" THK

$

$

Currently unavailable

37

Billy Goat 8050057

SHCS 10-32 X 1/2"

$0.99

$

Usually ships in 2-11 days

0

38

Billy Goat 8171008

WASHER 3/4" SAE

$0.99

$

Usually ships in 2-11 days

0

39

Billy Goat 381158

SHCS 10-32 X 1.25"

$3.99

$

In Stock, only 1 left!

0

40

Billy Goat 381595

RUBBER BUMPER 1.5" X 1.5" THK

$

$

Currently unavailable

41

Billy Goat 381596

SHCS 1/4"-20 X 1.5"

$

$

Currently unavailable

42

Billy Goat 381597

SHCS 1/4"-20 X .75"

$

$

Currently unavailable

43

Billy Goat 381598

BELLEVILLE WASHER .25 X .69" THK

$

$

Currently unavailable

44

Billy Goat 8041058

SCREWCAP 3/8"-16 X 3" HCS ZP

$1.49

$

In Stock, only 4 left!

0

45

Billy Goat 381440

WHEEL 13"
(Superseded to 440054)

$119.99

$

In Stock, only 2 left!

0

46

Billy Goat 8041031

BOLT HEX HEAD 5/16"-18 X 1 3/4

$0.99

$

In Stock, only 3 left!

0

47

Billy Goat 8160002

NUTLOCK 5/16"-18

$0.99

$

In Stock, Qty 11

0

49

Billy Goat 8160003

NUTLOCK 3/8"-16 HEX ZP

$0.99

$

In Stock, Qty 14

0

50

Billy Goat 8041010

SCREWCAP 1/4"-20 X 2" HCS ZP

$0.99

$

In Stock, Qty 7

0

51

Billy Goat 8160001

NUTLOCK 1/4"-20 HEX ZP

$0.99

$

In Stock, only 2 left!

0

52

Billy Goat 8197031

COTTER PIN 1/8" X 1"

$0.99

$

Usually ships in 2-11 days

0

53

Billy Goat 8172020

WASHER FENDER 5/16"

$0.99

$

In Stock, Qty 6

0

54

Billy Goat 380134

TRANSPORT WHEEL STAND

$189.99

$

Usually ships in 2-11 days

0

55

Billy Goat 610101

CASTER 5" DIA X 2"

$77.99

$

Usually ships in 2-11 days

0

56

Billy Goat 8171003

WASHER 5/16" FLAT

$0.99

$

In Stock, Qty 16

0

57

Billy Goat 8041028

SCREWCAP 5/16"-18 X 1" GR 5 HCS ZP

$0.99

$

In Stock, Qty 11

0
