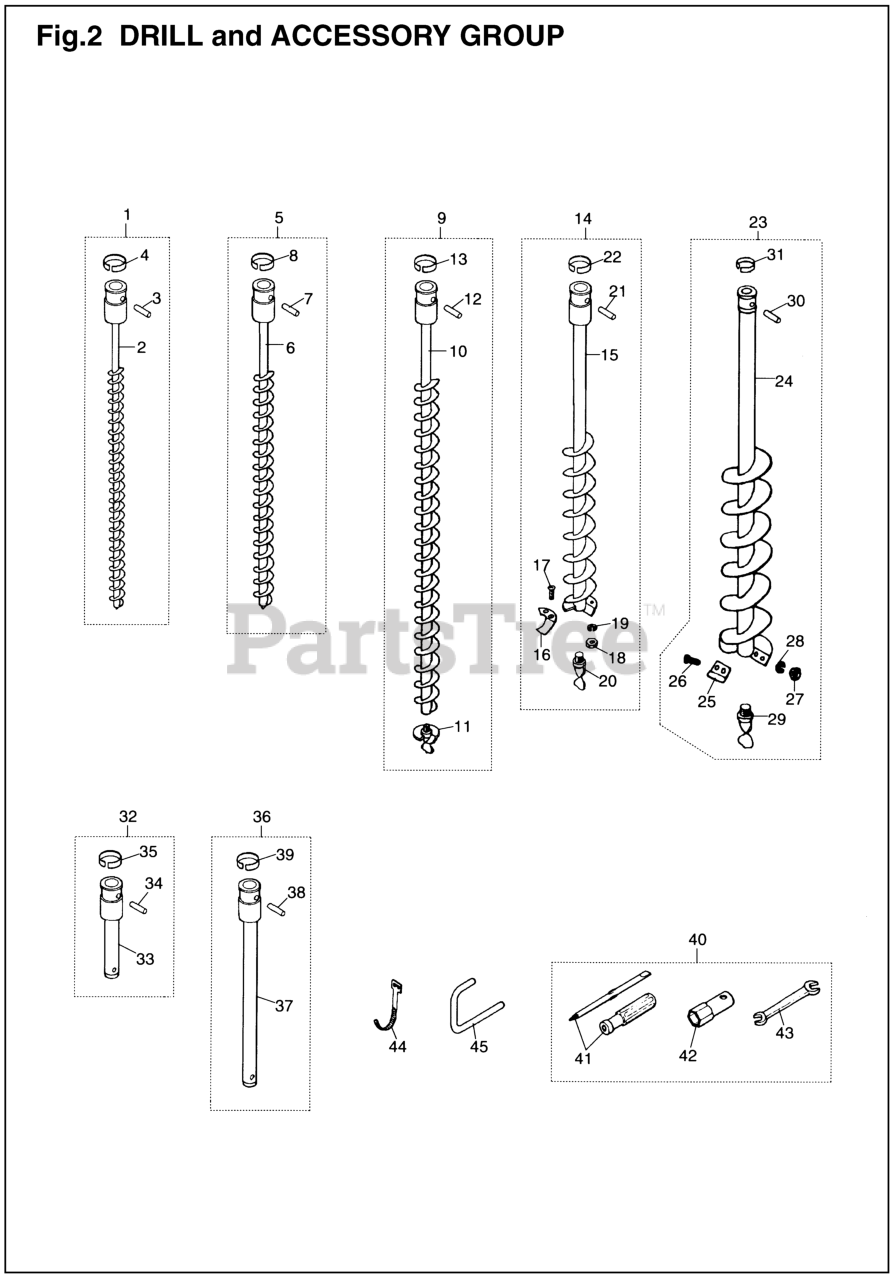

AG 2300 - RedMax Auger (SN: 660001 & Above) *Attachments Parts Diagram

Auger

*Attachments Parts Diagram

  • Title

1

RedMax 514143301

$

$

Not available

2

RedMax 526431001

$

$

Not available

3

RedMax 514130301

PIN

$3.99

$

Usually ships in 3-10 days

0

4

RedMax 514130401

CLIP

$3.99

$

Usually ships in 3-10 days

0

5

RedMax 514143501

$

$

Not available

6

RedMax 526431101

$

$

Not available

7

RedMax 514130301

PIN

$3.99

$

Usually ships in 3-10 days

0

8

RedMax 514130401

CLIP

$3.99

$

Usually ships in 3-10 days

0

9

RedMax 514132501

$

$

Not available

10

RedMax 514132601

$

$

Not available

11

RedMax 514132901

BIT

$145.99

$

Usually ships in 3-10 days

0

12

RedMax 514130301

PIN

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 514130401

CLIP

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 514139301

$

$

Not available

15

RedMax 514139401

$

$

Not available

16

RedMax 514133301

TIP.S60

$

$

Not available

17

RedMax 516069301

SCREW, M6 x 20

$

$

Not available

18

RedMax 510486101

NUT

$3.99

$

In Stock, Qty 5

0

19

RedMax 510488001

WASHER

$4.99

$

In Stock, only 1 left!

0

20

RedMax 514141001

OBSOLETE - BIT

$

$

Not available

21

RedMax 514130301

PIN

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 514130401

CLIP

$3.99

$

Usually ships in 3-10 days

0

23

RedMax 514139701

DRILL.S90 ASSY

$

$

Not available

24

RedMax 514140301

$

$

Not available

25

RedMax 514140401

TIP.S90

$

$

Not available

26

RedMax 516069301

SCREW, M6 x 20

$

$

Not available

27

RedMax 510486101

NUT

$3.99

$

In Stock, Qty 5

0

28

RedMax 510488001

WASHER

$4.99

$

In Stock, only 1 left!

0

29

RedMax 514141001

OBSOLETE - BIT

$

$

Not available

30

RedMax 514130301

PIN

$3.99

$

Usually ships in 3-10 days

0

31

RedMax 514130401

CLIP

$3.99

$

Usually ships in 3-10 days

0

32

RedMax 514136601

$

$

Not available

33

RedMax 514136701

$

$

Not available

34

RedMax 514130301

PIN

$3.99

$

Usually ships in 3-10 days

0

35

RedMax 514130401

CLIP

$3.99

$

Usually ships in 3-10 days

0

36

RedMax 514137201

$

$

Not available

37

RedMax 514137301

$

$

Not available

38

RedMax 514130301

PIN

$3.99

$

Usually ships in 3-10 days

0

39

RedMax 514130401

CLIP

$3.99

$

Usually ships in 3-10 days

0

40

RedMax 515247101

TOOL SET

$14.99

$

Usually ships in 3-10 days

0

41

RedMax 506689501

DRIVER

$7.99

$

Usually ships in 3-10 days

0

42

RedMax 513181801

SOCKET

$

$

Not available

43

RedMax 506615001

SPANNER

$7.49

$

In Stock, Qty 10

0

44

RedMax 514364001

BAND(KZC)

$6.49

$

Usually ships in 3-10 days

0

45

RedMax 515247201

OBSOLETE - PIN

$

$

Not available
