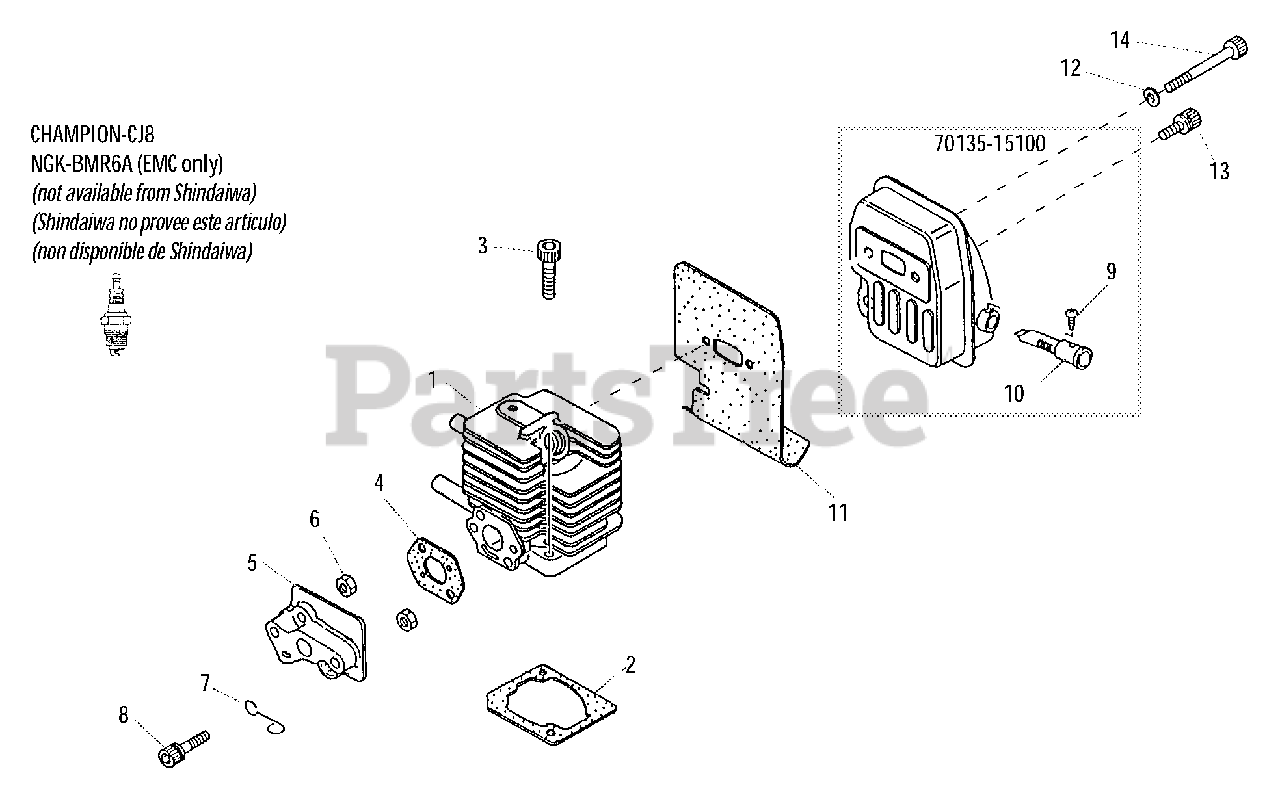

AH 230 - Shindaiwa Articulating Hedge Trimmer Cylinder, Muffler Parts Diagram

Articulating Hedge Trimmer

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 20016-12110

CYLINDER
(Superseded to 20016-12112)

$58.99

$

In Stock, only 2 left!

0

2

Echo 20016-12120

GASKET, CYLINDER
(Superseded to V100000490)

$1.99

$

In Stock, Qty 5

0

3

Echo 01020-05250

BOLT 5×25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 9

0

4

Echo 20016-12220

GASKET
(Superseded to 20016-12222)

$1.49

$

In Stock, only 4 left!

0

5

Echo 20016-12211

INSULATOR BLOCK
(Superseded to 20016-12212)

Note: PR191

$13.99

$

In Stock, only 2 left!

0

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 20016-12310

CLIP, VENT ASSY
(Superseded to A358000040)

$1.49

$

In Stock, only 4 left!

0

8

Echo 11022-05305

BOLT SS M5×30
(Superseded to V203000480)

Note: PR191

$4.99

$

In Stock, only 2 left!

0

70135-15100

Echo 70135-15100

MUFFLER ASSY
(Superseded to A030000120)

$37.99

$

Usually ships in 2-4 days

0

9

Echo 01270-03062

SCREW, TAPPING 3×6
(Superseded to 9137403006)

$1.49

$

In Stock, only 2 left!

0

10

Echo 70103-15150

SCREEN, SPARK ARRESTER
(Superseded to A310000260)

$9.99

$

In Stock, only 2 left!

0

11

Echo 20016-15121

GASKET, EXHAUST
(Superseded to 20016-15122)

$9.49

$

In Stock, only 2 left!

0

12

Echo 01610-05080

WASHER, FLAT 5.5×10×0.8
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, only 3 left!

0

14

Echo 01020-05500

BOLT M5×50
(Superseded to 90010505050)

$1.99

$

In Stock, Qty 11

0
