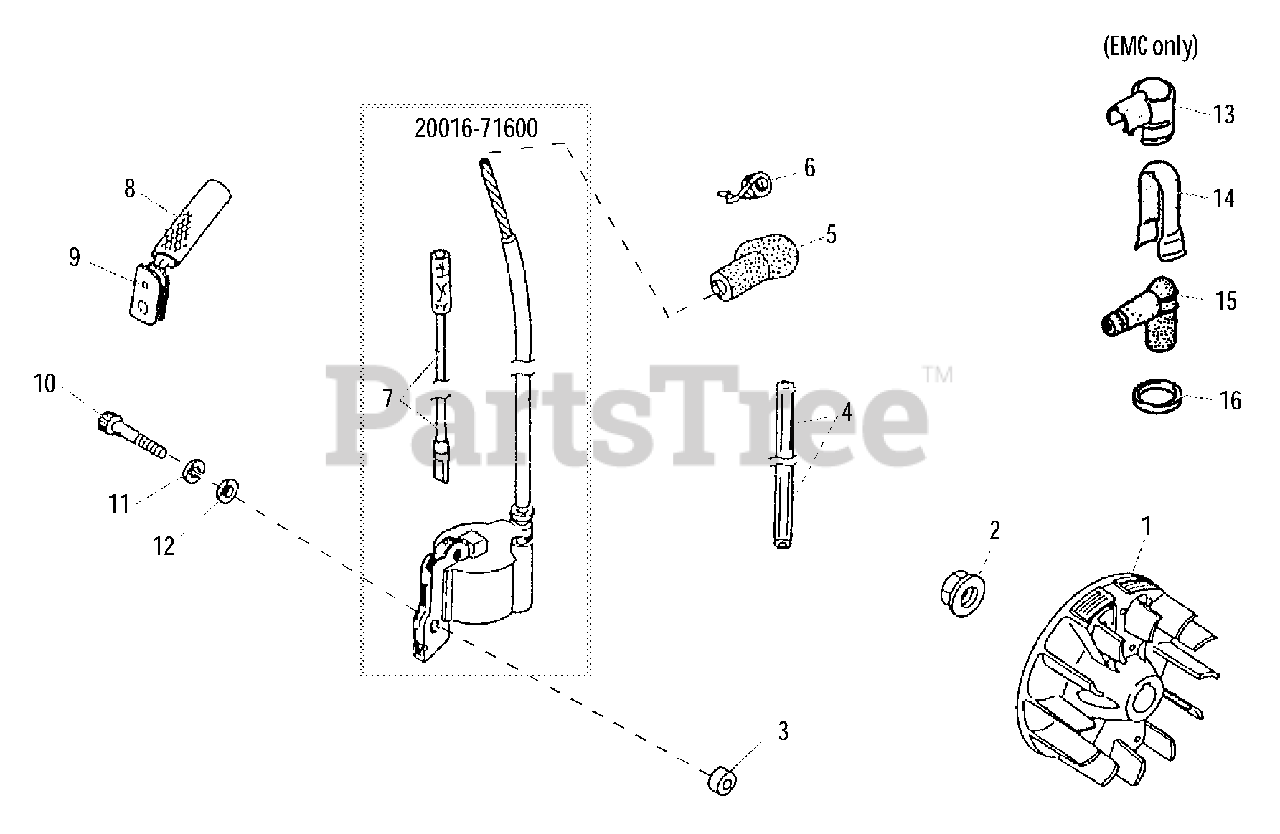

AH 230 - Shindaiwa Articulating Hedge Trimmer Flywheel Coil Parts Diagram

Articulating Hedge Trimmer

Flywheel Coil Parts Diagram

  • Title

1

Echo 20016-71200

FLYWHEEL
(Superseded to A409000730)

$27.99

$

Usually ships in 2-4 days

0

2

Echo 20035-71220

NUT - 8
(Superseded to V265000140)

$0.99

$

In Stock, Qty 10

0

3

Echo 70030-71620

INSULATOR
(Superseded to V322000040)

$0.99

$

In Stock, Qty 12

0

4

Echo 20016-71660

TUBE
(Superseded to V475004840)

$0.99

$

In Stock, Qty 9

0

5

Echo 22102-72220

CAP, SPARK PLUG
(Superseded to A427000100)

$2.49

$

In Stock, Qty 20+

0

6

Echo 20000-72230

TERMINAL, SPARK PLUG CAP
(Superseded to A426000050)

$1.49

$

In Stock, Qty 20+

0

20016-71600

Echo 20016-71600

IGNITION COIL ASSY
(Superseded to 20016-71601)

$50.99

$

In Stock, Qty 6

0

7

Echo 20016-71640

LEAD - IGNITION
(Superseded to 20016-71641)

$3.99

$

Usually ships in 2-4 days

0

8

Echo 20016-71651

TUBE
(Superseded to V475005140)

$0.99

$

In Stock, Qty 12

0

9

Echo 20010-72110

GROMMET
(Superseded to V135000100)

$1.49

$

In Stock, Qty 6

0

10

Echo 01020-04260

SCREW - 4X26
(Superseded to Discontinued)

$

$

Not available

11

Echo 01600-04101

LOCKWASHER - 4
(Superseded to 90060500004)

$0.99

$

In Stock, Qty 20+

0

12

Echo 01613-04080

WASHER - 4
(Superseded to 90060300004)

$0.99

$

In Stock, Qty 10

0

13

Echo 20000-72241

CAP, SPARK PLUG
(Superseded to A429000110)

Note: EMC ONLY

$1.99

$

In Stock, Qty 6

0

14

Echo 70180-72260

SHIELD
(Superseded to V151000050)

Note: EMC ONLY

$5.49

$

Usually ships in 2-4 days

0

15

Echo 20010-72221

CAP, SPARK PLUG
(Superseded to A427000090)

Note: EMC ONLY

$5.99

$

In Stock, Qty 7

0

16

Echo 20000-72250

SEAL, DUST
(Superseded to V495001440)

Note: EMC ONLY

$0.99

$

In Stock, Qty 6

0
