AH 231 - Shindaiwa Articulating Hedge Trimmer CARBURETOR Parts Diagram

Articulating Hedge Trimmer

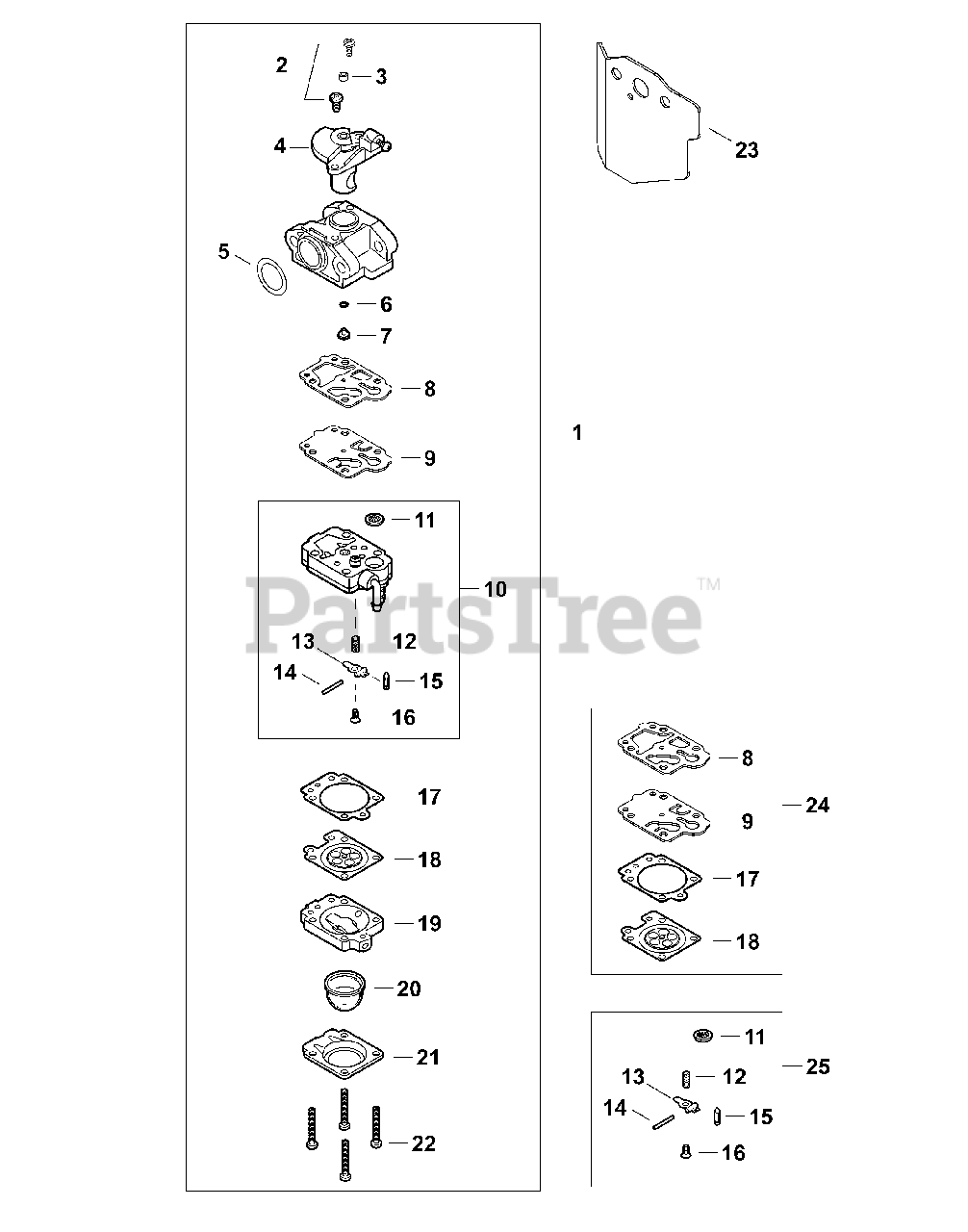

CARBURETOR Parts Diagram

  • Title

1

Echo A021002150

CARBURETOR

Note: Includes Items 2-22

$

$

Not available

2

Echo 12311444330

SCREW, THROTTLE COLLAR

$0.99

$

Usually ships in 2-4 days

0

3

Echo A259000000

PLUG

$0.99

$

Usually ships in 2-4 days

0

4

Echo 12311644330

VALVE ASSY, THROTTLE

$

$

Not available

5

Echo 90072000015

O-RING 15

$2.49

$

In Stock, Qty 11

0

6

Echo 12318305960

O-RING

$19.99

$

In Stock, only 2 left!

0

7

Echo P003000860

JET, MAIN #34

$12.99

$

Usually ships in 2-4 days

0

8

Echo 12312540630

GASKET, PUMP

$5.99

$

In Stock, only 2 left!

0

9

Echo 12311240630

DIAPHRAGM, FUEL PUMP

$14.99

$

In Stock, only 3 left!

0

10

Echo P003003690

BODY ASSY, PUMP

Note: Includes Items 11-16

$15.99

$

Usually ships in 2-4 days

0

11

Echo 12312610631

SCREEN, FUEL INLET

$1.99

$

In Stock, only 3 left!

0

12

Echo P003000450

SPRING, METERING LEVER

$0.99

$

Usually ships in 2-4 days

0

13

Echo 123123-38330

LEVER, METERING
(Superseded to 12312338330)

$7.99

$

In Stock, only 1 left!

0

14

Echo 12313803930

PIN, METERING LEVER

$6.99

$

In Stock, only 3 left!

0

15

Echo 12313719830

VALVE, INLET NEEDLE

$22.99

$

Usually ships in 2-4 days

0

16

Echo 12313905560

SCREW

$0.99

$

Usually ships in 2-4 days

0

17

Echo 12314005560

GASKET, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

18

Echo 12314103930

DIAPHRAGM, METERING

$15.99

$

In Stock, only 3 left!

0

19

Echo 12318005560

BODY ASSY, PURGE

$8.99

$

In Stock, only 2 left!

0

20

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

21

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, only 1 left!

0

22

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0

23

Echo V103000740

GASKET, CARBURETOR

$5.49

$

Usually ships in 2-4 days

0

24

Echo 99909-159

GASKET / DIAPHRAGM KIT

$15.99

$

In Stock, only 2 left!

0

25

Echo 99909-160

VALVE KIT, INLET NEEDLE

$8.99

$

In Stock, only 2 left!

0
