Shindaiwa AH 231 - Shindaiwa Articulating Hedge Trimmer CRANKCASE / ENGINE COVER Parts Lookup with Diagrams

1

Echo P021017910

CRANKCASE ASSY, S

Note: Includes Items 2-4

$44.99

$

Usually ships in 2-4 days

2

Echo A120000480

CRANKCASE S

$28.99

$

Usually ships in 2-4 days

3

Echo V505000140

SEAL, OIL 12

$3.49

$

In Stock, only 3 left!

4

Echo V592000310

BEARING, BALL 6001 C3

$6.99

$

In Stock, Qty 10

5

Echo P021017920

CRANKCASE ASSY, M

Note: Includes Items 6-9

$50.99

$

Usually ships in 2-4 days

6

Echo A120000490

CRANKCASE M

$36.99

$

Usually ships in 2-4 days

7

Echo V622000040

PIN, LOCATING Ø4×8

(Superseded to 90033040080) 

$1.49

$

In Stock, Qty 14

8

Echo V505000080

SEAL, OIL 12

$3.49

$

In Stock, Qty 5

9

Echo V592000310

BEARING, BALL 6001 C3

$6.99

$

In Stock, Qty 10

10

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 20+

11

Echo P021027690

COVER ASSY, ENGINE

Note: Includes Items 12-16

$

Not available 

12

Echo A160001390

COVER, ENGINE

$

Not available 

13

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 20+

14

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

15

Echo V353000430

INSULATOR 5 MM

$1.99

$

In Stock, only 3 left!

16

Echo V490000680

CLIP

$1.49

$

In Stock, Qty 5

17

Echo X504003240

LABEL, AH231

$2.99

$

Usually ships in 2-4 days

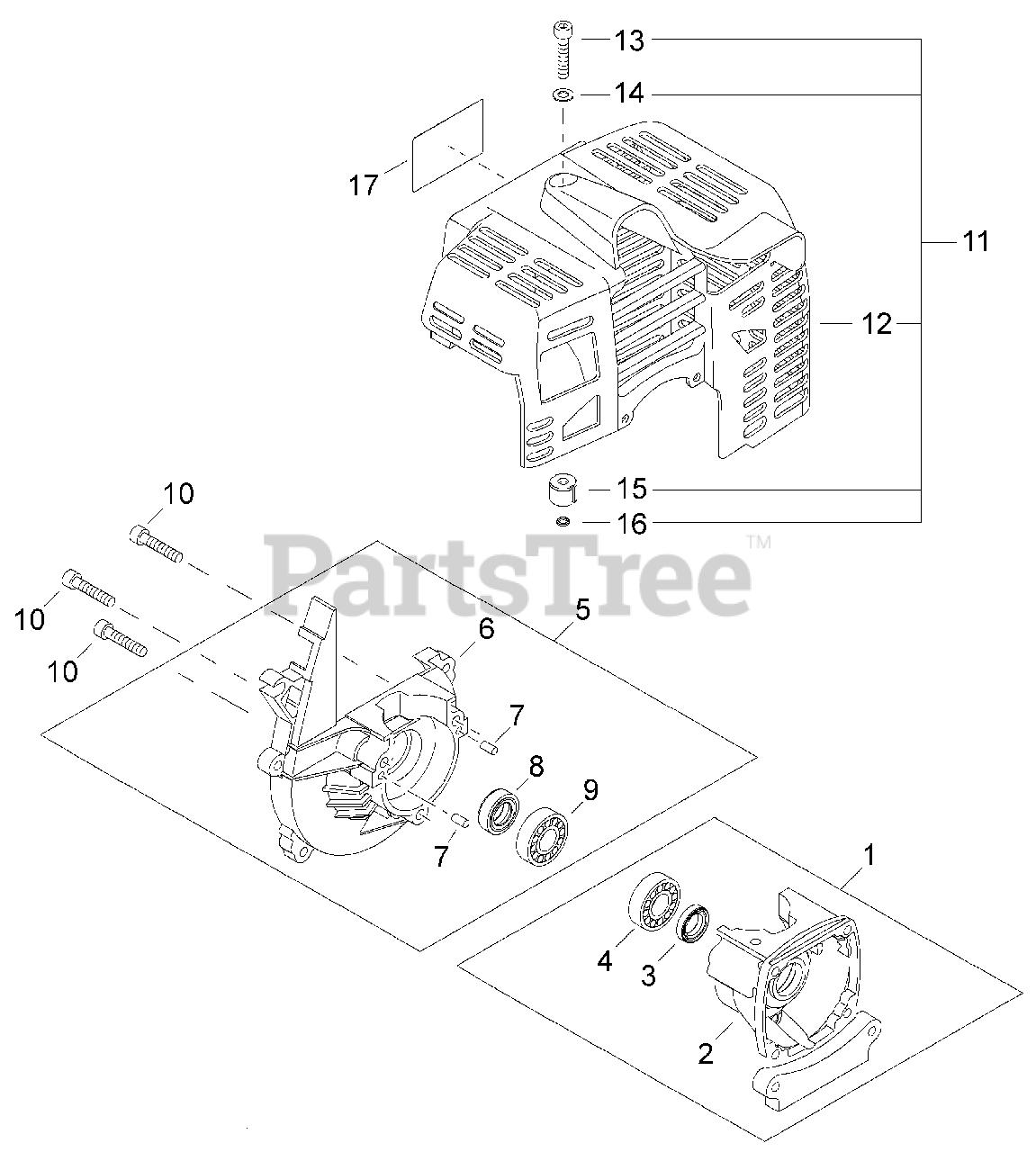

AH 231 - Shindaiwa Articulating Hedge Trimmer CRANKCASE / ENGINE COVER Parts Diagram

CRANKCASE / ENGINE COVER Parts Diagram

Echo P021017910

Echo A120000480

Echo V505000140

Echo V592000310

Echo P021017920

Echo A120000490

Echo V622000040

Echo V505000080

Echo V592000310

Echo 90010505025

Echo P021027690

Echo A160001390

Echo 90010505025

Echo 900603-00005

Echo V353000430

Echo V490000680

Echo X504003240
