AH 231 - Shindaiwa Articulating Hedge Trimmer GEAR CASE Parts Diagram

Articulating Hedge Trimmer

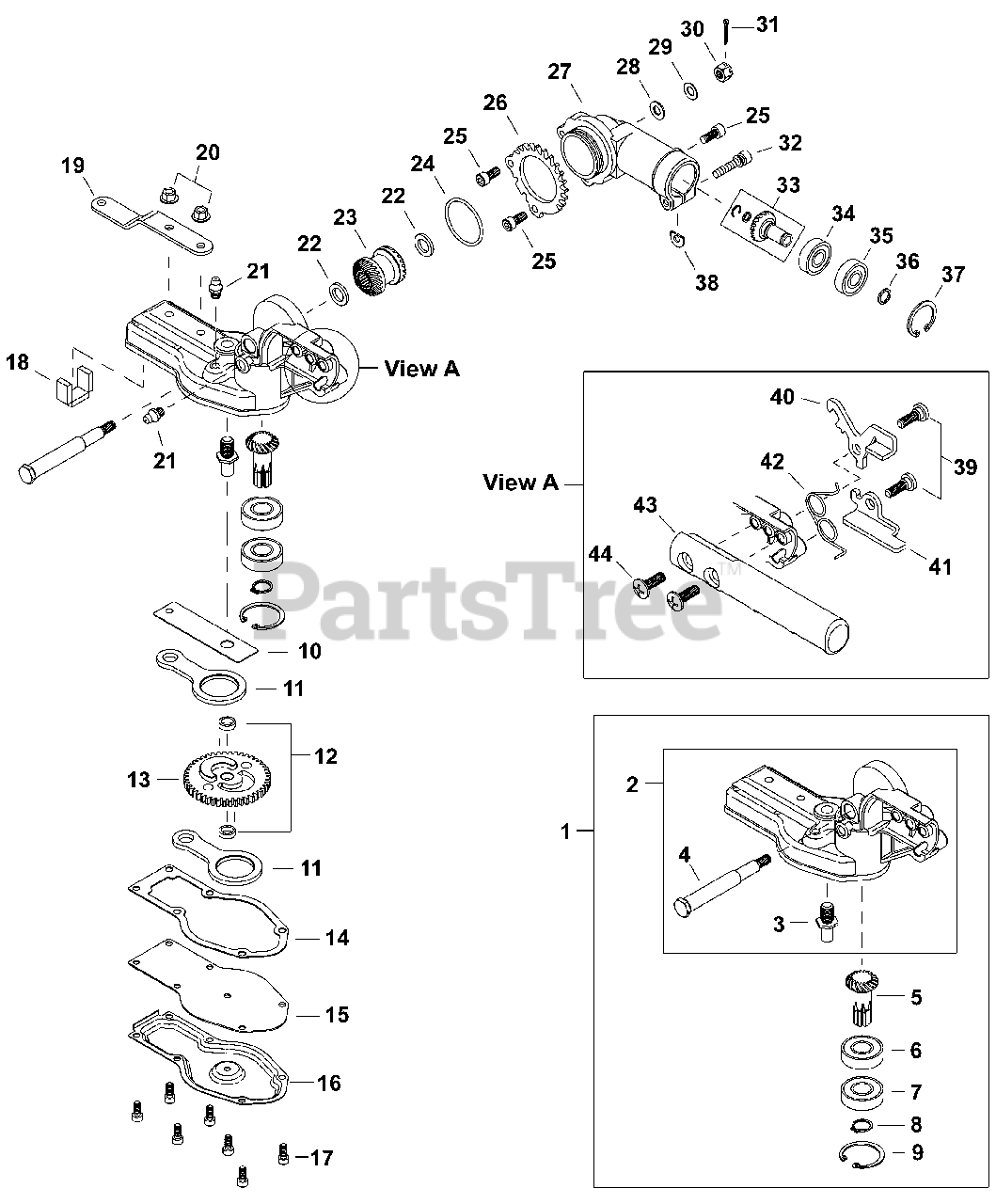

GEAR CASE Parts Diagram

  • Title

1

Echo P021028791

GEAR CASE HOUSING KIT

Note: Includes Items 2-9

$115.99

$

In Stock, only 1 left!

0

2

Echo P021028811

GEAR CASE HOUSING ASSY

Note: Includes Items 3-4

$90.99

$

In Stock, only 2 left!

0

3

Echo C534000660

MAINSHAFT

$9.99

$

In Stock, only 1 left!

0

4

Echo C534000670

SHAFT

$21.99

$

Usually ships in 2-4 days

0

5

Echo V655000060

SHAFT, PINION
(Superseded to P021035780)

$80.99

$

In Stock, only 2 left!

0

6

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$11.99

$

In Stock, Qty 7

0

7

Echo 90080406001

BEARING, BALL 6001ZZ

$13.99

$

In Stock, Qty 5

0

8

Echo 9242312000

RING, SNAP Ø12

$1.49

$

In Stock, only 3 left!

0

9

Echo 9242428000

RING, SNAP Ø28
(Superseded to 90070200028)

$1.99

$

In Stock, Qty 20+

0

10

Echo V150002460

PLATE, GUIDE

$1.99

$

Usually ships in 2-4 days

0

11

Echo C532000220

CONROD

$12.99

$

In Stock, Qty 13

0

12

Echo V355000440

SPACER Ø11×Ø8×3.4

$2.49

$

In Stock, only 2 left!

0

13

Echo V650000530

GEAR, CAM

$35.99

$

Usually ships in 2-4 days

0

14

Echo V110000140

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 7

0

15

Echo C542000040

SPACER

$8.99

$

Usually ships in 2-4 days

0

16

Echo C539000080

COVER, GEAR CASE
(Superseded to C539000081)

$10.99

$

Usually ships in 2-4 days

0

17

Echo 90010504010

BOLT 4×10

$1.49

$

In Stock, Qty 20+

0

18

Echo V541000220

PACKING, FELT

$1.99

$

In Stock, only 4 left!

0

19

Echo V152002390

BRACKET, CUTTER
(Superseded to V152002391)

$8.49

$

In Stock, only 1 left!

0

20

Echo V263000330

NUT, FLANGE M5

$1.49

$

In Stock, Qty 19

0

21

Echo V187000080

FITTING, GREASE

$1.99

$

In Stock, Qty 5

0

22

Echo V307000250

COLLAR Ø16×Ø10×L= 2

$1.99

$

In Stock, only 1 left!

0

23

Echo P021034470

GEAR, BEVEL
(Superseded to P021035780)

$80.99

$

In Stock, only 2 left!

0

24

Echo 9250703150

O-RING

$1.99

$

In Stock, only 3 left!

0

25

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, only 3 left!

0

26

Echo C465000020

RING, LOCKING

$36.99

$

Usually ships in 2-4 days

0

27

Echo C531000700

HOUSING, UPPER GEAR CASE

$55.99

$

Usually ships in 2-4 days

0

28

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

29

Echo V347000030

WASHER, CONE M6

$1.49

$

In Stock, Qty 9

0

30

Echo V264000170

NUT M6

$1.99

$

In Stock, only 2 left!

0

31

Echo 9300216150

PIN, COTTER Ø1.6×15

$1.49

$

In Stock, Qty 6

0

32

Echo V203000560

BOLT M5×25

$1.99

$

In Stock, only 3 left!

0

33

Echo V000000090

PINION SET, BEVEL
(Superseded to P021035780)

$80.99

$

In Stock, only 2 left!

0

34

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

35

Echo 90080400609

BEARING, BALL 609ZZ

$18.99

$

In Stock, only 2 left!

0

36

Echo V582000130

RING, SNAP
(Superseded to 90070600009)

$1.49

$

In Stock, Qty 17

0

37

Echo 9242424000

RING, SNAP Ø24

$1.49

$

In Stock, only 4 left!

0

38

Echo V340000300

D-WASHER

$1.49

$

In Stock, Qty 6

0

39

Echo V204000580

BOLT M6

$1.99

$

In Stock, Qty 20+

0

40

Echo C661000070

LEVER, LOCK

$10.99

$

In Stock, only 4 left!

0

41

Echo C661000080

RELEASE, LOCK

$7.49

$

Usually ships in 2-4 days

0

42

Echo V452000710

SPRING, TORSION

$2.99

$

In Stock, only 2 left!

0

43

Echo C403000480

LEVER, ADJUSTMENT

$6.49

$

In Stock, only 2 left!

0

44

Echo 9146306020

SCREW, TRUSS M6×20

$1.49

$

Usually ships in 2-4 days

0
