Shindaiwa AH 231 - Shindaiwa Articulating Hedge Trimmer PISTON / CLUTCH Parts Lookup with Diagrams

1

Echo P021027070

PISTON KIT

Note: Includes Items 2-8

$84.99

$

Usually ships in 2-4 days

2

Echo V100000360

GASKET, CYLINDER

$2.49

$

In Stock, only 2 left!

3

Echo A101000400

RING, PISTON

$6.99

$

In Stock, only 1 left!

4

Echo V580000070

RING, SNAP

$1.49

$

In Stock, Qty 20+

5

Echo A100000720

PISTON

$50.99

$

Usually ships in 2-4 days

6

Echo V606000060

PIN, PISTON 8

$3.99

$

In Stock, only 1 left!

7

Echo V306000250

WASHER, THRUST 8

$2.99

$

Usually ships in 2-4 days

8

Echo V553000080

BEARING, NEEDLE 8

$7.49

$

Usually ships in 2-4 days

9

Echo A011000930

CRANKSHAFT

(Superseded to P021048010) 

$73.99

$

In Stock, only 1 left!

10

Echo 9311503010

KEY, WOODRUFF 3×10

$0.99

$

In Stock, Qty 13

11

Echo A409000730

FLYWHEEL

$32.99

$

Usually ships in 2-4 days

12

Echo V265000140

NUT M8

$1.49

$

In Stock, only 3 left!

13

Echo A056000260

CLUTCH ASSY

Note: Includes Items 14-19

$35.99

$

In Stock, Qty 17

14

Echo A557000040

BOLT, CLUTCH

$3.49

$

In Stock, only 4 left!

15

Echo V346000040

WASHER, SPRING

$1.49

$

In Stock, Qty 8

16

Echo A056000510

SHOE ASSY, CLUTCH

Note: Includes Items 17-18

$28.99

$

Usually ships in 2-4 days

17

Echo A553000060

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

18

Echo A566000050

SPRING, CLUTCH

$3.49

$

In Stock, Qty 10

19

Echo V304000150

WASHER 6 MM

$1.49

$

In Stock, Qty 6

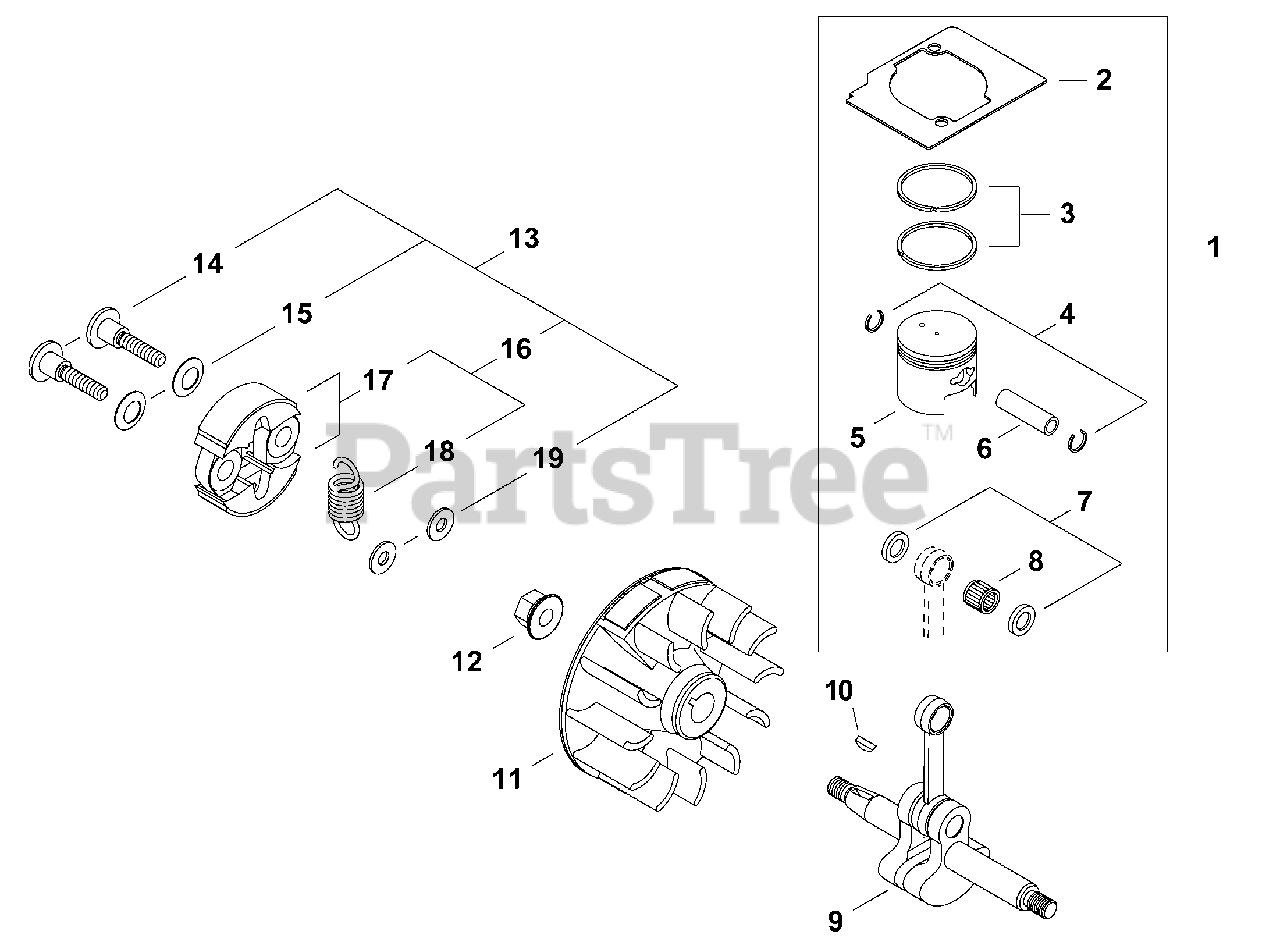

AH 231 - Shindaiwa Articulating Hedge Trimmer PISTON / CLUTCH Parts Diagram

PISTON / CLUTCH Parts Diagram

Echo P021027070

Echo V100000360

Echo A101000400

Echo V580000070

Echo A100000720

Echo V606000060

Echo V306000250

Echo V553000080

Echo A011000930

Echo 9311503010

Echo A409000730

Echo V265000140

Echo A056000260

Echo A557000040

Echo V346000040

Echo A056000510

Echo A553000060

Echo A566000050

Echo V304000150
