AH 231 - Shindaiwa Articulating Hedge Trimmer THROTTLE CONTROL STARTING S/N 2030001 Parts Diagram

Articulating Hedge Trimmer

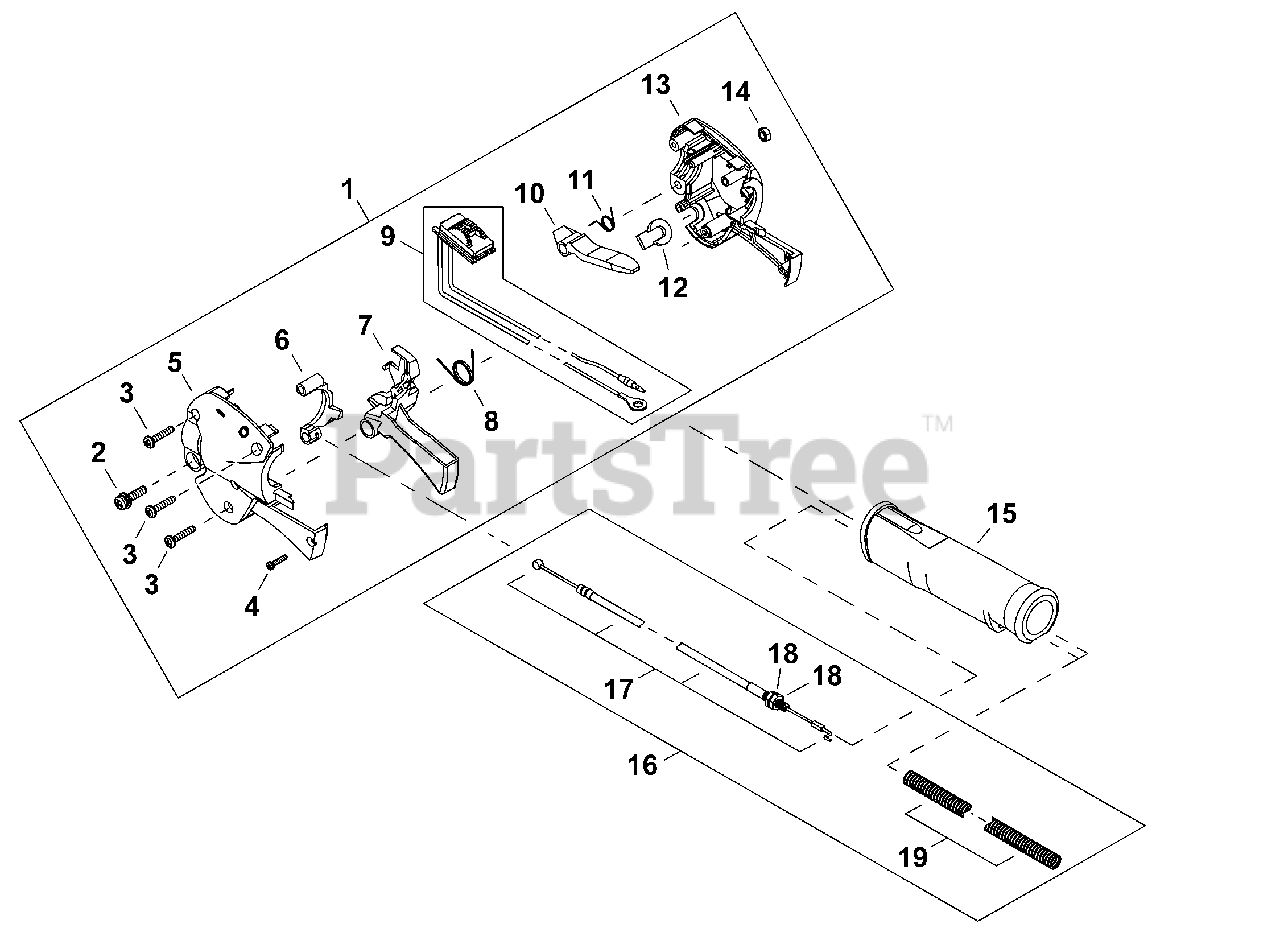

THROTTLE CONTROL STARTING S/N 2030001 Parts Diagram

  • Title

1

Echo C044000450

THROTTLE CONTROL ASSY

Note: Includes Items 2-14

$62.99

$

In Stock, only 1 left!

0

2

Echo V253000340

SCREW M5×20
(Superseded to Discontinued)

$

$

Not available

3

Echo V252000380

SCREW, TAPPING M4×20

$1.99

$

Usually ships in 2-4 days

0

4

Echo V251000040

SCREW, TAPPING 3×14
(Superseded to P022023330)

$1.49

$

Usually ships in 2-4 days

0

5

Echo C401000170

CONTROL HANDLE - LEFT

$11.99

$

Usually ships in 2-4 days

0

6

Echo C461000030

LOCKOUT, THROTTLE

$3.49

$

Usually ships in 2-4 days

0

7

Echo C450000490

TRIGGER, THROTTLE

$11.99

$

In Stock, only 1 left!

0

8

Echo V452000700

SPRING, THROTTLE RETURN

$1.99

$

In Stock, Qty 7

0

9

Echo A045000230

SWITCH, ON-OFF

$24.99

$

Usually ships in 2-4 days

0

10

Echo C460000190

LEVER, THROTTLE LOCKOUT

$4.99

$

In Stock, only 4 left!

0

11

Echo V452000500

SPRING, THROTTLE LOCKOUT

$1.99

$

In Stock, Qty 5

0

12

Echo V162000350

PLUG

$1.99

$

Usually ships in 2-4 days

0

13

Echo C401000160

CONTROL HANDLE - RIGHT

$12.99

$

Usually ships in 2-4 days

0

14

Echo 9201705000

NUT M5

$1.49

$

In Stock, Qty 10

0

15

Echo C412000260

GRIP, REAR
(Superseded to C412000261)

$12.99

$

In Stock, only 3 left!

0

16

Echo P021028640

CABLE ASSY, THROTTLE

Note: Includes Items 17-19

$20.99

$

Usually ships in 2-4 days

0

17

Echo V430002650

CABLE, THROTTLE

$10.99

$

In Stock, only 2 left!

0

18

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

19

Echo V475004520

TUBE, PLASTIC PROTECTIVE

$1.99

$

In Stock, Qty 12

0
