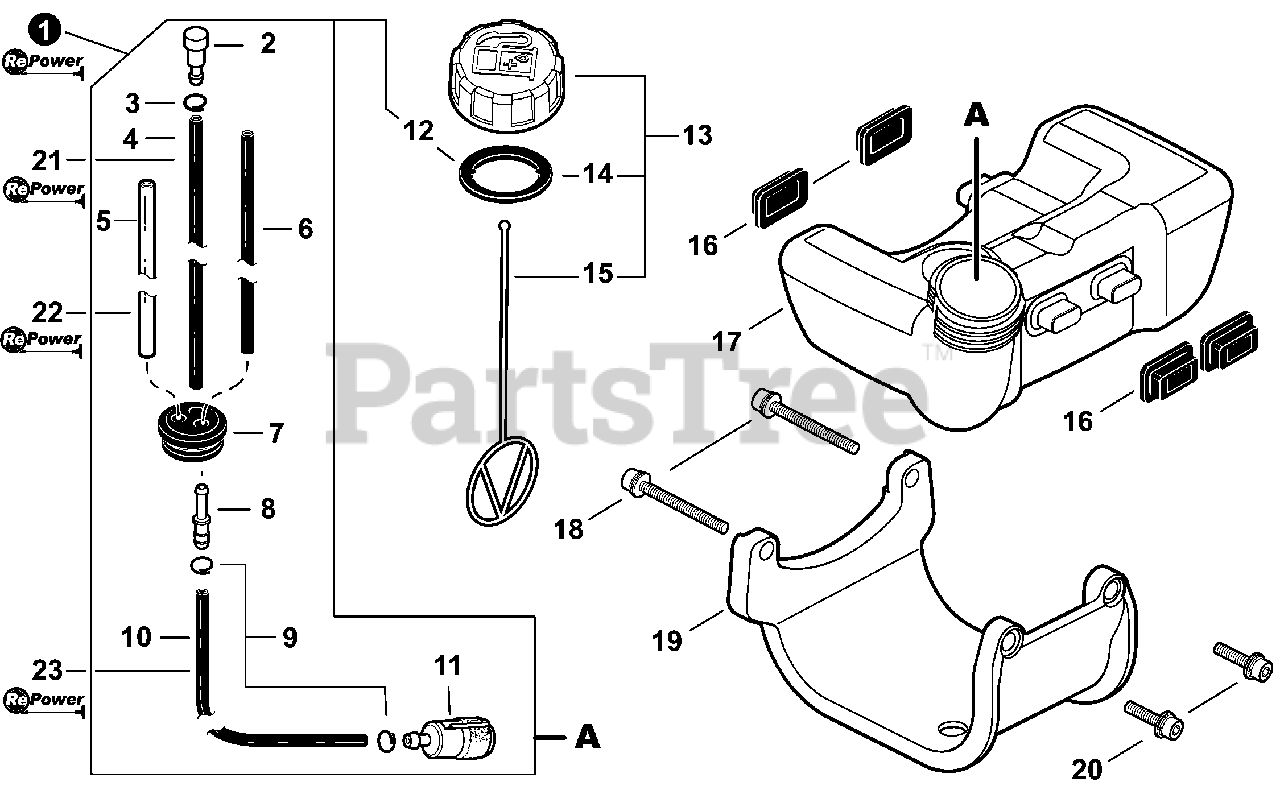

AH 242 - Shindaiwa Articulating Hedge Trimmer (SN: T17511001001 - T17511999999) FUEL SYSTEM S/N: T17511002548 - T17511999999 Parts Diagram

Articulating Hedge Trimmer

FUEL SYSTEM S/N: T17511002548 - T17511999999 Parts Diagram

  • Title

1

Echo 90140BP

FUEL SYSTEM KIT - REPOWER
(Superseded to 90140)

Note: Includes Items 2-12

$31.99

$

In Stock, only 2 left!

0

2

Echo A356000040

VENT ASSY

$6.99

$

In Stock, Qty 13

0

3

Echo V490001230

CLIP 6.5MM

$0.99

$

In Stock, Qty 20+

0

4

Echo 13011054430

PIPE, FUEL 3×6×105 BLACK
(Superseded to 13011054431)

$2.99

$

In Stock, only 3 left!

0

5

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

$2.49

$

In Stock, only 2 left!

0

6

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

$3.49

$

In Stock, Qty 20+

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE 5×3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

10

Echo V471003730

PIPE, FUEL 3×5×140 BLACK
(Superseded to V471003731)

$1.49

$

In Stock, Qty 12

0

11

Echo A369000440

FILTER, FUEL

$7.99

$

In Stock, Qty 20+

0

12

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 20+

0

13

Echo P021041930

CAP ASSY, FUEL

Note: Includes Items 14-15

$6.49

$

In Stock, Qty 20+

0

14

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 20+

0

15

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

16

Echo V420002220

CUSHION, FUEL TANK

$1.49

$

In Stock, Qty 20+

0

17

Echo A350000972

TANK, FUEL

$25.99

$

In Stock, Qty 7

0

18

Echo 90016205040

BOLT 5×40

$1.49

$

In Stock, only 2 left!

0

19

Echo A175000080

GUARD, FUEL TANK

$8.49

$

In Stock, only 2 left!

0

20

Echo 90016205018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

21

Echo 90015

PIPE, BULK - 3×6mm BLACK

$44.99

$

In Stock, Qty 6

0

22

Echo 90017

PIPE, BULK - 3×6mm CLEAR

$64.99

$

In Stock, only 2 left!

0

23

Echo 90014

PIPE, BULK - 3×5mm BLACK

$47.99

$

In Stock, Qty 16

0
