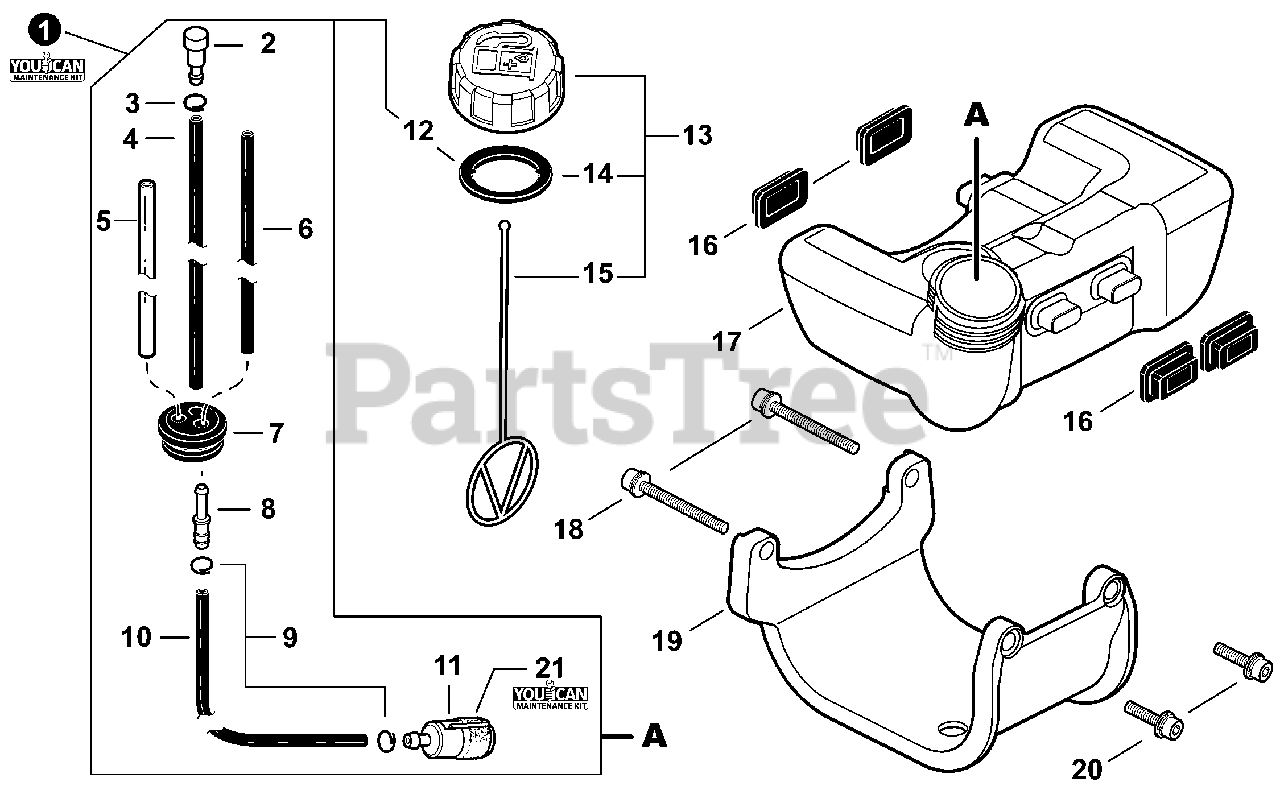

AH 242 - Shindaiwa Articulating Hedge Trimmer (SN: T48514001001 - T48514999999) Fuel System Parts Diagram

Articulating Hedge Trimmer

Fuel System Parts Diagram

  • Title

1

Echo 84000Y

FUEL SYSTEM KIT - YOUCANT

Note: Includes Items 2-12 See Maintenance Kits

$33.99

$

In Stock, only 2 left!

0

2

Echo A356000040

VENT ASSY

$7.49

$

In Stock, Qty 20+

0

3

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

4

Echo 13011054430

PIPE, FUEL 3×6×105 BLACK
(Superseded to 13011054431)

$2.99

$

In Stock, only 2 left!

0

5

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

$2.99

$

In Stock, Qty 9

0

6

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

$3.99

$

In Stock, Qty 13

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 12

0

10

Echo V471003730

PIPE, FUEL 3×5×140 BLACK
(Superseded to V471003731)

$1.49

$

In Stock, Qty 11

0

11

Echo A369000440

FILTER, FUEL

Note: Included in Tune-up Kit

$8.49

$

In Stock, Qty 20+

0

12

Echo V107000150

GASKET, FUEL CAP

Note: Included in Fuel Cap Assy

$4.99

$

In Stock, only 3 left!

0

13

Echo P021041930

CAP ASSY, FUEL

Note: Includes Items 14-15

$6.99

$

Usually ships in 2-4 days

0

14

Echo V107000150

GASKET, FUEL CAP

Note: Included In Fuel System Kit

$4.99

$

In Stock, only 3 left!

0

15

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

16

Echo V420002220

CUSHION, FUEL TANK

$1.49

$

In Stock, Qty 20+

0

17

Echo A350000972

TANK, FUEL

$27.99

$

In Stock, only 2 left!

0

18

Echo 900162-05040

BOLT 5×40

$1.99

$

In Stock, only 1 left!

0

19

Echo A175000080

GUARD, FUEL TANK

$8.99

$

In Stock, only 2 left!

0

20

Echo 90016205018

BOLT 5×18

$0.99

$

In Stock, only 3 left!

0

21

Echo 84016Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$25.99

$

Usually ships in 2-4 days

0
