AH 254 - Shindaiwa Articulating Hedge Trimmer (SN: T12813001001 - T12813999999) Blades, Gear Case Parts Diagram

Articulating Hedge Trimmer

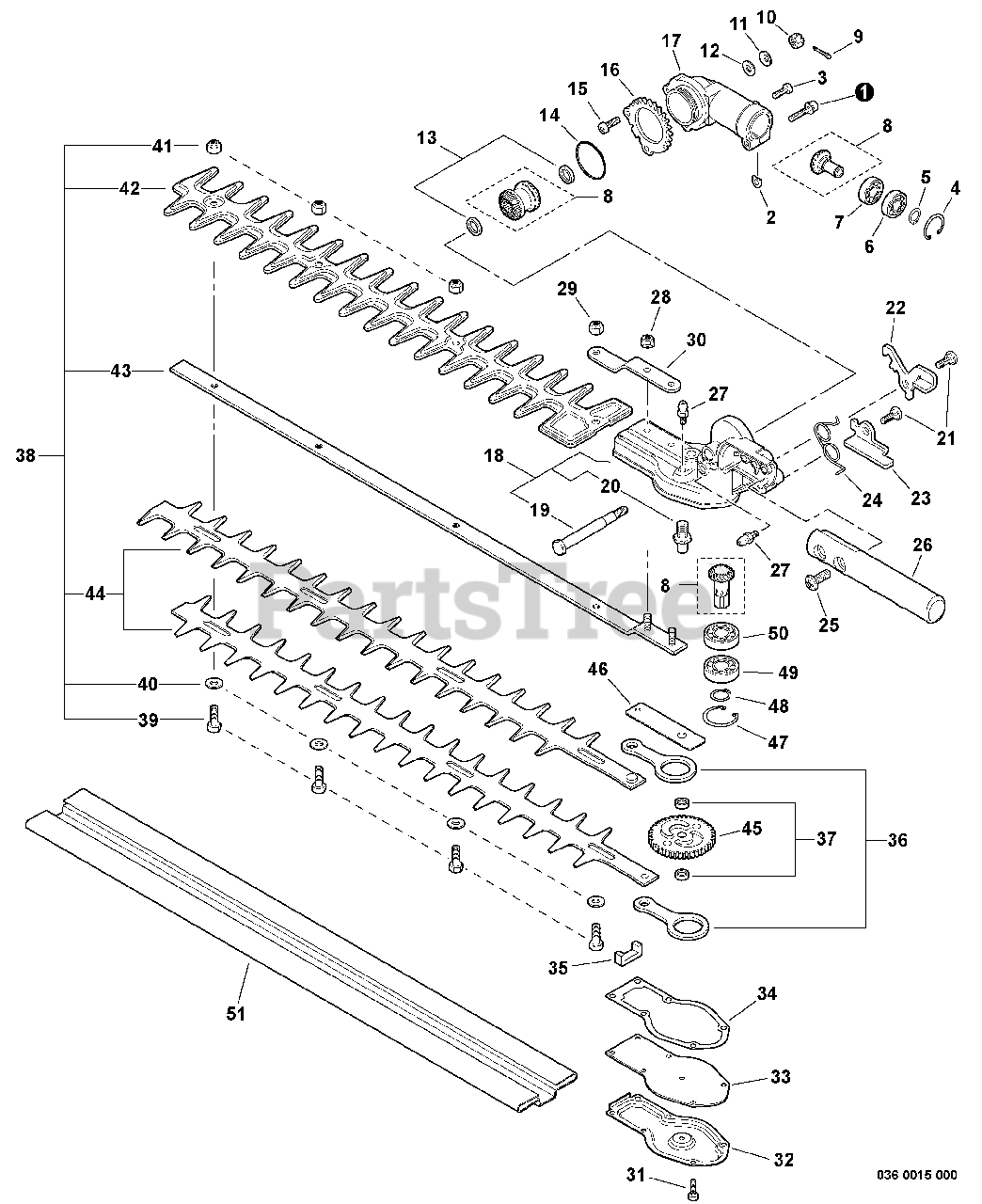

Blades, Gear Case Parts Diagram

  • Title

1

Echo V203000560

SCREW - 5X25

$1.99

$

In Stock, only 3 left!

0

2

Echo V340000300

SHIM

$1.49

$

In Stock, Qty 6

0

3

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 11

0

4

Echo 9242424000

RING, RETAINING - 24

$1.49

$

In Stock, only 4 left!

0

5

Echo 90070600009

RING, RETAINING - 9

$1.49

$

In Stock, Qty 17

0

6

Echo 90080400609

BEARING, BALL - 609

$16.99

$

In Stock, only 3 left!

0

7

Echo 90080000609

BEARING, BALL - 609

$10.99

$

In Stock, Qty 6

0

8

Echo P021035780

GEAR SET

$74.99

$

In Stock, only 2 left!

0

9

Echo 9300216150

PIN, SPLIT - 1.6X15

$1.49

$

In Stock, Qty 7

0

10

Echo V264000170

NUT - 6

$1.99

$

In Stock, only 3 left!

0

11

Echo V347000030

WASHER - CONICAL

$1.49

$

In Stock, Qty 20+

0

12

Echo 90060300006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

13

Echo V307000250

COLLAR - 16X10X2

$1.99

$

In Stock, only 1 left!

0

14

Echo 9250703150

O-RING

$1.99

$

In Stock, only 3 left!

0

15

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 11

0

16

Echo C465000020

RING, LOCK

$33.99

$

Usually ships in 2-4 days

0

17

Echo C531000700

CASE, GEAR - UPPER

$51.99

$

Usually ships in 2-4 days

0

18

Echo P021028810

GEAR CASE ASSY
(Superseded to P021028811)

Note: Includes ITEM 19-20

$83.99

$

In Stock, only 2 left!

0

19

Echo C534000670

BOLT

$19.99

$

Usually ships in 2-4 days

0

20

Echo C534000660

DRIVESHAFT

$9.49

$

Usually ships in 2-4 days

0

21

Echo V204000580

SCREW - 6

$1.99

$

In Stock, Qty 20+

0

22

Echo C661000070

LEVER, LOCK

$9.99

$

In Stock, only 2 left!

0

23

Echo C661000080

RELEASE, LOCK

$6.99

$

Usually ships in 2-4 days

0

24

Echo V452000710

SPRING

$2.99

$

Usually ships in 2-4 days

0

25

Echo 9146306020

SCREW - 6X20

$1.49

$

Usually ships in 2-4 days

0

26

Echo C403000480

HANDLE

$5.99

$

In Stock, only 3 left!

0

27

Echo V187000080

FITTING, GREASE

$1.99

$

In Stock, only 4 left!

0

28

Echo V263000330

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

29

Echo V264000150

LOCKNUT - 6
(Superseded to 43302206460)

$1.49

$

In Stock, Qty 20+

0

30

Echo V152002390

PLATE, ANGLE
(Superseded to V152002391)

$7.99

$

In Stock, only 1 left!

0

31

Echo 90010504010

SCREW - 4X10

$1.49

$

In Stock, Qty 20+

0

32

Echo C539000080

LID, GEAR CASE
(Superseded to C539000081)

$9.99

$

Usually ships in 2-4 days

0

33

Echo C542000040

SPACER

$8.49

$

Usually ships in 2-4 days

0

34

Echo V110000140

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 10

0

35

Echo V541000220

SEAL, FELT

$1.99

$

In Stock, Qty 7

0

36

Echo C532000220

ROD, CONNECTING

$11.99

$

In Stock, Qty 13

0

37

Echo V355000440

SPACER

$2.49

$

In Stock, only 3 left!

0

38

Echo X041000310

BLADE KIT - 22" (55cm) CHROME
(Superseded to X041000311)

Note: Includes ITEM 39-44

$262.99

$

In Stock, Qty 6

0

39

Echo V204000570

BOLT - 6X20

$1.99

$

In Stock, Qty 20+

0

40

Echo V304000240

WASHER - 6

$1.49

$

In Stock, Qty 20+

0

41

Echo V264000150

LOCKNUT - 6
(Superseded to 43302206460)

$1.49

$

In Stock, Qty 20+

0

42

Echo X431000080

SHIELD, BLADE

$19.99

$

In Stock, only 3 left!

0

43

Echo X425000780

SUPPORT, BLADE - 22" (55cm)

$35.99

$

In Stock, only 1 left!

0

44

Echo X411001150

BLADE KIT - 22" (55cm) CHROME
(Superseded to X411001151)

$69.99

$

In Stock, Qty 16

0

45

Echo V650000530

GEAR, CAM

$33.99

$

Usually ships in 2-4 days

0

46

Echo V150002460

PLATE, GUIDE

$1.99

$

Usually ships in 2-4 days

0

47

Echo 9242428000

RING, RETAINING - 28
(Superseded to 90070200028)

$1.99

$

In Stock, Qty 20+

0

48

Echo 9242312000

RING, RETAINING - 12

$1.49

$

In Stock, only 3 left!

0

49

Echo 90080406001

BEARING, BALL - 6001ZZ

$12.99

$

In Stock, Qty 5

0

50

Echo 90080036001

BEARING, BALL - 6001C3

$10.99

$

In Stock, only 1 left!

0

51

Echo X495000410

COVER, BLADE
(Superseded to X495000780)

$11.99

$

Usually ships in 2-4 days

0
