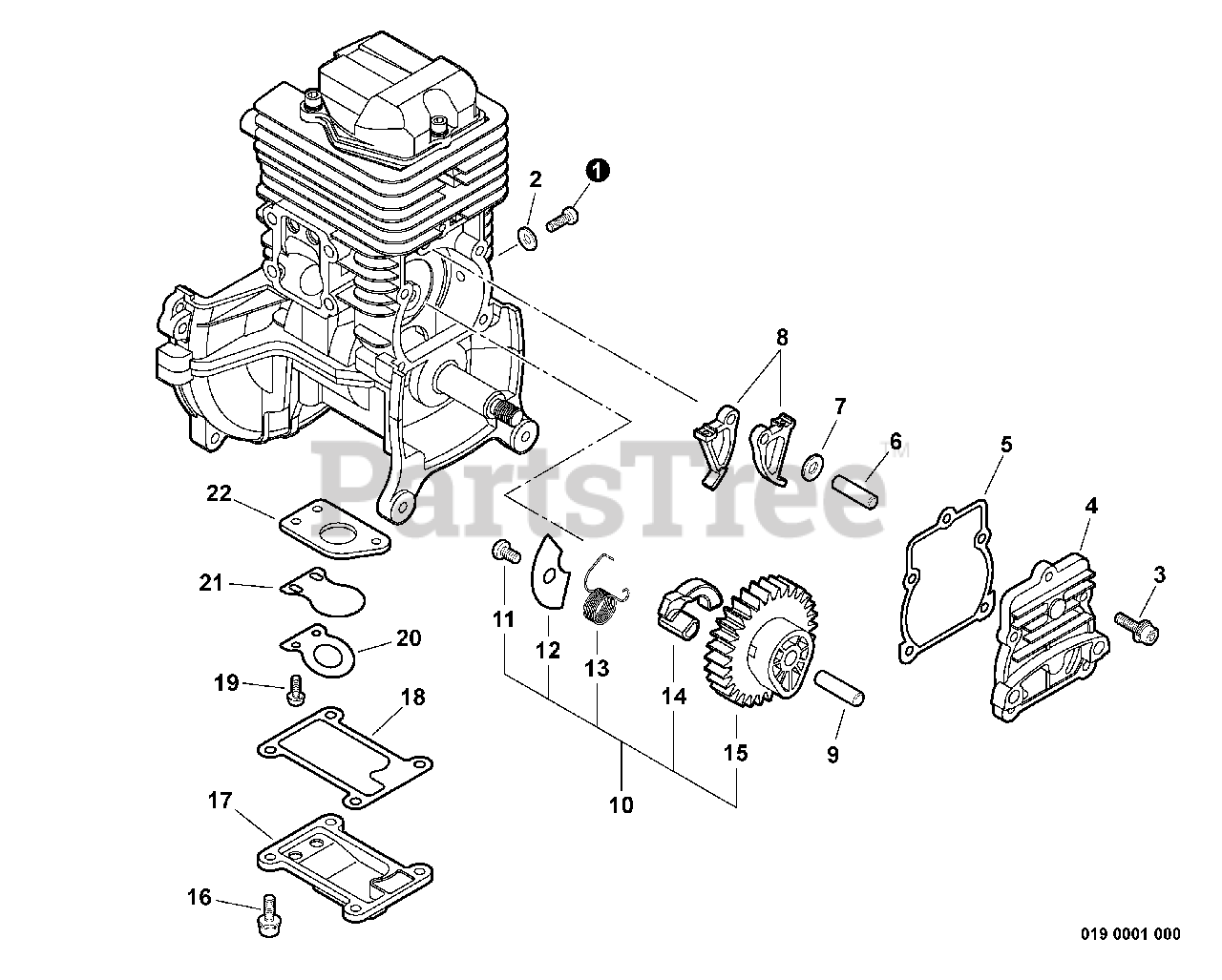

AH 254 - Shindaiwa Articulating Hedge Trimmer (SN: T12813001001 - T12813999999) Cam Gear, Reed Valve Parts Diagram

Articulating Hedge Trimmer

Cam Gear, Reed Valve Parts Diagram

  • Title

1

Echo V253000540

SCREW - 5

$0.99

$

Usually ships in 2-4 days

0

2

Echo V303000120

WASHER - 10

$0.99

$

Usually ships in 2-4 days

0

3

Echo V202000350

SCREW - 4X14

$0.99

$

In Stock, Qty 7

0

4

Echo A136000010

COVER, CAM GEAR
(Superseded to A136000030)

$20.99

$

Usually ships in 2-4 days

0

5

Echo V109000110

GASKET

$1.99

$

In Stock, only 2 left!

0

6

Echo V623000030

SHAFT

$1.99

$

Usually ships in 2-4 days

0

7

Echo V303000220

WASHER - 5

$0.99

$

Usually ships in 2-4 days

0

8

Echo A600000001

FOLLOWER, CAM

$12.99

$

Usually ships in 2-4 days

0

9

Echo V623000030

SHAFT

$1.99

$

Usually ships in 2-4 days

0

10

Echo A063000000

CAM GEAR ASSY

Note: Includes ITEMS 11-15

$17.99

$

In Stock, only 1 left!

0

11

Echo 9144904006

SCREW - 4X6 -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

12

Echo C603000240

PLATE, COVER

$0.99

$

In Stock, only 1 left!

0

13

Echo V452000610

SPRING

$1.99

$

Usually ships in 2-4 days

0

14

Echo A146000000

WEIGHT

$1.99

$

Usually ships in 2-4 days

0

15

Echo A622000000

GEAR, CAM

$9.99

$

In Stock, only 2 left!

0

16

Echo V202000340

SCREW - 4X12

$0.99

$

Usually ships in 2-4 days

0

17

Echo A123000000

COVER, REED VALVE

$5.99

$

Usually ships in 2-4 days

0

18

Echo V109000100

GASKET, REED VALVE

$1.99

$

In Stock, Qty 6

0

19

Echo 9134103010

SCREW - 3X10

$0.99

$

Usually ships in 2-4 days

0

20

Echo A212000040

STOP, REED VALVE

$3.49

$

Usually ships in 2-4 days

0

21

Echo A211000030

VALVE, REED

$5.49

$

Usually ships in 2-4 days

0

22

Echo A200000750

PLATE, REED BACKING

$11.99

$

Usually ships in 2-4 days

0
