AOS - Bad Boy Zero-Turn Mower (2007) Left Fender Flare Parts Diagram

Zero-Turn Mower

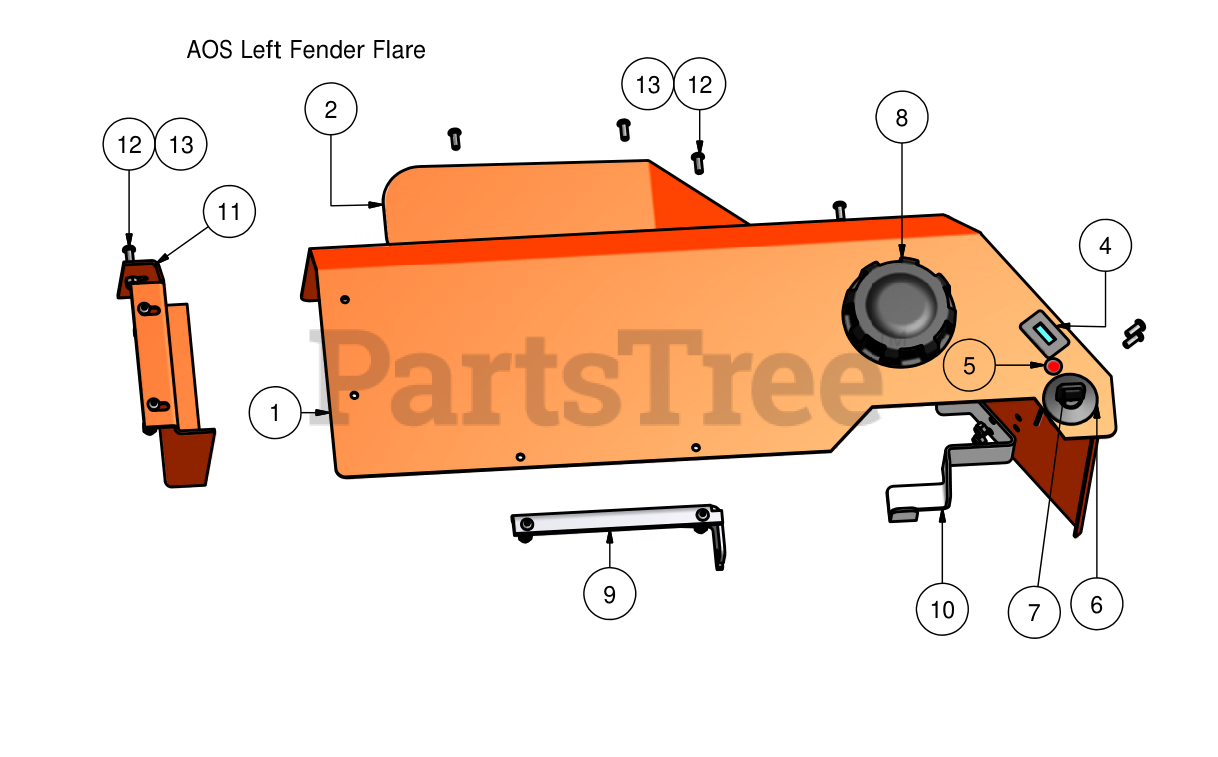

Left Fender Flare Parts Diagram

  • Title

1

Bad Boy 074-2004-00

Left fender (5 gallon 2004)

$

$

Currently unavailable

2

Bad Boy 075-5300-00

Fender flare (left)

$

$

Currently unavailable

3

Bad Boy 067-6000-00

5 Gallon Fuel Tank

$

$

Currently unavailable

4

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

5

Bad Boy 089-1000-00

Oil Light

$13.99

$

Usually ships in 4-7 days

0

6

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

7

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

8

Bad Boy 066-8074-00

Fuel Cap

$30.99

$

Usually ships in 0 days

0

9

Bad Boy 057-8933-00

Left tank retainer (5 gallon)

$

$

Currently unavailable

10

Bad Boy 057-8931-00

Front tank retainer (left 5 gallon)

$

$

Currently unavailable

11

Bad Boy 039-8935-00

Left End Tank Braket

$22.99

$

Usually ships in 0 days

0

12

Bad Boy 018-8064-00

1/4" x 5/8" Buttonhead Bolt

$0.99

$

Usually ships in 4-7 days

0

13

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0
