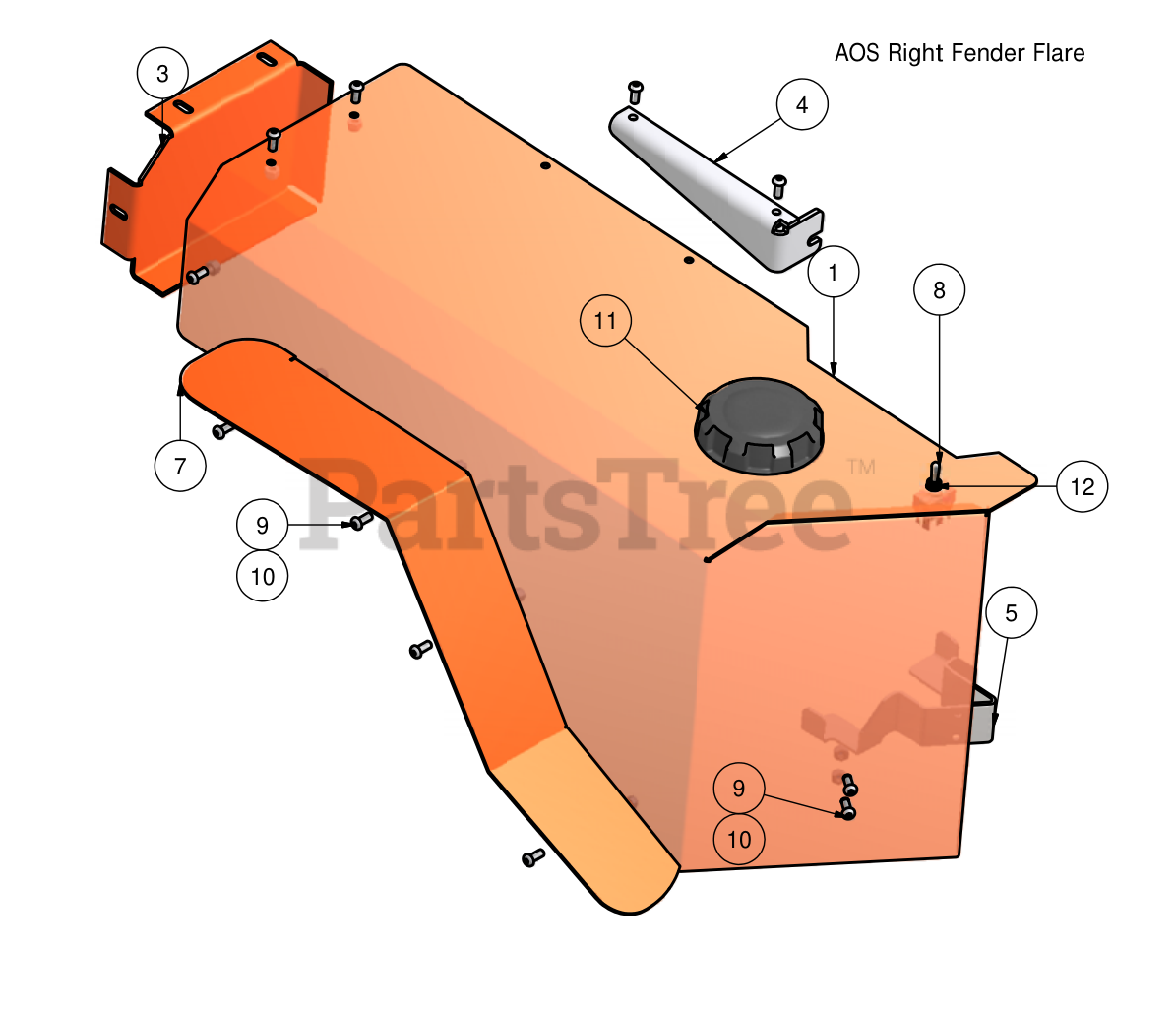

AOS - Bad Boy Zero-Turn Mower (2007) Right Fender Flare Parts Diagram

Zero-Turn Mower

Right Fender Flare Parts Diagram

  • Title

1

Bad Boy 074-2005-00

Right fender

$

$

Currently unavailable

2

Bad Boy 067-6000-00

5 Gallon Fuel Tank

$

$

Currently unavailable

3

Bad Boy 039-8934-00

Right end tank bracket

$22.99

$

Usually ships in 0 days

0

4

Bad Boy 057-8932-00

Right tank retainer (5 gallon)

$

$

Currently unavailable

5

Bad Boy 057-8930-00

Front Retainer (Right)

$

$

Currently unavailable

6

Bad Boy 057-8932-00

Right Tank Retainer

$

$

Currently unavailable

7

Bad Boy 075-5301-00

2007 Fender Flare Right

$

$

Currently unavailable

8

Bad Boy 078-8077-00

Joystick (deck lift)

$45.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-8064-00

1/4" x 5/8" Buttonhead Bolt

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 013-6037-00

1/4" Nylock Nut

$1.49

$

Usually ships in 4-7 days

0

11

Bad Boy 066-8074-00

Fuel Cap

$30.99

$

Usually ships in 0 days

0

12

Bad Boy 014-8022-00

Joystick Cover

$

$

Currently unavailable
