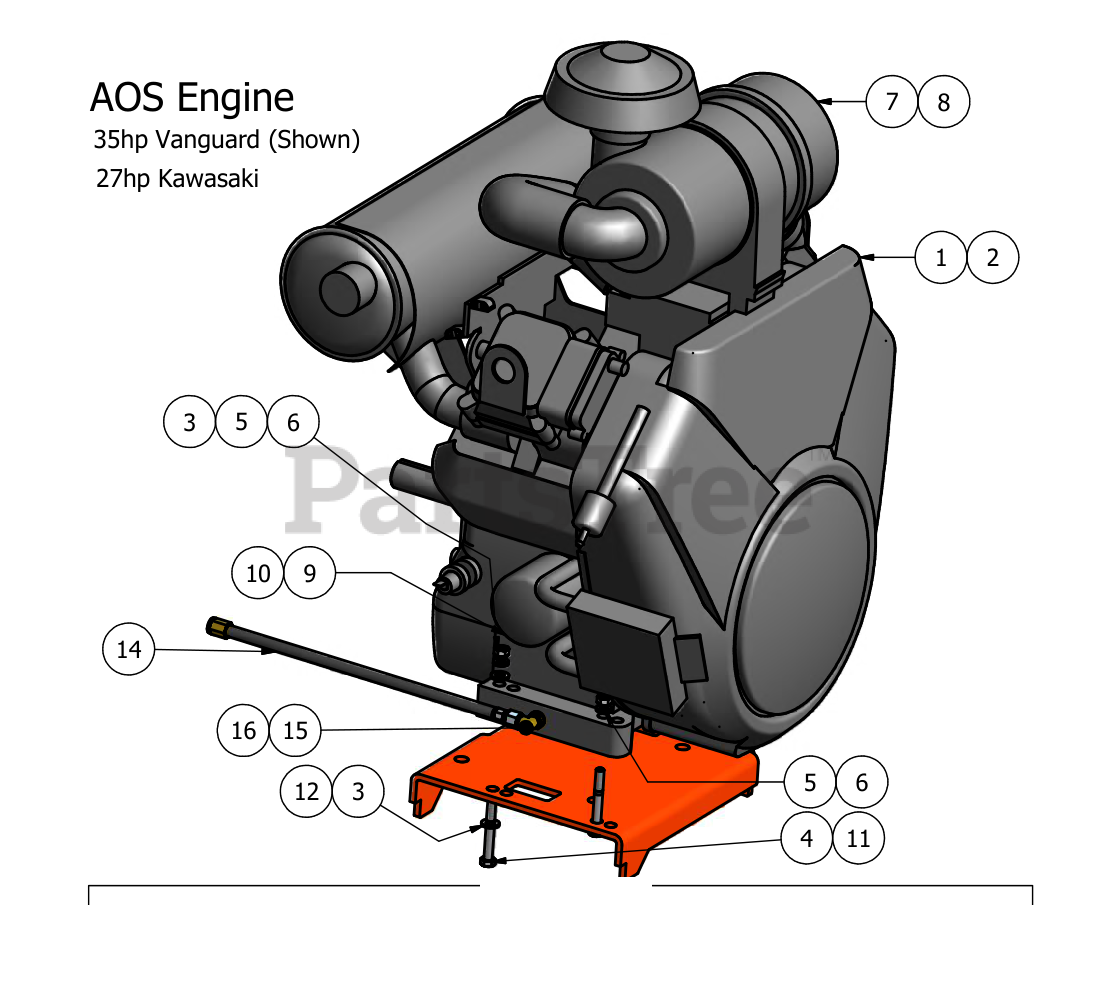

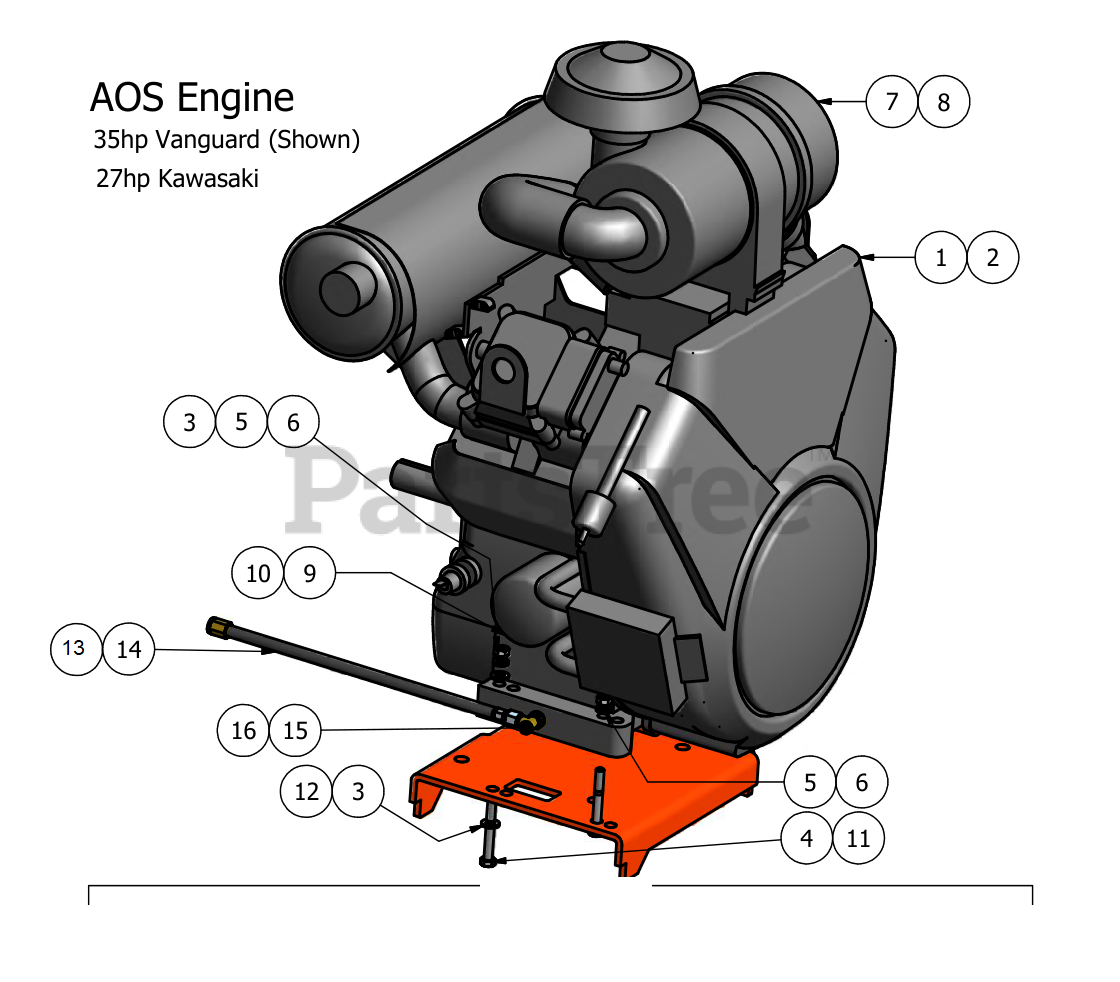

AOS - Bad Boy Zero-Turn Mower (2008) Engine 35hp Vanguard (shown) 27hp Kawasaki Parts Diagram

Zero-Turn Mower

Engine 35hp Vanguard (shown) 27hp Kawasaki Parts Diagram

  • Title

1

Bad Boy 015-5405-00

35hp Vanguard Engine

$

$

Currently unavailable

2

Bad Boy 015-0003-00

27hp Kawasaki Engine with Donaldson Air Filter

$

$

Currently unavailable

3

Bad Boy 019-8044-00

5/16" Flat Washer (35 Vanguard Only)

$0.99

$

In Stock, Qty 20+

0

4

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt (35 Vanguard Only)

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 019-8051-00

5/16" Lock Washer (35 Vanguard Only)

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 013-8043-00

5/16" Nut (35 Vanguard Only)

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 063-8019-00

Air Filter (Outer Canister)

$38.99

$

In Stock, Qty 8

0

8

Bad Boy 063-8020-00

Air Filter (Inner Canister)

$34.99

$

In Stock, only 2 left!

0

9

Bad Boy 063-8018-00

Oil Filter (35hp Vanguard)

$28.99

$

In Stock, Qty 17

0

10

Bad Boy 063-8017-00

Oil Filter (27hp Kawasaki)

$34.99

$

In Stock, Qty 17

0

11

Bad Boy 018-5028-00

10mm x 552 Bolt (27hp Only)

$1.49

$

Usually ships in 4-7 days

0

12

Bad Boy 019-8053-00

7/16" Lock Washer (27hp Only)

$3.49

$

Usually ships in 4-7 days

0

13

Bad Boy 051-5400-00

Oil Drain Hose (35hp Vanguard)

$25.99

$

Usually ships in 4-7 days

0

14

Bad Boy 051-5401-00

Oil Drain Hose (27hp Kawasaki)

$33.99

$

In Stock, only 4 left!

0

15

Bad Boy 036-5400-00

Oil Drain Adapter (35hp Vanguard)

$35.99

$

Usually ships in 4-7 days

0

16

Bad Boy 036-5500-00

Oil Drain Adapter (27hp Kawasaki)

$

$

Currently unavailable

17

Bad Boy 086-2004-00

27hp Kawasaki Wiring Harness

$478.99

$

Usually ships in 4-7 days

0

18

Bad Boy 086-0031-00

35hp Vanguard Wiring Harness

$283.99

$

Usually ships in 4-7 days

0
