AOS - Bad Boy Zero-Turn Mower (2008) Pump Plate / Clutch Assembly Parts Diagram

Zero-Turn Mower

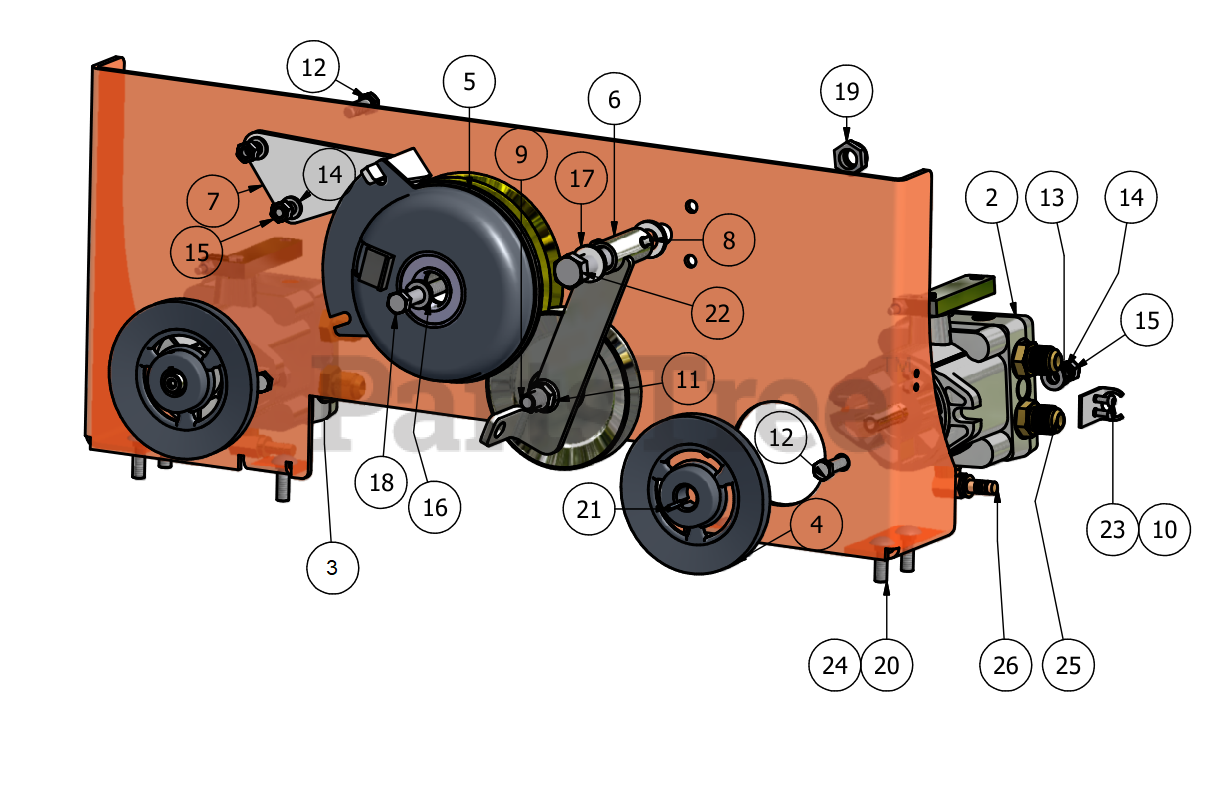

Pump Plate / Clutch Assembly Parts Diagram

  • Title

1

Bad Boy 041-5048-00

Pump Belt

$64.99

$

In Stock, Qty 11

0

2

Bad Boy 050-5407-00

Hydraulic Pump (Right)

$1139.99

$

Usually ships in 4-7 days

0

3

Bad Boy 050-5308-00

Hydraulic Pump (Left)

$1025.99

$

Usually ships in 4-7 days

0

4

Bad Boy 033-5011-00

5" Pump Pulley

$37.99

$

In Stock, Qty 9

0

5

Bad Boy 070-5035-00

Clutch

$317.99

$

Usually ships in 4-7 days

0

6

Bad Boy 039-5944-98

Pump Idler Bracket
(Superseded to 039-5944-01)

$66.99

$

In Stock, only 2 left!

0

7

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

In Stock, only 1 left!

0

8

Bad Boy 024-6034-00

Grease Fitting (Drive-IN Type)

$0.99

$

In Stock, only 1 left!

0

9

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

$1.99

$

In Stock, Qty 8

0

10

Bad Boy 013-5019-00

1024 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

11

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

13

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 20+

0

14

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 20+

0

15

Bad Boy 013-6014-00

3/8" Nut

$0.99

$

In Stock, Qty 20+

0

16

Bad Boy 019-8053-00

7/16" Lock Washer

$3.49

$

Usually ships in 4-7 days

0

17

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, Qty 16

0

18

Bad Boy 018-5300-00

7/16" x 2 1/2" Fine Thread Bolt

$1.49

$

In Stock, only 1 left!

0

19

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, Qty 20+

0

20

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 18

0

21

Bad Boy 042-5012-00

5mm x 1.25" Key
(Superseded to 042-5013-00)

$3.49

$

In Stock, Qty 8

0

22

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, Qty 17

0

23

Bad Boy 018-8058-00

1024 x 1" Buttonhead Bolt

$0.99

$

Usually ships in 4-7 days

0

24

Bad Boy 013-5041-00

3/8" Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

25

Bad Boy 024-7033-00

Hydraulic Fitting

$5.99

$

Usually ships in 4-7 days

0

26

Bad Boy 024-5206-00

3/8" X 9/16"-18 ORB Male Fitting (S,A-2 P-4)

$13.99

$

Usually ships in 4-7 days

0
