AOS - Bad Boy Zero-Turn Mower (2008) Seat Frame Parts Diagram

Zero-Turn Mower

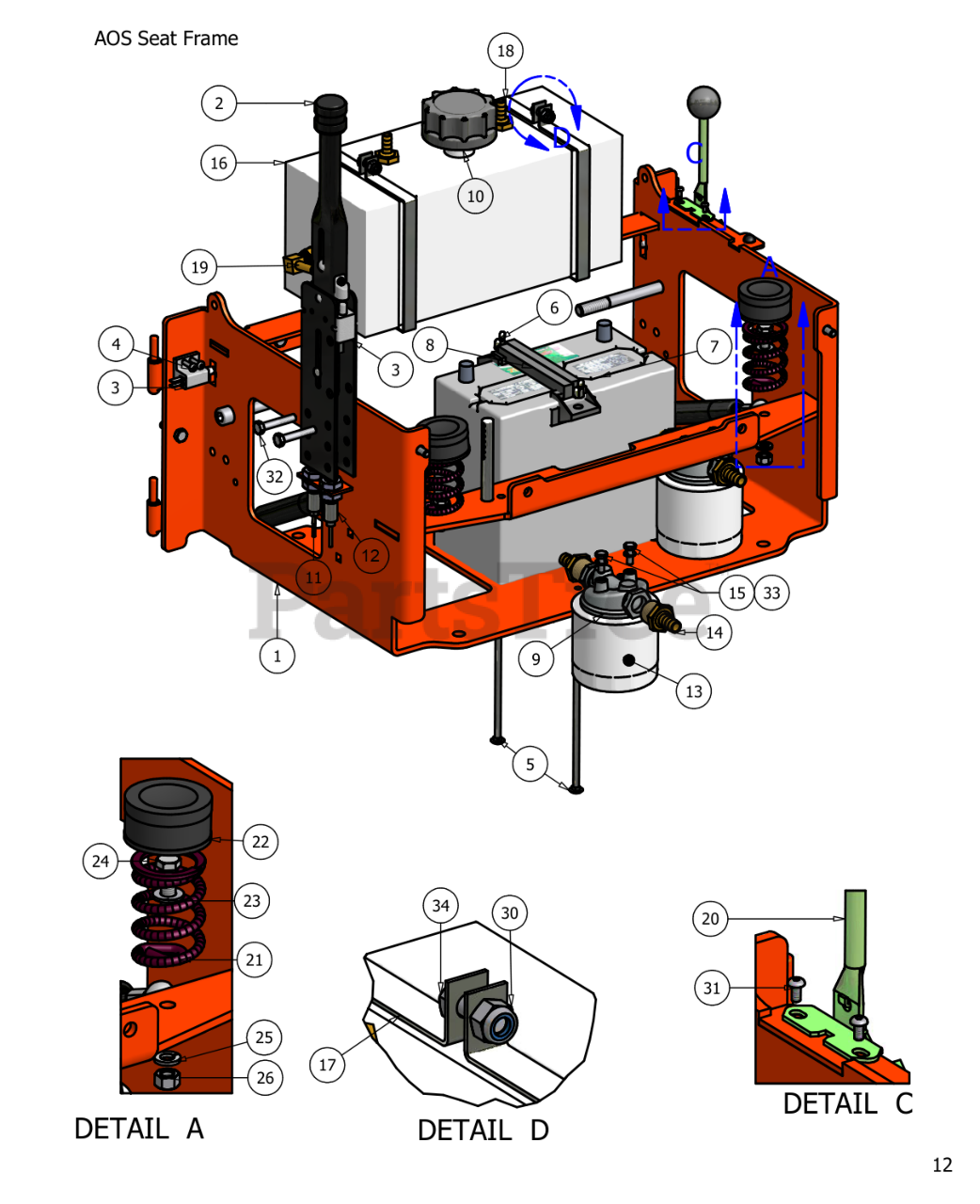

Seat Frame Parts Diagram

  • Title

1

Bad Boy 080-6010-00

Seat Frame

$

$

Currently unavailable

2

Bad Boy 069-8054-00

Brake Lever

$136.99

$

Usually ships in 4-7 days

0

3

Bad Boy 077-8073-00

Brake Handle Switch

$11.99

$

In Stock, Qty 13

0

4

Bad Boy 018-8056-00

1024 x 1" Bolt

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 018-8051-00

8" Stove Bolt (Diesel gets 9")

$1.99

$

Usually ships in 4-7 days

0

6

Bad Boy 013-8051-00

1/4" Wing Nut

$0.99

$

Usually ships in 4-7 days

0

7

Bad Boy 068-8049-00

Battery

$

$

Not available

8

Bad Boy 043-8929-00

Battery Hold-Down

$18.99

$

In Stock, only 1 left!

0

9

Bad Boy 062-8013-00

Filter Head

$26.99

$

Usually ships in 4-7 days

0

10

Bad Boy 066-8048-00

Hydraulic Tank Cap

$23.99

$

Usually ships in 4-7 days

0

11

Bad Boy 064-8055-00

Short Brake Cable

$54.99

$

In Stock, only 2 left!

0

12

Bad Boy 064-8056-00

Long Brake Cable

$56.99

$

In Stock, only 2 left!

0

13

Bad Boy 063-8014-00

Hydraulic Filter

$33.99

$

In Stock, Qty 20+

0

14

Bad Boy 024-5050-00

1/2" x 1/2" Filter Head Fitting

$8.49

$

Usually ships in 4-7 days

0

15

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 067-9016-00

Hydraulic Tank

$

$

Currently unavailable

17

Bad Boy 213-6001-00

Hydraulic Tank Strap

$

$

Currently unavailable

18

Bad Boy 024-5205-00

3/8" X 3/8" Hose Barb

$9.49

$

Usually ships in 0 days

0

19

Bad Boy 024-5203-00

1/2" x 1/2" Filter Head Fitting (90 Degree)

$12.99

$

Usually ships in 4-7 days

0

20

Bad Boy 055-8017-00

Throttle

$48.99

$

Usually ships in 4-7 days

0

21

Bad Boy 034-8045-00

Seat Spring

$21.99

$

Usually ships in 4-7 days

0

22

Bad Boy 014-8047-00

Spring Cap Cover

$2.49

$

In Stock, only 1 left!

0

23

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 1 left!

0

24

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

25

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

26

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

27

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

28

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

29

Bad Boy 054-8016-00

Choke

$30.99

$

In Stock, only 4 left!

0

30

Bad Boy 013-8047-00

5/16" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

31

Bad Boy 018-5200-00

1024 X 5/8" Buttonhead Bolt

$0.99

$

In Stock, Qty 5

0

32

Bad Boy 018-8059-00

5/16" x 1 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

33

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, only 4 left!

0

34

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

35

Bad Boy 029-8059-00

Piezo Buzzer- 27 Kawasaki Only

$

$

Currently unavailable

36

Bad Boy 071-3000-00

Seat

$

$

Not available

37

Bad Boy 026-2006-00

Seat Plate

$105.99

$

Usually ships in 4-7 days

0
