AOS - Bad Boy Zero-Turn Mower (2009) Front Wheel Parts Diagram

Zero-Turn Mower

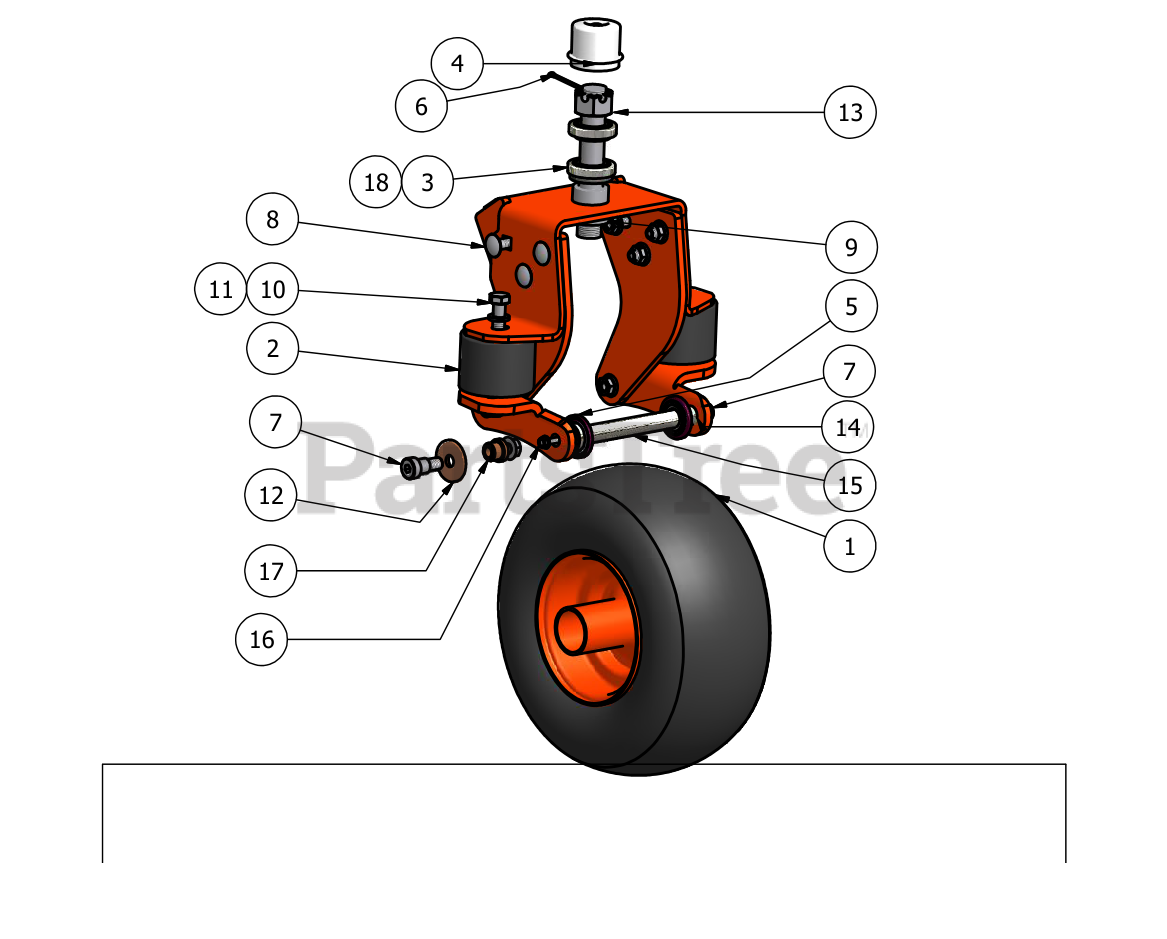

Front Wheel Parts Diagram

  • Title

1

Bad Boy 022-3060-00

13"x6.50-6 Tire &Wheel

$140.99

$

Usually ships in 4-7 days

0

2

Bad Boy 032-9002-00

Rubber Isolator

$75.99

$

In Stock, only 3 left!

0

3

Bad Boy 010-7001-00

Bearing

$9.99

$

In Stock, Qty 11

0

4

Bad Boy 014-7005-00

Dust Cover

$9.99

$

In Stock, Qty 18

0

5

Bad Boy 022-7010-00

5/8" Bearing

$21.99

$

In Stock, Qty 6

0

6

Bad Boy 020-7022-00

Cotter Pin

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 018-3001-00

5/8"x5/8" Shoulder Bolt

$16.99

$

In Stock, Qty 8

0

8

Bad Boy 018-3003-00

1/2"x1 1/4"Carrige Bolt

$1.49

$

In Stock, only 2 left!

0

9

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

10

Bad Boy 018-5006-00

1/2" 1 1/2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

11

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 019-5038-00

5/8" Flat Washer

$1.99

$

In Stock, only 4 left!

0

13

Bad Boy 013-7004-00

1" Fine Threaded Castle Nut

$8.99

$

Usually ships in 4-7 days

0

14

Bad Boy 025-7036-00

1/2" Collar Spacer

$4.99

$

In Stock, only 2 left!

0

15

Bad Boy 025-5202-00

7"x 1/2" ID Tire Spacer

$10.99

$

In Stock, Qty 13

0

16

Bad Boy 018-3002-00

1/2" x 10" Bolt

$8.49

$

In Stock, only 3 left!

0

17

Bad Boy 032-5052-00

5/8" Shoulder Bushing

$4.99

$

In Stock, Qty 6

0

18

Bad Boy 011-7002-00

Race

$4.99

$

Usually ships in 4-7 days

0
