AOS - Bad Boy Zero-Turn Mower (2010) Drive Arm Parts Diagram

Zero-Turn Mower

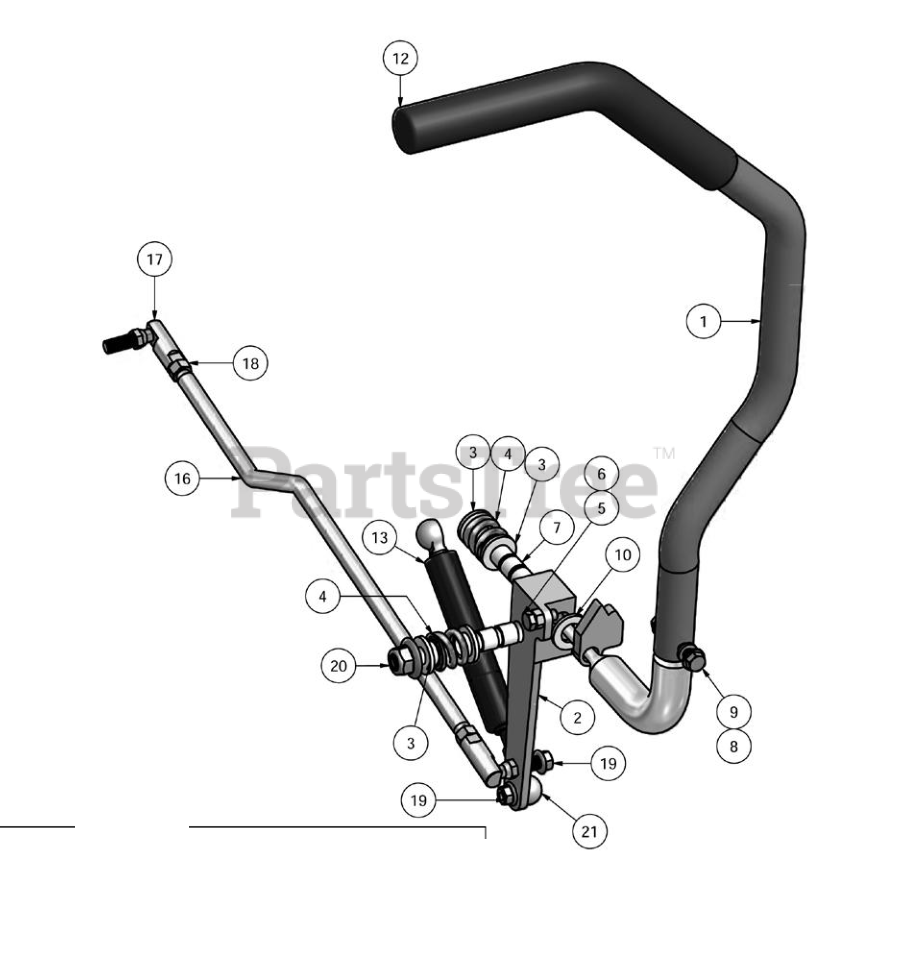

Drive Arm Parts Diagram

  • Title

1

Bad Boy 031-8821-00

Drive Arm (Left)

$

$

Not available

1A

Bad Boy 031-8822-00

Drive Arm (Right)

$

$

Not available

2

Bad Boy 027-8819-00

Drive Arm Lever Housing (Left)

$49.99

$

Usually ships in 4-7 days

0

2A

Bad Boy 027-8820-00

Drive Arm Lever Housing (Right)

$49.99

$

Usually ships in 4-7 days

0

3

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

In Stock, only 4 left!

0

4

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

5

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 032-8024-00

.507 ID Nylon Bushing

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 018-2007-00

5/16" x 1/2" Flange Bolt

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 019-8054-00

.505 ID Plastic Washer

$0.99

$

In Stock, Qty 10

0

12

Bad Boy 069-4010-00

Rubber Grip

$8.49

$

In Stock, Qty 17

0

13

Bad Boy 087-5340-00

Damper

$60.99

$

Usually ships in 0 days

0

16

Bad Boy 035-5344-00

Push Rod

$32.99

$

Usually ships in 0 days

0

17

Bad Boy 099-2009-00

3/8-24 Ball Joint

$10.99

$

In Stock, only 2 left!

0

18

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

19

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0

20

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

21

Bad Boy 018-2050-00

10MM Damper Ball Stud

$2.49

$

In Stock, only 3 left!

0
