AOS - Bad Boy Zero-Turn Mower (2010) Pump Plate Assembly Parts Diagram

Zero-Turn Mower

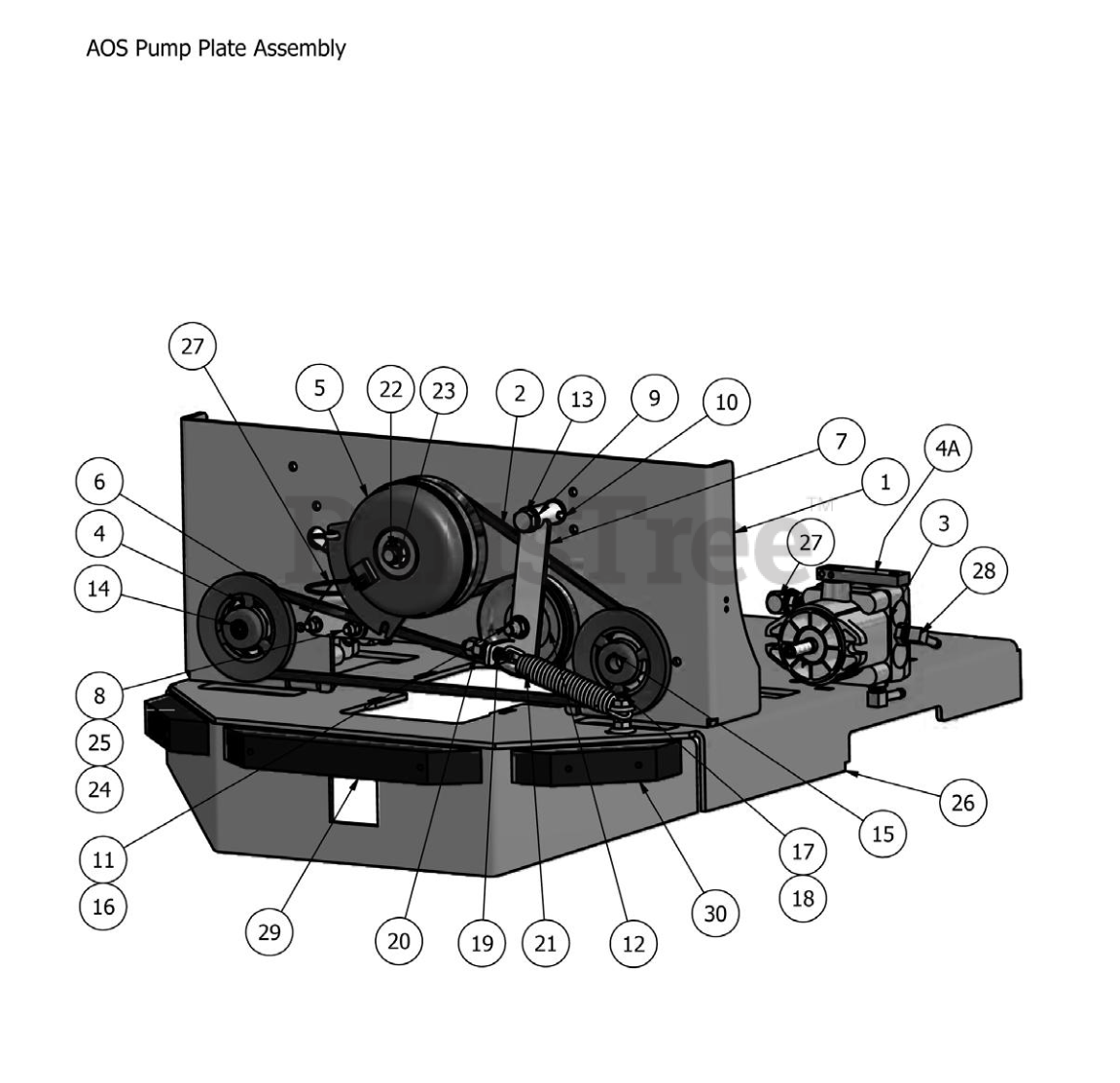

Pump Plate Assembly Parts Diagram

  • Title

1

Bad Boy 026-8020-00

Pump Mounting Plate AOS

$

$

Currently unavailable

2

Bad Boy 041-5048-00

Pump Belt

$64.99

$

In Stock, Qty 14

0

3

Bad Boy 050-5407-00

Hydraulic Pump Right

$1139.99

$

Usually ships in 4-7 days

0

4

Bad Boy 050-5308-00

Hydraulic Pump Left

$1025.99

$

Usually ships in 4-7 days

0

4A

Bad Boy 031-5923-00

Pump Arm

$32.99

$

Usually ships in 4-7 days

0

5

Bad Boy 070-5035-00

Clutch

$317.99

$

Usually ships in 4-7 days

0

6

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

In Stock, only 2 left!

0

7

Bad Boy 039-5944-00

Pump Idler Bracket

$45.99

$

In Stock, Qty 5

0

8

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

9

Bad Boy 019-6017-00

5/8 Nylon Washer

$0.99

$

In Stock, only 4 left!

0

10

Bad Boy 024-6034-00

Grease Fitting (Drive-In Type)

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 018-5049-00

1/2" x 2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

12

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

13

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

14

Bad Boy 033-5011-00

5" Pump Pulley

$37.99

$

In Stock, Qty 12

0

15

Bad Boy 042-5012-00

5mm x 1.25" Key

$

$

Not available

16

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

17

Bad Boy 018-1050-00

1/2 x 2" Carriage Bolt

$1.99

$

In Stock, only 1 left!

0

18

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

19

Bad Boy 018-2004-00

1/2-13 x 2-1/2 All Thd Stud

$13.99

$

In Stock, only 4 left!

0

20

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

21

Bad Boy 034-5039-00

6" Pump Idler Spring

$

$

Not available

22

Bad Boy 018-5300-00

7/16" x 2 1/2" Hex Bolt

$1.49

$

In Stock, only 2 left!

0

23

Bad Boy 019-8053-00

7/16" Lock Washer

$3.49

$

Usually ships in 4-7 days

0

24

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

26

Bad Boy 070-5600-00

Aos Frame

$

$

Currently unavailable

27

Bad Boy 024-7033-00

Hydraulic Fitting

$5.99

$

Usually ships in 4-7 days

0

28

Bad Boy 024-5206-00

3/8" x 9/16"-18 Male Fitting

$13.99

$

Usually ships in 4-7 days

0

27

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

29

Bad Boy 029-7037-00

14" Rubber Bumper

$45.99

$

Usually ships in 4-7 days

0

30

Bad Boy 029-7038-00

8" Rubber Bumper

$30.99

$

Usually ships in 4-7 days

0
