AOS Diesel - Bad Boy Zero-Turn Mower (2007) Suspension Front Fork Parts Diagram

Zero-Turn Mower

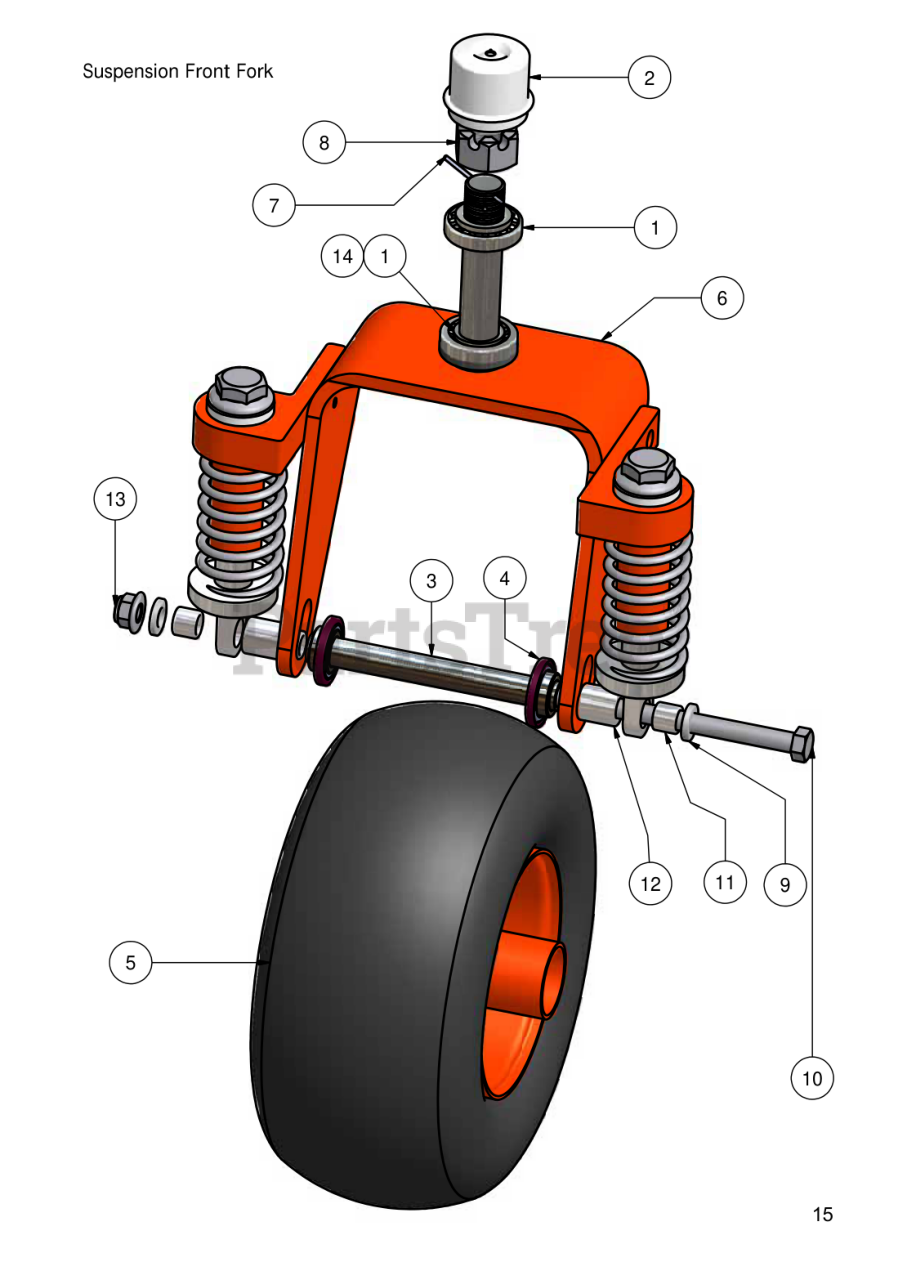

Suspension Front Fork Parts Diagram

  • Title

1

Bad Boy 010-7001-00

Bearing

$9.99

$

In Stock, Qty 11

0

2

Bad Boy 014-7005-00

Dust Cover

$9.99

$

In Stock, Qty 18

0

3

Bad Boy 025-5202-00

7" x 1/2" ID Tire Spacer

$10.99

$

In Stock, Qty 13

0

4

Bad Boy 022-7009-00

5/8" Bearing

$14.99

$

In Stock, Qty 20+

0

5

Bad Boy 022-2006-00

13" x 6.50 -6 Tire and Orange Wheel

$136.99

$

Usually ships in 4-7 days

0

6

Bad Boy 023-7914-00

Suspension Front Fork

$

$

Currently unavailable

7

Bad Boy 020-7022-00

1/8" x 2 1/4" Cotter #8

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 013-7004-00

1" Fine Threaded Castle Nut

$8.99

$

Usually ships in 4-7 days

0

9

Bad Boy 019-5008-00

1/2" Flat Washer for Suspension

$

$

Currently unavailable

10

Bad Boy 018-2017-00

1/2" x 13" Bolt

$11.99

$

Usually ships in 4-7 days

0

11

Bad Boy 025-2050-00

1/2" x 5/8" Spacer for Suspension

$

$

Currently unavailable

12

Bad Boy 025-2051-00

1/2" x 1 1/16" Spacer for Suspension

$

$

Not available

13

Bad Boy 013-8050-00

1/2" Flange Lock Nut

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 011-7002-00

Race

$4.99

$

Usually ships in 4-7 days

0
