AOS Diesel - Bad Boy Zero-Turn Mower (2007) Wheel Motor/ Tire and Wheel Assmebly Parts Diagram

Zero-Turn Mower

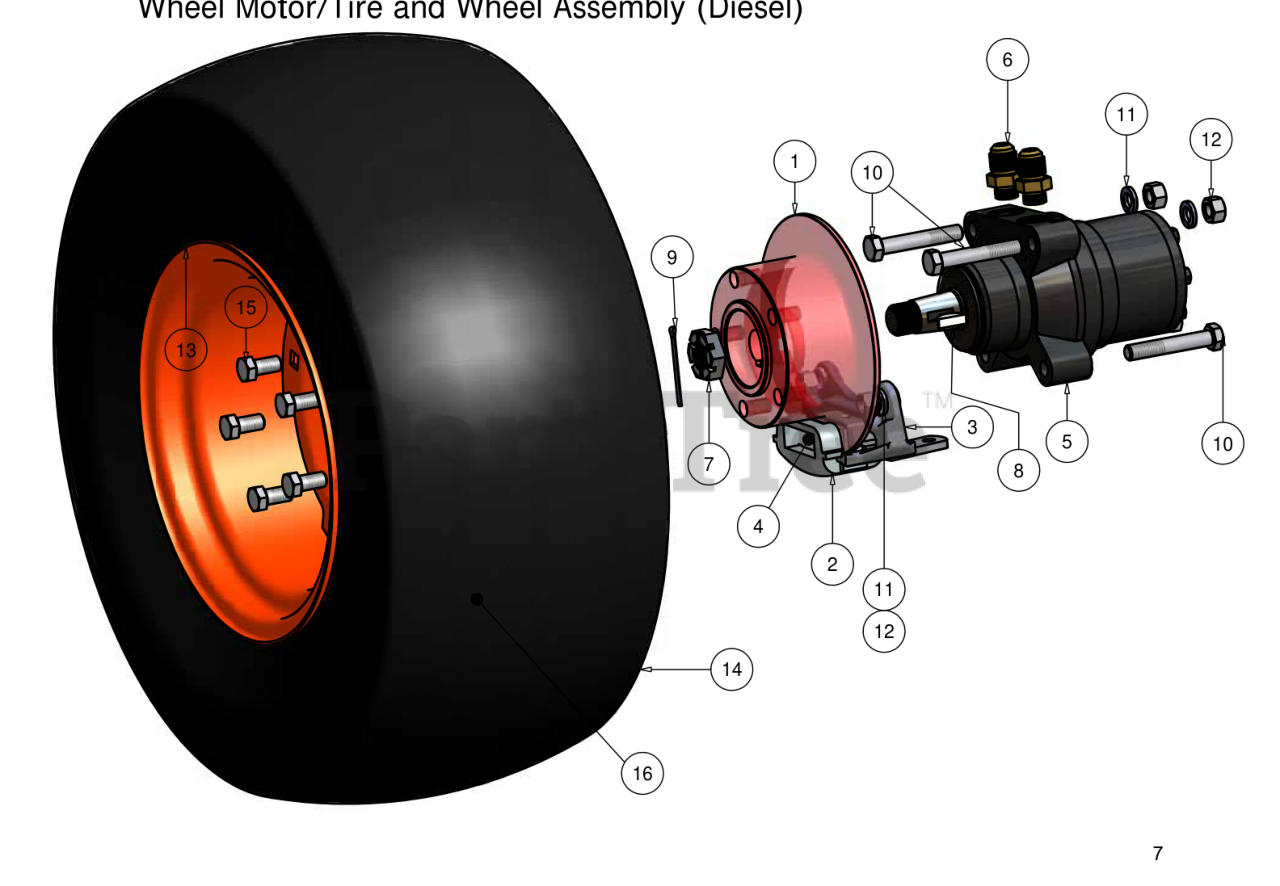

Wheel Motor/ Tire and Wheel Assmebly Parts Diagram

  • Title

1

Bad Boy 092-5201-00

Brake Disc

$136.99

$

In Stock, only 4 left!

0

2

Bad Boy 016-1610-98

Right Brake Assembly

$142.99

$

Usually ships in 4-7 days

0

2

Bad Boy 016-1609-98

Left Brake Assembly

$119.99

$

Usually ships in 4-7 days

0

3

Bad Boy 039-8936-00

Brake Casting

$56.99

$

Usually ships in 4-7 days

0

4

Bad Boy 016-9998-00

Brake Pads

$33.99

$

Usually ships in 4-7 days

0

5

Bad Boy 015-5302-00

Right Wheel Motor

$682.99

$

Usually ships in 4-7 days

0

5

Bad Boy 015-5303-00

Left Wheel Motor

$682.99

$

Usually ships in 4-7 days

0

6

Bad Boy 024-5204-00

3" Hydraulic Fitting

$19.99

$

Usually ships in 4-7 days

0

7

Bad Boy 013-7050-00

Castle Nut

$19.99

$

Usually ships in 4-7 days

0

8

Bad Boy 042-7041-00

Woodruff Key

$10.99

$

In Stock, only 2 left!

0

9

Bad Boy 020-7022-00

1/8" x 2 1/4" Cotter #8

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 018-7016-00

1/2" x 3" Hex Bolt

$1.99

$

In Stock, Qty 5

0

11

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

13

Bad Boy 022-7033-00

12" Rim AOS Models -

$

$

Not available

14

Bad Boy 022-7032-00

26x12-12 Tire - AOS Models

$319.99

$

Usually ships in 4-7 days

0

15

Bad Boy 018-7033-00

1/2" x 1" Lug Bolt (Fine Thread)

$5.99

$

In Stock, Qty 7

0

16

Bad Boy 022-7031-00

26 x 12-12 Tire and Wheel Assembly

$453.99

$

Usually ships in 4-7 days

0
