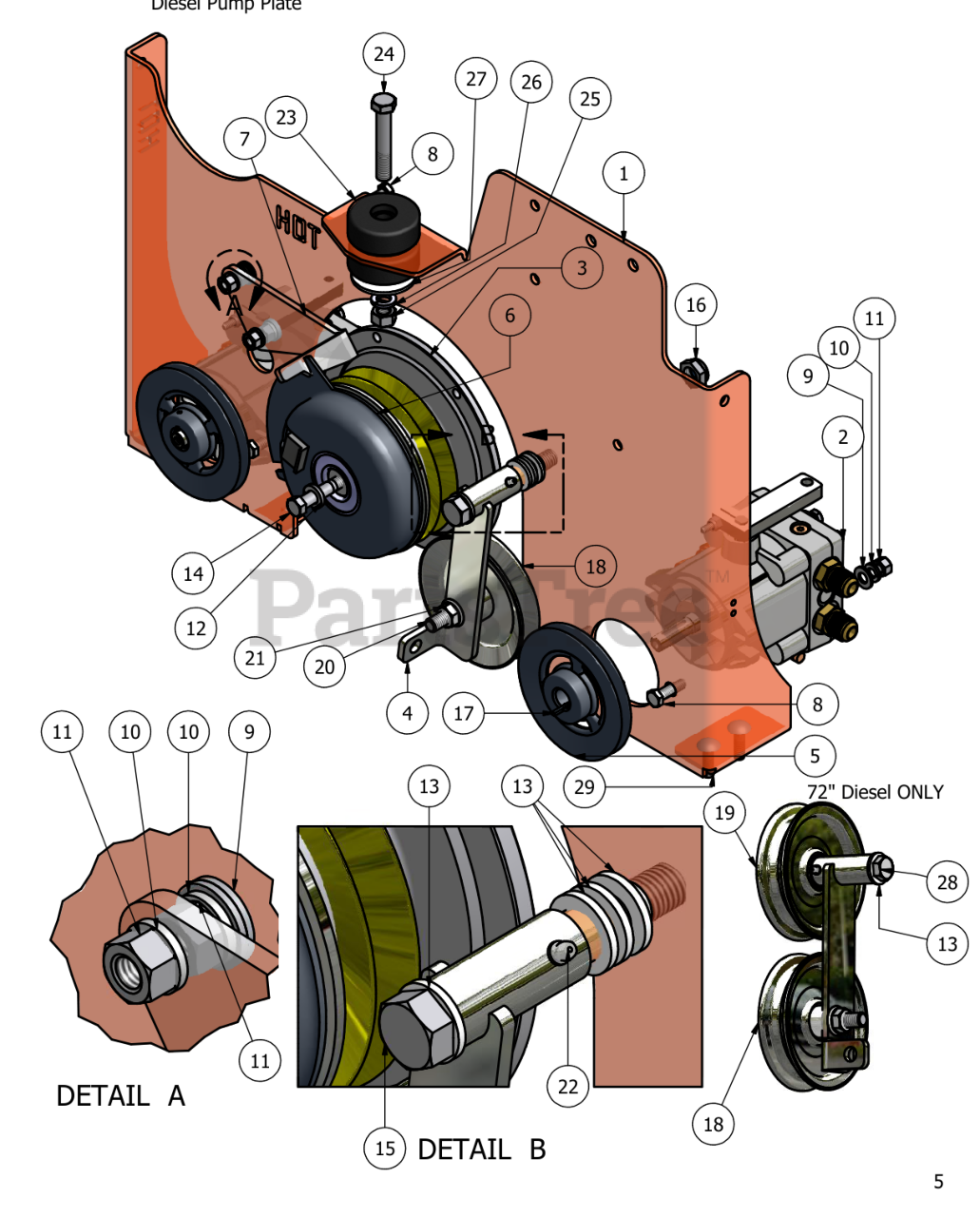

AOS Diesel - Bad Boy Zero-Turn Mower (2008) Pump Plate Parts Diagram

Zero-Turn Mower

Pump Plate Parts Diagram

  • Title

1

Bad Boy 026-8030-00

Diesel Pump Plate

$113.99

$

Usually ships in 0 days

0

2

Bad Boy 050-5308-00

Hydraulic Pump Left

$1025.99

$

Usually ships in 4-7 days

0

2

Bad Boy 050-5407-00

Hydraulic Pump Right

$1139.99

$

Usually ships in 4-7 days

0

3

Bad Boy 017-3000-00

Stub Shaft

$262.99

$

Usually ships in 4-7 days

0

4

Bad Boy 039-5944-00

Pump Idler Bracket

$45.99

$

In Stock, Qty 5

0

5

Bad Boy 033-5011-00

5" Pump Pulley

$37.99

$

In Stock, Qty 12

0

6

Bad Boy 070-5040-00

Diesel Clutch

$454.99

$

In Stock, only 2 left!

0

7

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

In Stock, only 2 left!

0

8

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

9

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 1 left!

0

10

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

12

Bad Boy 019-8053-00

7/16" Lock Washer

$3.49

$

Usually ships in 4-7 days

0

13

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

14

Bad Boy 018-5401-00

7/16" x 2 3/4" Fine Thread Bolt

$2.49

$

Usually ships in 4-7 days

0

15

Bad Boy 018-5312-00

5/8" x 4 1/2" Hex Bolt (60")

$

$

Not available

16

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

17

Bad Boy 042-5012-00

5mm x 1.25" Key

$

$

Not available

18

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

19

Bad Boy 033-4050-00

Diesel Idler Pulley

$40.99

$

In Stock, only 2 left!

0

20

Bad Boy 018-6036-00

1/2" x 2 1/2" Bolt

$1.99

$

In Stock, only 2 left!

0

21

Bad Boy 013-8050-00

1/2" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

22

Bad Boy 024-6034-00

Grease Fitting

$0.99

$

In Stock, only 2 left!

0

23

Bad Boy 032-4000-00

Rubber Isolator

$81.99

$

Usually ships in 4-7 days

0

24

Bad Boy 018-7016-00

1/2" x 3" Hex Bolt

$1.99

$

In Stock, Qty 5

0

25

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

26

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

27

Bad Boy 032-4001-00

Vibration Mount Snubbing Washer

$21.99

$

Usually ships in 4-7 days

0

28

Bad Boy 018-6016-00

5/8" x 5 1/2" Hex Bolt (72")

$3.49

$

Usually ships in 4-7 days

0

29

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 1 left!

0
