AOS Diesel - Bad Boy Zero-Turn Mower (2009) Drive Arms Parts Diagram

Zero-Turn Mower

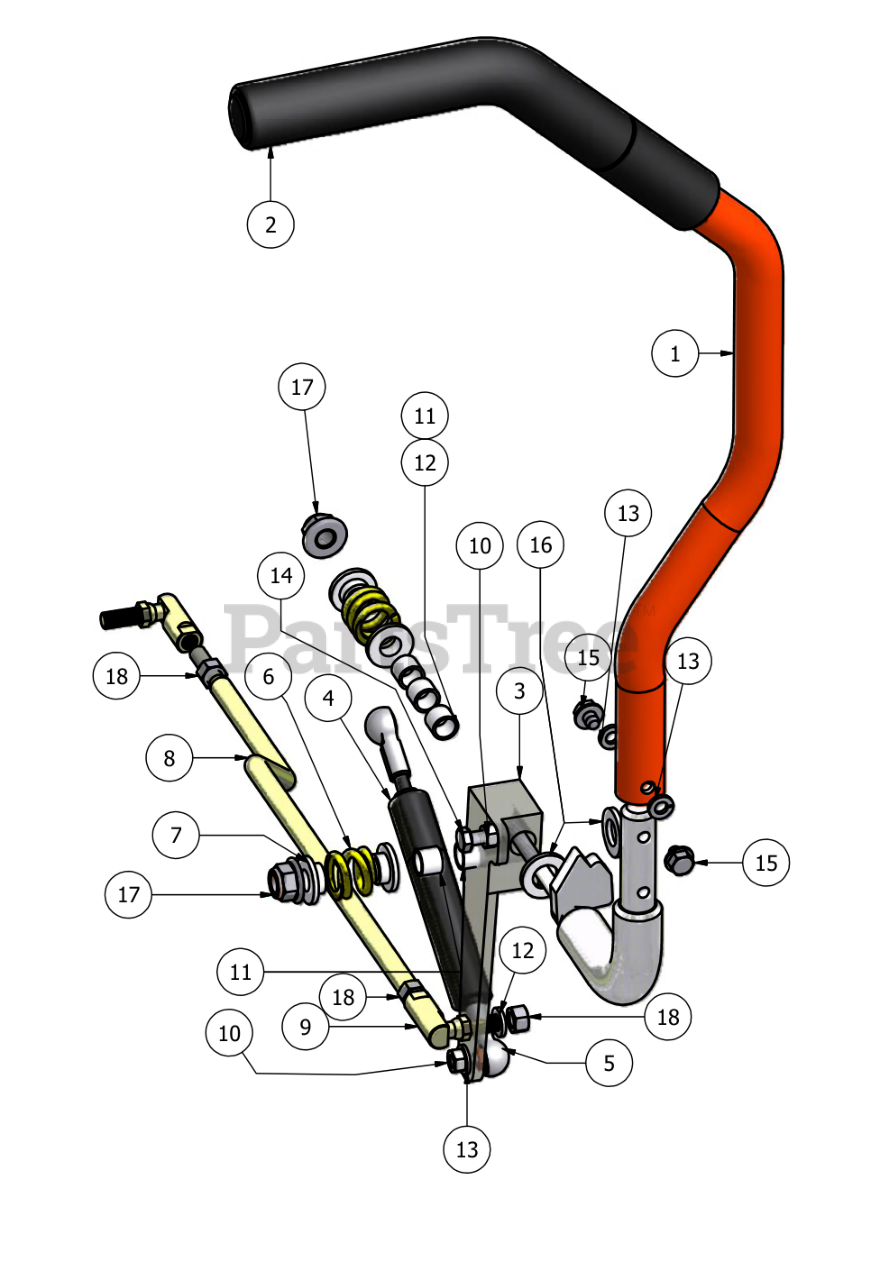

Drive Arms Parts Diagram

  • Title

1

Bad Boy 031-8822-00

Right Drive Arm

$

$

Not available

1

Bad Boy 031-8821-00

Left Drive Arm

$

$

Not available

2

Bad Boy 069-4010-00

Rubber Steering Handle

$8.49

$

In Stock, Qty 17

0

3

Bad Boy 027-8819-00

Left Drive Arm Lever

$49.99

$

Usually ships in 4-7 days

0

3

Bad Boy 027-8820-00

Right Drive Arm Lever

$49.99

$

Usually ships in 4-7 days

0

4

Bad Boy 087-8080-00

Damper

$60.99

$

In Stock, only 2 left!

0

5

Bad Boy 018-2050-00

10mm Damper Ball Stud

$2.49

$

In Stock, only 3 left!

0

6

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

7

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

In Stock, only 4 left!

0

8

Bad Boy 035-6050-00

Push Rod

$43.99

$

Usually ships in 4-7 days

0

9

Bad Boy 099-6046-00

3/8-24 Ball Joint

$13.99

$

In Stock, only 4 left!

0

10

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 032-8043-00

.507 ID Nylon Bushing

$

$

Currently unavailable

12

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 018-8063-00

5/16"x3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

15

Bad Boy 018-2007-00

5/16"x1/2" Flange Bolt

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 019-8054-00

.505 ID Plastic Washer

$0.99

$

In Stock, Qty 10

0

17

Bad Boy 013-8050-00

1/2" Flange Lock Nut

$1.99

$

In Stock, Qty 20+

0

18

Bad Boy 031-6051-00

3/8" Fine Thread Nut

$

$

Currently unavailable
