AOS Diesel - Bad Boy Zero-Turn Mower (2009) Engine Parts Diagram

Zero-Turn Mower

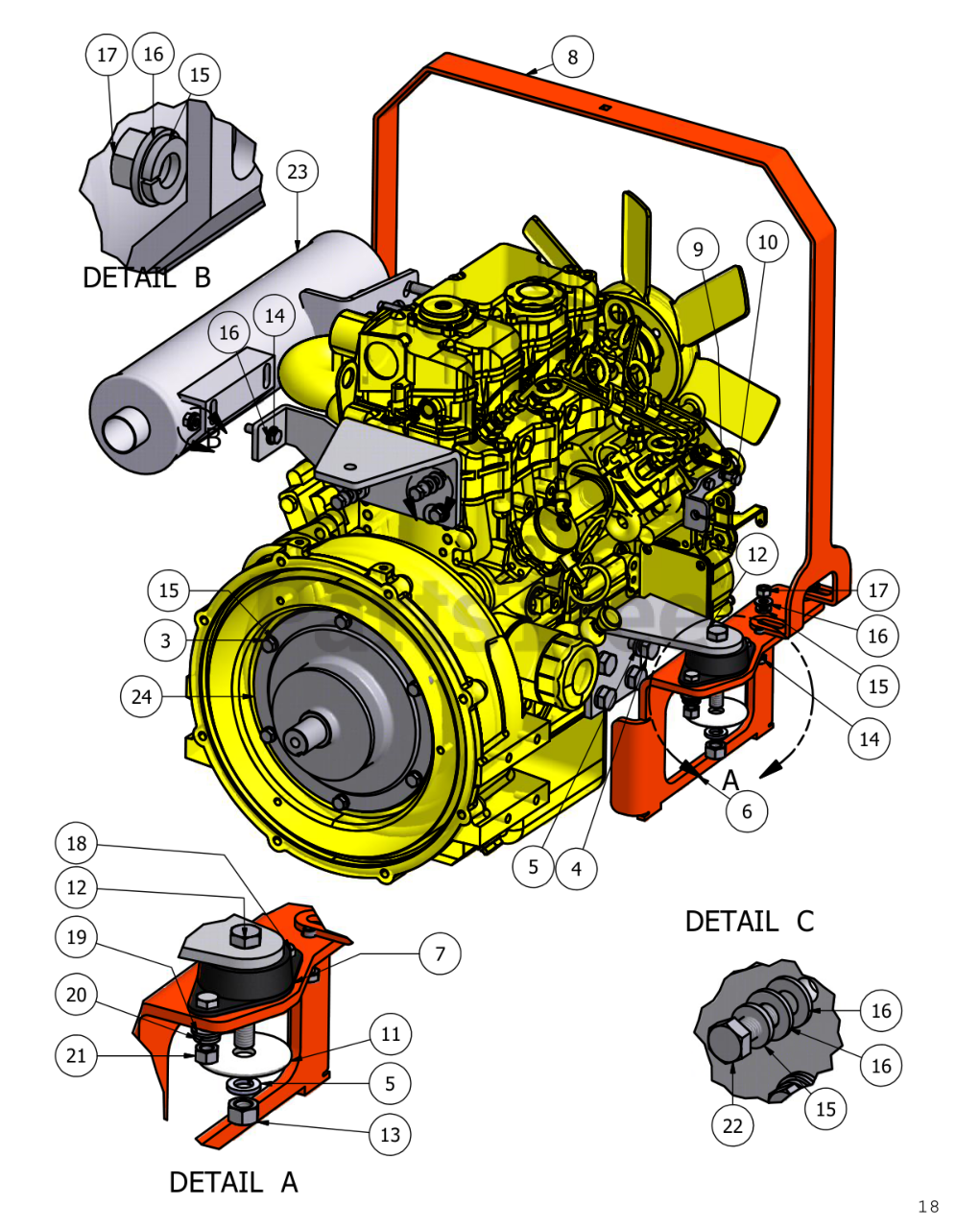

Engine Parts Diagram

  • Title

1

Bad Boy 015-0004-00

28 hp Caterpillar Engine

$

$

Currently unavailable

2

Bad Boy 015-5600-00

35hp Caterpillar Engine

$

$

Currently unavailable

3

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

4

Bad Boy 018-6022-00

12mmx25mm Bolt

$3.49

$

Usually ships in 4-7 days

0

5

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 070-5510-00

28hp Diesel Frame

$

$

Not available

6

Bad Boy 070-5520-00

35hp Diesel Frame

$

$

Not available

7

Bad Boy 032-4050-00

Rubber Isolator

$81.99

$

Usually ships in 4-7 days

0

8

Bad Boy 201-8001-00

Hood Holder

$

$

Not available

9

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, only 4 left!

0

10

Bad Boy 018-2000-00

6mm x 20mm Bolt

$0.99

$

Usually ships in 4-7 days

0

11

Bad Boy 032-4051-00

Snubbing Washer

$18.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-7016-00

1/2" x3" Hex Bolt

$1.99

$

In Stock, Qty 5

0

13

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

14

Bad Boy 018-5025-00

5/16" x 1 1/4" Hex Bolt

$

$

Currently unavailable

15

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

17

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 018-6049-00

3/8"x1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

19

Bad Boy 019-5029-00

3/8"Flat Washer

$0.99

$

In Stock, only 1 left!

0

20

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

22

Bad Boy 018-2001-00

8mmx25mm Bolt

$0.99

$

Usually ships in 4-7 days

0

23

Bad Boy 015-0005-00

Diesel Muffler

$

$

Not available

24

Bad Boy 017-3000-00

Stub Shaft

$262.99

$

Usually ships in 4-7 days

0
