AOS Diesel - Bad Boy Zero-Turn Mower (2009) Tanks Parts Diagram

Zero-Turn Mower

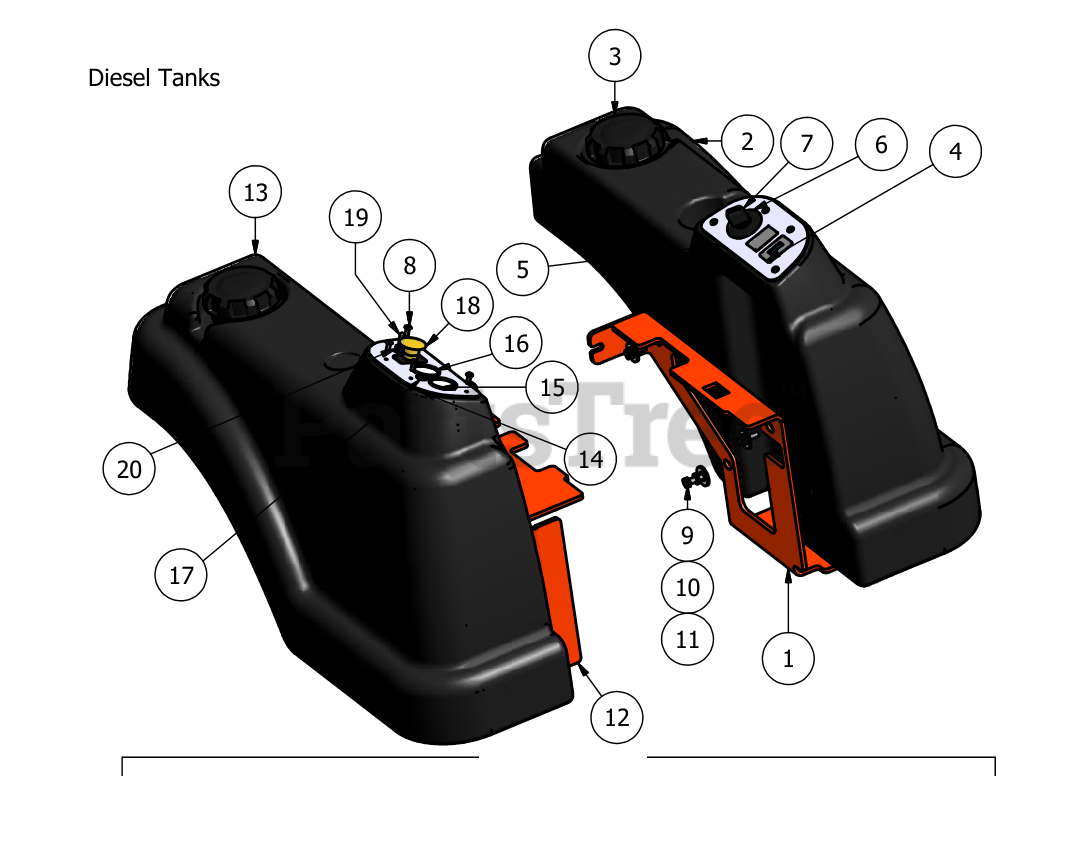

Tanks Parts Diagram

  • Title

1

Bad Boy 031-2006-00

Left Fuel Tank Swing Support

$50.99

$

Usually ships in 0 days

0

2

Bad Boy 067-3000-00

Left Fuel Tank with Fender

$569.99

$

Usually ships in 4-7 days

0

3

Bad Boy 066-8076-00

Diesel Fuel Cap

$34.99

$

In Stock, only 3 left!

0

4

Bad Boy 083-4014-00

Hourmeter-Diesel

$66.99

$

Usually ships in 4-7 days

0

5

Bad Boy 079-3402-00

Control Panel (Left)

$24.99

$

Usually ships in 0 days

0

6

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

7

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

8

Bad Boy 018-5301-00

10mm x 32 x 1" Bolt

$1.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-5015-00

5/16" x 1" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

10

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 019-8044-00

1 5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

12

Bad Boy 031-2011-00

Right Fuel Tank Support

$63.99

$

Usually ships in 0 days

0

13

Bad Boy 067-3001-00

Right Fuel Tank with Fender

$232.99

$

Usually ships in 4-7 days

0

14

Bad Boy 079-3403-00

Diesel Control Panel (Right)

$18.99

$

Usually ships in 0 days

0

15

Bad Boy 086-5001-00

Oil Guage

$193.99

$

Usually ships in 4-7 days

0

16

Bad Boy 086-5000-00

Temperature Guage

$141.99

$

Usually ships in 4-7 days

0

17

Bad Boy 089-1000-00

Oil Light

$13.99

$

Usually ships in 4-7 days

0

18

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

19

Bad Boy 078-8077-00

Deck Lift Joystick

$45.99

$

Usually ships in 4-7 days

0

20

Bad Boy 014-8077-00

Joystick Cover

$12.99

$

Usually ships in 4-7 days

0
