AOS Diesel - Bad Boy Zero-Turn Mower (2010) Diesel Pump Plate Parts Diagram

Zero-Turn Mower

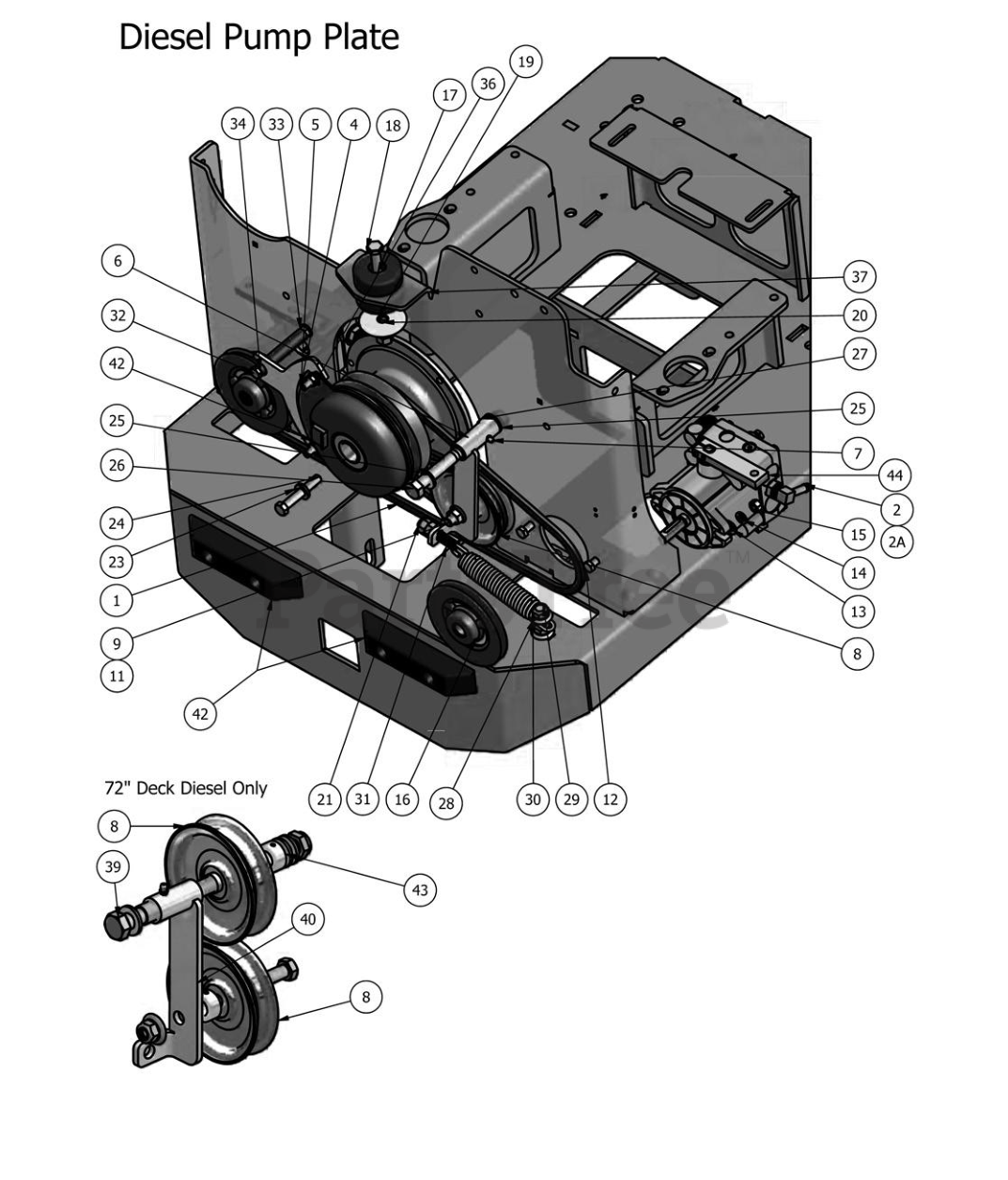

Diesel Pump Plate Parts Diagram

  • Title

1

Bad Boy 041-8411-00

Pump Belt, 72" Deck

$68.99

$

In Stock, Qty 9

0

1A

Bad Boy 041-5048-00

Pump Belt, 60" Deck

$64.99

$

In Stock, Qty 14

0

2

Bad Boy 050-5308-00

Hydraulic Pump Left

$1025.99

$

Usually ships in 4-7 days

0

2A

Bad Boy 050-5407-00

Hydraulic Pump Right

$1139.99

$

Usually ships in 4-7 days

0

3

Bad Boy 070-5040-00

Diesel Clutch

$454.99

$

In Stock, only 2 left!

0

4

Bad Boy 057-5910-10

Diesel PTO Engager Holder

$24.99

$

Usually ships in 4-7 days

0

5

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

6

Bad Boy 039-5944-00

Pump Idler Bracket (60 Only)

$45.99

$

In Stock, Qty 5

0

7

Bad Boy 024-6034-00

1/4" Drive-in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

9

Bad Boy 018-5049-00

1/2" x 2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

10

Bad Boy 032-6033-00

5/8" x 1 1/8" Brass Bushing

$3.99

$

In Stock, only 2 left!

0

11

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

12

Bad Boy 018-6012-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

13

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

15

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

16

Bad Boy 033-5011-00

5" Pump Pulley

$37.99

$

In Stock, Qty 12

0

17

Bad Boy 032-4000-00

Rubber Isolator

$81.99

$

Usually ships in 4-7 days

0

18

Bad Boy 018-7016-00

1/2" x 3" Bolt

$1.99

$

In Stock, Qty 5

0

19

Bad Boy 019-2040-00

1/2" Flat Washer

$1.99

$

Usually ships in 4-7 days

0

20

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

21

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

22

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

23

Bad Boy 019-8053-00

7/16" Lock Washer

$3.49

$

Usually ships in 4-7 days

0

24

Bad Boy 018-5401-00

7/16" x 2 3/4" Fine Thread Bolt

$2.49

$

Usually ships in 4-7 days

0

25

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

26

Bad Boy 018-5312-00

5/8" x 4 1/2" Hex Bolt

$

$

Not available

27

Bad Boy 025-7036-00

1/2" Collar Spacer

$4.99

$

In Stock, only 2 left!

0

28

Bad Boy 034-5039-00

6" Pump Idler Spring

$

$

Not available

29

Bad Boy 018-1050-00

1/2" x 2" Carriage Bolt

$1.99

$

In Stock, only 1 left!

0

30

Bad Boy 013-8050-00

1/2" Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

31

Bad Boy 018-2004-00

1/2" x 2 1/2" All Thd Stud

$13.99

$

In Stock, only 4 left!

0

32

Bad Boy 018-2005-00

3/8" x 4 1/2" Bolt

$2.99

$

Usually ships in 4-7 days

0

33

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

34

Bad Boy 051-8067-00

Rubber Spacer

$6.99

$

In Stock, only 3 left!

0

35

Bad Boy 017-3000-00

Stub Shaft

$262.99

$

Usually ships in 4-7 days

0

36

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

37

Bad Boy 026-8030-00

Pump Plate Diesel

$113.99

$

Usually ships in 0 days

0

38

Bad Boy 033-4050-00

5" Idler Pulley

$40.99

$

In Stock, only 2 left!

0

39

Bad Boy 018-6016-00

5/8" x 5 1/2" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

40

Bad Boy 039-5945-00

Diesel Pump Idler (72 Only)

$34.99

$

Usually ships in 4-7 days

0

41

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

42

Bad Boy 029-7038-00

8" Rubber Bumper

$30.99

$

Usually ships in 4-7 days

0

43

Bad Boy 025-7020-00

5/8" Set Collar

$4.99

$

In Stock, only 2 left!

0

44

Bad Boy 031-5923-00

Pump Arm

$32.99

$

Usually ships in 4-7 days

0
