AOS Diesel / Compact Diesel - Bad Boy Zero-Turn Mower (2011) Adjustable Drive Arm Parts Diagram

Zero-Turn Mower

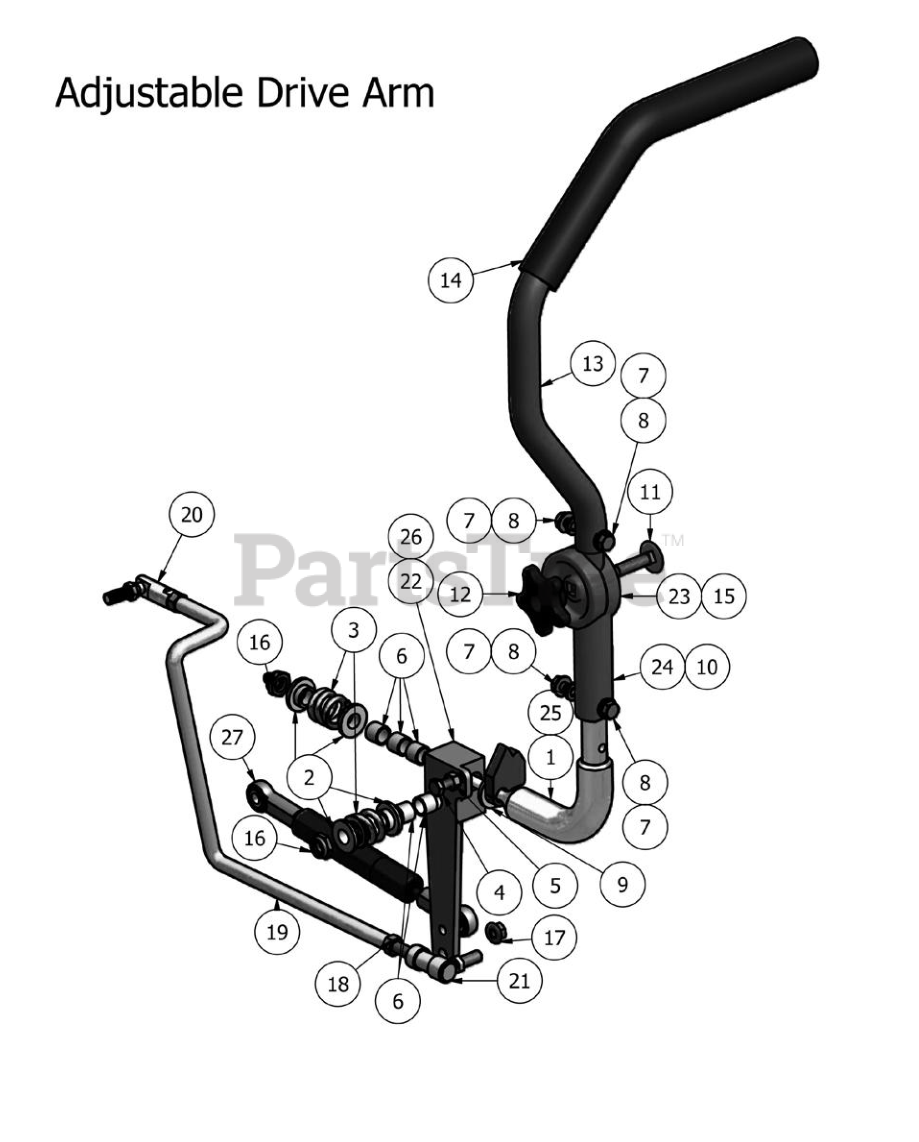

Adjustable Drive Arm Parts Diagram

  • Title

1

Bad Boy 031-9025-00

Steering Arm Base-Right

$90.99

$

Usually ships in 4-7 days

0

2

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

In Stock, only 4 left!

0

3

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

4

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 032-8024-00

.507 ID Nylon Bushing

$0.99

$

Usually ships in 4-7 days

0

7

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 018-2007-00

5/16" x 1/2" Flange Bolt

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

10

Bad Boy 031-9017-00

Upper Adjuster for Steering Arm

$

$

Not available

11

Bad Boy 018-5043-00

3/8" x 1-1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

12

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

Usually ships in 4-7 days

0

13

Bad Boy 031-9010-00

Upper Steering Arm Tubing-Adjustable

$

$

Currently unavailable

14

Bad Boy 069-4010-00

Black Steering Grips

$8.49

$

In Stock, Qty 17

0

15

Bad Boy 031-9015-00

Lower Adjuster for Steering Arm

$

$

Not available

16

Bad Boy 013-6037-00

1/2" Nylock Nut

$1.49

$

Usually ships in 4-7 days

0

17

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0

18

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

19

Bad Boy 035-6050-00

Push Rod for Diesel Left & Right

$43.99

$

Usually ships in 4-7 days

0

20

Bad Boy 099-6046-00

3/8-24 Ball joint (female/male)

$13.99

$

In Stock, only 4 left!

0

21

Bad Boy 099-2009-00

3/8-24 Quick Release Ball Joint

$10.99

$

In Stock, only 2 left!

0

22

Bad Boy 027-8819-00

Drive Arm Lever Housing (Left)

$49.99

$

Usually ships in 4-7 days

0

23

Bad Boy 031-9015-00

Lower Adjuster for Steering Arm Right

$

$

Not available

24

Bad Boy 031-9016-00

Upper Adjuster for Steering Arm Right

$

$

Not available

25

031-9020-00

Steering Arm Base-Left

$

$

Not available

26

Bad Boy 027-8820-00

Drive Arm Lever Housing (Right)

$49.99

$

Usually ships in 4-7 days

0
