AOS Diesel / Compact Diesel - Bad Boy Zero-Turn Mower (2011) Diesel Engine, 28hp 3-Cylinder Parts Diagram

Zero-Turn Mower

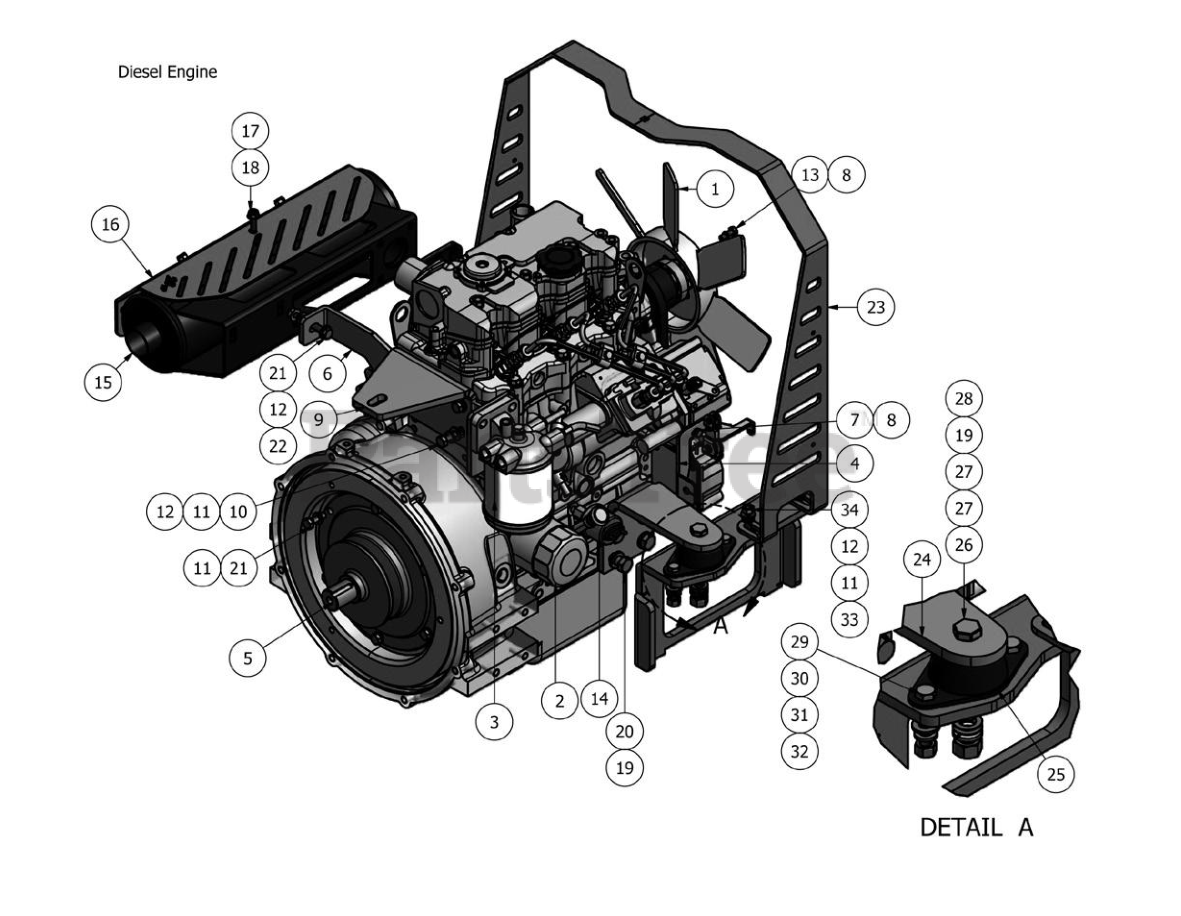

Diesel Engine, 28hp 3-Cylinder Parts Diagram

  • Title

1

Bad Boy 015-6050-00

Diesel Fan

$231.99

$

Usually ships in 4-7 days

0

2

Bad Boy 063-2010-00

Cat Oil Filter

$45.99

$

In Stock, only 3 left!

0

3

Bad Boy 063-2011-00

Fuel Filter

$31.99

$

In Stock, only 1 left!

0

4

Bad Boy 039-1010-00

Diesel Throttle Bracket (4 Tier)

$5.99

$

Usually ships in 4-7 days

0

5

Bad Boy 017-3000-00

Stub Shaft

$262.99

$

Usually ships in 4-7 days

0

6

Bad Boy 039-1020-00

Diesel Muffler Hanger Bracket

$

$

Currently unavailable

7

Bad Boy 018-2002-00

6 mm x 10 mm Hex Bolt

$

$

Currently unavailable

8

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, only 4 left!

0

9

Bad Boy 201-8005-00

Rear Motor Mount for Diesel

$45.99

$

Usually ships in 0 days

0

10

Bad Boy 018-2010-00

10-32 x 3/8 Button Head

$0.99

$

In Stock, only 4 left!

0

11

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

13

Bad Boy 018-2000-00

6mm x 20mm Bolt

$0.99

$

Usually ships in 4-7 days

0

14

Bad Boy 086-5001-00

Oil Pressure Guage with Sender

$193.99

$

Usually ships in 4-7 days

0

15

Bad Boy 015-0005-00

Diesel Muffler

$

$

Not available

16

Bad Boy 043-1010-00

Diesel Muffler Guard (28hp)

$24.99

$

Usually ships in 4-7 days

0

17

Bad Boy 030-8000-00

1/4" x 3/4" Set Screw

$3.49

$

Usually ships in 4-7 days

0

18

Bad Boy 013-9001-00

1/4" Flange Nut

$0.99

$

In Stock, only 2 left!

0

19

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

20

Bad Boy 018-6022-00

12mm Bolt- Diesel

$3.49

$

Usually ships in 4-7 days

0

21

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

22

Bad Boy 013-8049-00

5/16-18 Nylock Flange Nut

$0.99

$

Usually ships in 4-7 days

0

23

Bad Boy 201-8001-00

Hood Holder Diesel

$

$

Not available

24

Bad Boy 201-8008-00

Diesel Motor Side Support (Right)

$33.99

$

Usually ships in 4-7 days

0

25

Bad Boy 032-4050-00

Rubber Isolator

$81.99

$

Usually ships in 4-7 days

0

26

Bad Boy 018-7016-00

1/2" x 3" Hex Bolt

$1.99

$

In Stock, Qty 5

0

27

Bad Boy 019-5010-00

1/2" Brass Washer

$2.99

$

Usually ships in 4-7 days

0

28

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

29

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

30

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 1 left!

0

31

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

32

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

33

Bad Boy 018-5025-00

5/16" x 1 1/4" Hex Bolt

$

$

Currently unavailable

34

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

35

Bad Boy 201-8009-00

Diesel Motor Side Support (Left)

$33.99

$

Usually ships in 4-7 days

0
