AP 125 (UT-01704) - Homelite Pump Engine & Peripherals Parts Diagram

Pump

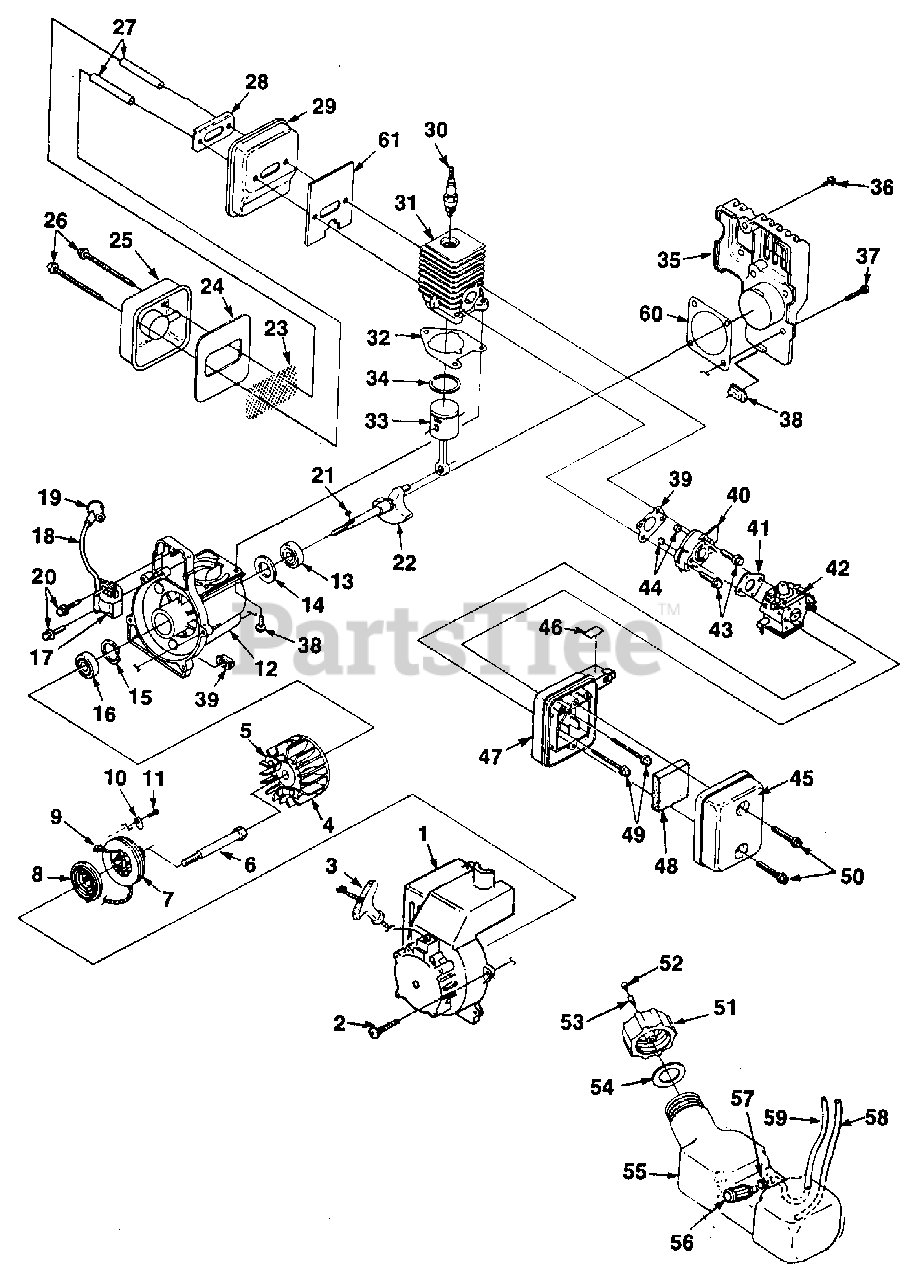

Engine & Peripherals Parts Diagram

  • Title

1

Homelite A02576

ENGINE HOUSING & DECAL KIT

$

$

Currently unavailable

2

Homelite 82549

SCREW- (10-24 x 1")
(Superseded to 82507)

$

$

Not available

3

Homelite 70211

GRIP- Starter
(Superseded to UP03832)

$

$

Not available

4

Homelite A95007

ROTOR
(Superseded to UP04242)

$

$

Not available

5

Homelite A70285E

STARTER PAWL KIT

$59.99

$

Usually ships in 3-7 days

0

6

Homelite 02041

EXTENSION SHAFT
(Superseded to UP05519)

$

$

Not available

7

Homelite 98770

PULLEY- Starter
(Superseded to 98770A)

$1.99

$

In Stock, Qty 5

0

8

Homelite A98773

SPRING & CONTAINER

$

$

Currently unavailable

9

Homelite 00715

ROPE- Starter
(Superseded to 900849002)

$1.49

$

In Stock, Qty 6

0

10

Homelite 98791

BRACKET- Retaining

$

$

Not available

11

Homelite 82541

SCREW- Plastite (10 x 1/2")

$1.49

$

In Stock, Qty 5

0

12

Homelite A00107

CRANKCASE ASSY.

$

$

Currently unavailable

13

Homelite 98797

BALL BEARING

$

$

Not available

14

Homelite 98800

SEAL

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 98799

RING- Retaining

$2.99

$

In Stock, only 1 left!

0

16

Homelite 98798

BALL BEARING
(Superseded to UP05589)

$8.49

$

Usually ships in 3-7 days

0

17

Homelite 94711BS

MODULE- Ignition
(Superseded to UP03903)

$

$

Not available

18

Homelite 69326

LEAD- Hi tension

$

$

Not available

19

Homelite A33055

TERMINAL- Hi tension

$

$

Not available

20

Homelite 82540

SCREW- Taptite (8-32 x 1")

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 69250

KEY- Woodruff

$

$

Not available

22

Homelite 987583

CRANKSHAFT

$

$

Currently unavailable

23

Homelite 98784A

SCREEN- Spark

$

$

Currently unavailable

24

Homelite 98782

BAFFLE- Muffler
(Superseded to UP05878)

$2.99

$

Usually ships in 3-7 days

0

25

Homelite A98780

MUFFLER- Cover
(Superseded to A04786)

$

$

Not available

26

Homelite 88060

SCREW- Sems hex hd.
(Superseded to 660673001)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 98860A

SPACER- Muffler
(Superseded to 04785)

$

$

Not available

28

Homelite 98783

PLATE- Reinforcing

$

$

Not available

29

Homelite A01323

MUFFLER BODY
(Superseded to A04837)

$

$

Not available

30

Homelite 96169S

SPARK PLUG (Champion DJ7Y)
(Superseded to UP03883)

$3.49

$

In Stock, only 1 left!

0

31

Homelite A00108

CYLINDER
(Superseded to UP07145A)

$43.99

$

In Stock, only 1 left!

0

32

Homelite 98764

GASKET- Cylinder
(Superseded to 900953001)

$

$

Not available

33

Homelite A01036A

PISTON & ROD ASSY.

$

$

Currently unavailable

34

Homelite 96935

PISTON RING (Primary Source)
(Superseded to UP03838)

$

$

Not available

Homelite 969351

PISTON RING (Alternate)
(Superseded to UP03838)

$

$

Not available

35

Homelite 01023

COVER- Crankcase

$

$

Not available

36

Homelite 82541

SCREW- Taptite (10 x 1/2")

$1.49

$

In Stock, Qty 5

0

37

Homelite 82538

SCREW- Taptite (10-24 x 3/4")

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 98792

BUMPER- Rubber

$1.49

$

In Stock, only 3 left!

0

39

Homelite 98765B

HEAT DAM GASKET

$4.99

$

Usually ships in 3-7 days

0

40

Homelite 98768

HEAT DAM
(Superseded to 98768A)

$

$

Not available

41

Homelite 98766A

CARBURETOR GASKET
(Superseded to 900994004)

$

$

Not available

42

Homelite A02893

CARBURETOR (Zama)

$

$

Currently unavailable

Homelite A02892

CARBURETOR (Walbro WT179)
(Superseded to A04331A)

$

$

Not available

43

Homelite 82549

SCREW- Taptite (10-24 x 1")
(Superseded to 82507)

$

$

Not available

44

Homelite 81208

NUT (10-24)

$

$

Not available

45

Homelite A01440

AIR FILTER BOX & COVER

$

$

Currently unavailable

46

Homelite 00772

DECAL- Choke

$

$

Not available

47

Homelite A04449

AIR FILTER BOX
(Superseded to A04707A)

$

$

Not available

48

Homelite B98760

AIR FILTER

$

$

Not available

49

Homelite 82542

SCREW- Taptite (10-24 x 2 1/4")

$2.99

$

Usually ships in 3-7 days

0

50

Homelite 82536

SCREW- Plastite (8 x 3/4")

$

$

Not available

51

Homelite A00982

FUEL CAP ASSY.

$

$

Currently unavailable

52

Homelite 98913

CAP- Filter
(Superseded to PS98913)

$2.99

$

Usually ships in 3-7 days

0

53

Homelite 98819

VALVE- Filter

$

$

Not available

54

Homelite 98805

GASKET- Fuel cap
(Superseded to UP07294)

$

$

Not available

55

Homelite A01441

FUEL TANK ASSY.

$

$

Currently unavailable

56

Homelite 49422

FILTER- Fuel
(Superseded to PS03380)

$

$

Not available

57

Homelite 98268

CLAMP- Wire
(Superseded to 690765001)

$1.49

$

In Stock, Qty 6

0

58

Homelite 9477232

TUBING- Rubber
(Superseded to UP03905)

$

$

Not available

59

Homelite 0143932

TUBING- Rubber (6.25")
(Superseded to UP03825)

$2.99

$

In Stock, only 4 left!

0

60

Homelite 98767A

GASKET- Crankcase

$

$

Not available

61

Homelite 98786A

GASKET- Muffler

$

$

Currently unavailable
