AP 125 (UT-01704) - Homelite Pump Pump Assy. Parts Diagram

Pump

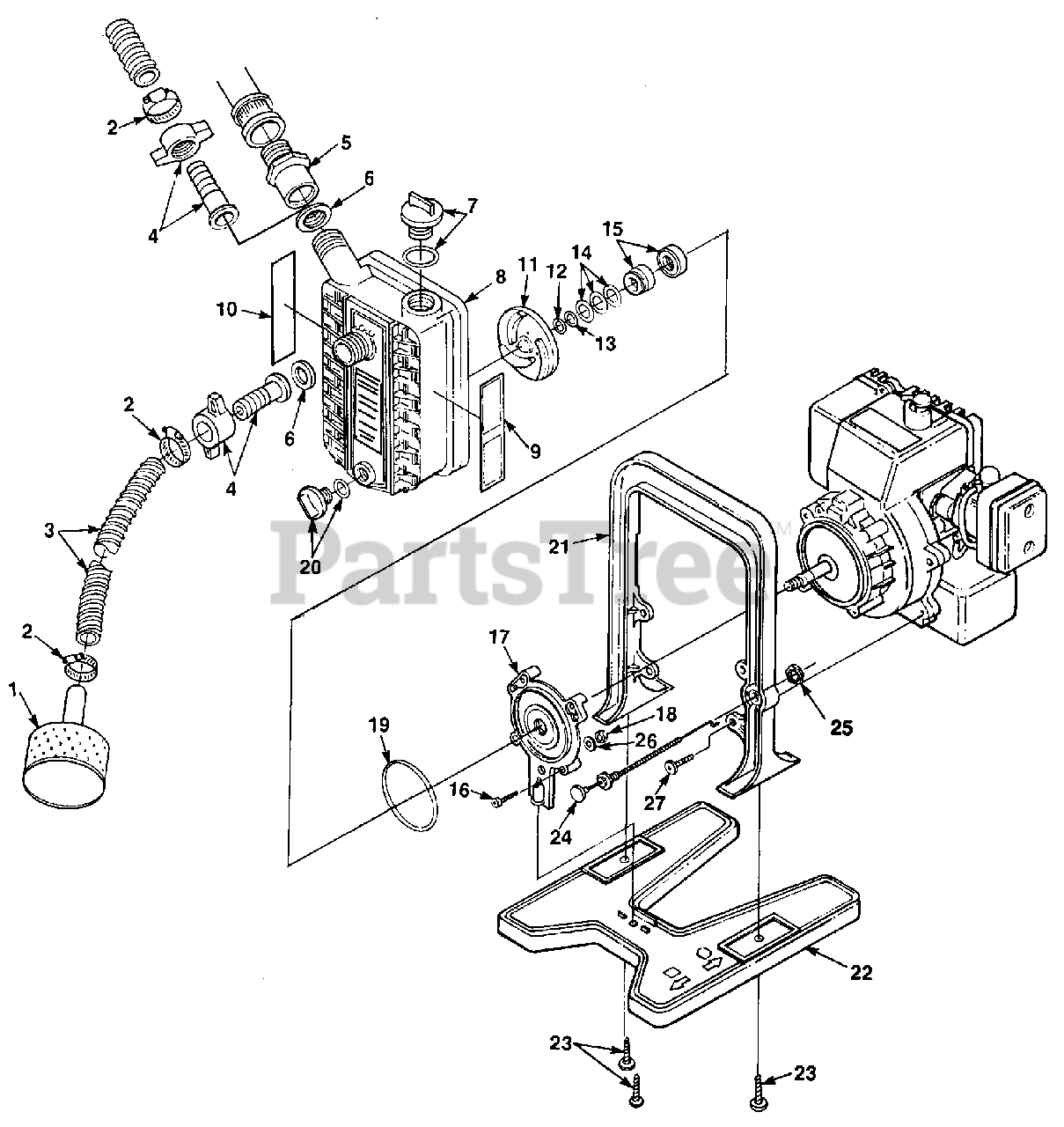

Pump Assy. Parts Diagram

  • Title

1

Homelite 02713

STRAINER (1")
(Superseded to UP05518)

$

$

Not available

2

Homelite 49956

CLAMP

$

$

Not available

3

Homelite 4846101

HOSE (1")
(Superseded to UP05539)

$

$

Not available

4

Homelite A02919

BARBED COUPLING
(Superseded to UP05545)

$14.99

$

Usually ships in 3-7 days

0

5

Homelite 02728

ADAPTOR- Garden Hose
(Superseded to UP05523)

$

$

Not available

6

Homelite 02988

GASKET

$

$

Not available

7

Homelite 02924

CAP w/O-RING
(Superseded to UP05527)

$13.99

$

Usually ships in 3-7 days

0

8

Homelite A03055

PUMP BODY & DECALS
(Superseded to UP05532)

$

$

Not available

9

Homelite 02715

DECAL- Operating

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 02714

DECAL- Warning

$

$

Not available

11

Homelite 02926

IMPELLER

$

$

Not available

12

Homelite 02931

SHIM- (.030) (Impeller)
(Superseded to UP05535)

$

$

Not available

13

Homelite 02932

SHIM- (.015) (Impeller)
(Superseded to UP05536)

$

$

Not available

14

Homelite 02933

SHIM- (.030) (Seal)

$

$

Not available

15

Homelite 02927

SEAL

$

$

Not available

16

Homelite 82562

SCREW- (10-24 x 7/8")
(Superseded to UP06535)

$

$

Not available

17

Homelite 02732

ADAPTOR- (Engine to Pump)
(Superseded to UP05526)

$

$

Not available

18

Homelite 02930

NUT- (m5)

$

$

Not available

19

Homelite 02928

O-Ring
(Superseded to UP05531)

$

$

Not available

20

Homelite 02925

CAP- w/O-Ring
(Superseded to UP05528)

$

$

Not available

21

Homelite 02730

HANDLE- Engine mtg.

$

$

Not available

22

Homelite 02731

BASE PLATE
(Superseded to UP05525)

$

$

Not available

23

Homelite 82563

SCREW- (10-14 x 3/4")

$1.49

$

In Stock, Qty 6

0

24

Homelite 02917

THROTTLE

$

$

Currently unavailable

25

Homelite 81124A

NUT-Throttle

$

$

Not available

26

Homelite 02929

WASHER

$

$

Not available

27

Homelite 82549

SCREW- (10-24 x 1.0")
(Superseded to 82507)

$

$

Not available

Homelite 48572

SUCKER, Puddle

$

$

Not available

Homelite 48814

COUPLING, Male

$

$

Not available
