AP 125 (UT-01704) - Homelite Pump Walbro Carburetor Parts Diagram

Pump

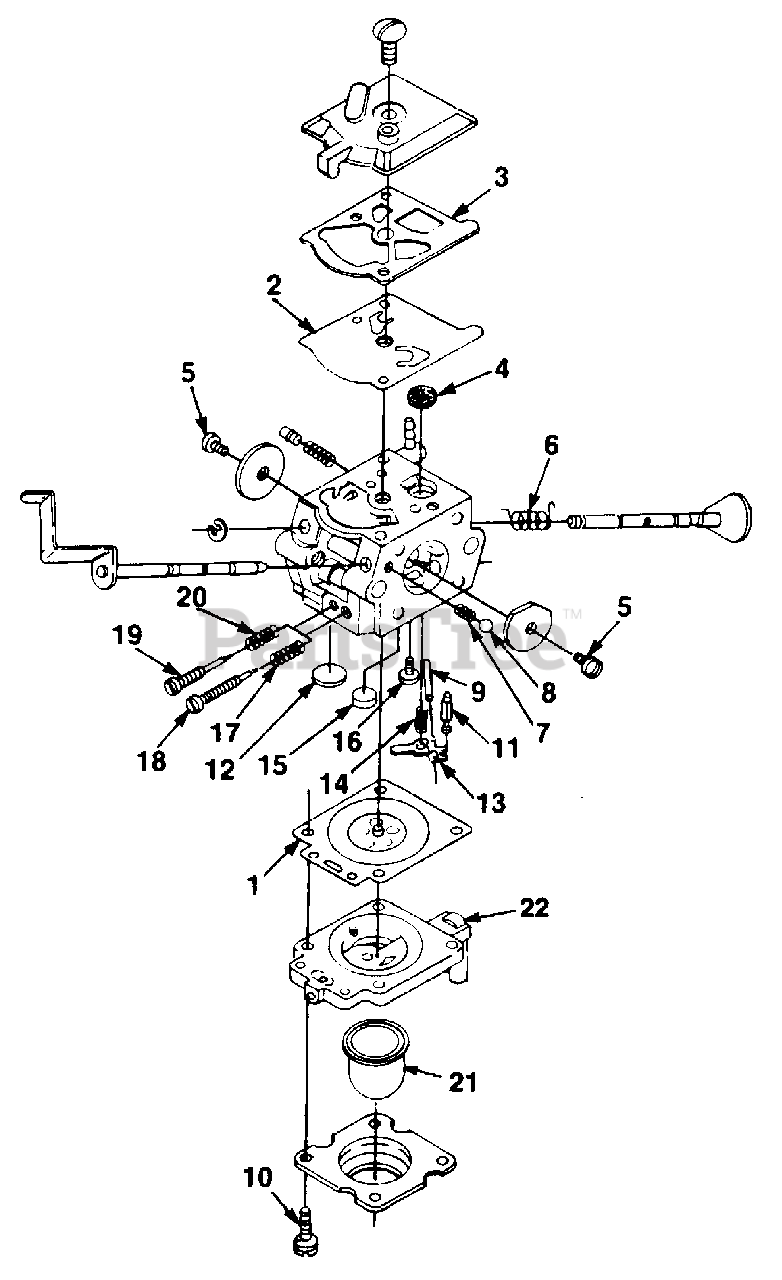

Walbro Carburetor Parts Diagram

  • Title

1

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

Homelite A00285

Gasket Kit (1-3)

$

$

Currently unavailable

2

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

Homelite A00285

Gasket Kit (1-3)

$

$

Currently unavailable

3

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

Homelite A00285

Gasket Kit (1-3)

$

$

Currently unavailable

4

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

5

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

6

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

7

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

8

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

9

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

10

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

11

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

12

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

13

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

14

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

15

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

16

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

17

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

18

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

19

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

20

Homelite A02895

REPAIR KIT (1-20)

$

$

Not available

21

Homelite 01201

PRIMER BULB (21)
(Superseded to UP04802)

$4.99

$

In Stock, Qty 5

0

22

Homelite A01199

PRIMER BASE (22)

$

$

Currently unavailable
